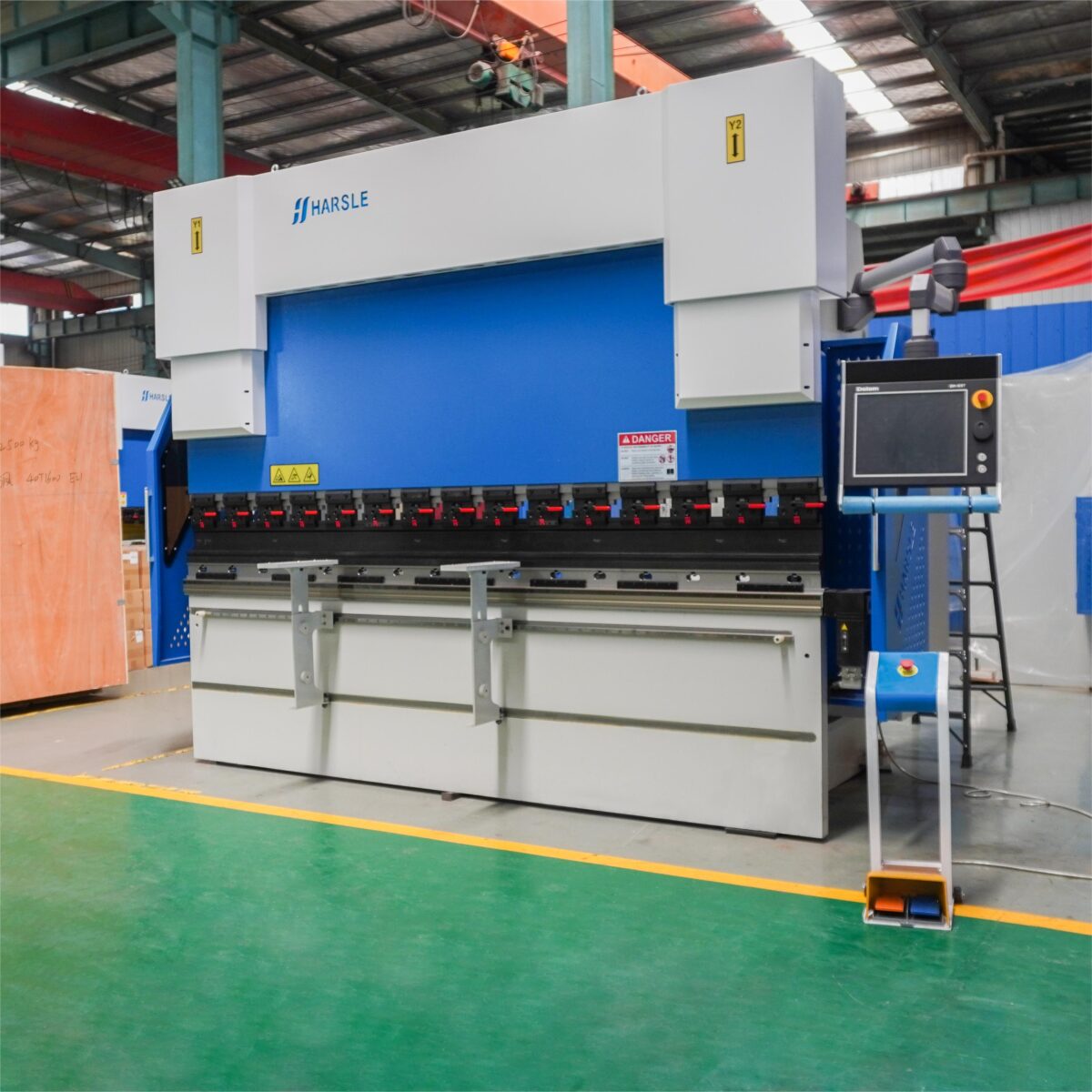

Used HARSLE WE67K-160T3200 Metal Press Brake With DA69T For Sale

A HARSLE WE67K-160T3200 Metal Press Brake is a machine tool used in metalworking to bend sheet metal and plate materials. It employs a mechanical or hydraulic system to exert force on a workpiece, causing it to deform and form predetermined shapes, angles, or bends. Press brakes are essential in various industries such as manufacturing, construction, automotive, aerospace, and more.

Here’s a more detailed description of the components and operation of a typical press brake:

1. 액자: The frame provides structural support for the machine and houses the various components.
2. 침대: The bed is the flat surface where the lower die, or tooling, is mounted. It supports the workpiece during bending.
3. 숫양: The ram, or upper beam, moves vertically and applies downward force onto the workpiece. It holds the upper die, which forms the desired bend shape.

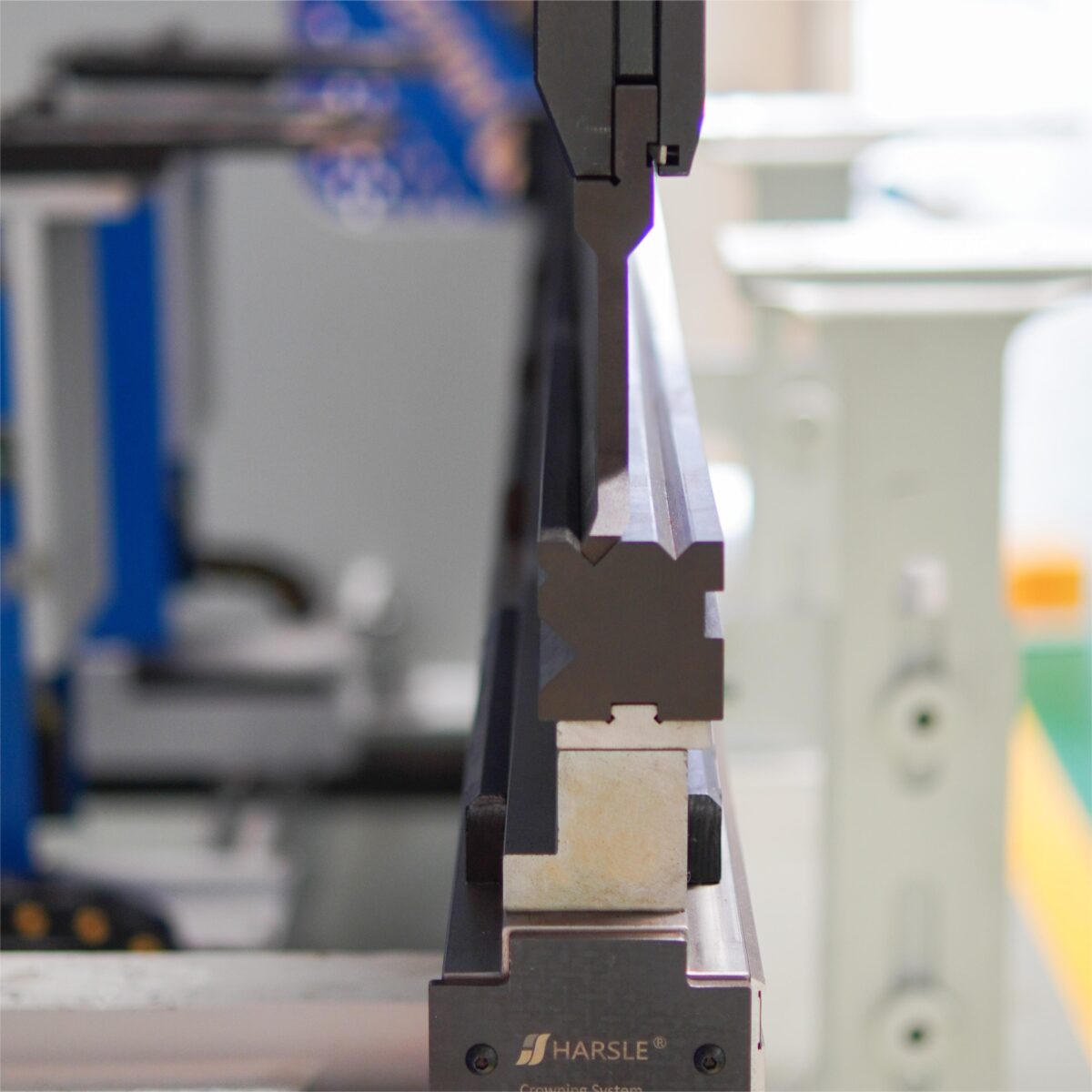

4. Die: The die consists of upper and lower tooling. The upper die, mounted on the ram, and the lower die, mounted on the bed, work together to shape the material during bending.
5. 백게이지: Some HARSLE WE67K-160T3200 Metal Press Brakes feature a backgauge system, which helps position the workpiece accurately for consistent bends.
6. 유압 시스템: In hydraulic press brakes, hydraulic cylinders or pistons provide the force needed to bend the material. The hydraulic system controls the speed, pressure, and timing of the bending process.
7. 통제 수단: Modern HARSLE WE67K-160T3200 Metal Press Brakes are equipped with control systems that allow operators to input bending parameters such as bend angle, bend length, and material thickness. CNC (Computer Numerical Control) press brakes offer advanced automation and precision.

HARSLE WE67K-160T3200 Metal Press Brakes come in various sizes and configurations to accommodate different bending requirements, from small, manual machines to large, CNC-controlled models capable of bending thick and large-sized materials. They play a critical role in metal fabrication processes, enabling the production of components for a wide range of applications.
