Lathe

Operating a lathe involves securing the workpiece in the chuck or collet, selecting appropriate cutting tools, setting cutting speeds and feeds, and using handwheels or CNC controls to position the cutting tool relative to the workpiece. Proper training and adherence to safety protocols are essential for safe lathe operation.

Choosing the right lathe for your machining needs involves considering several factors to ensure it meets your specific requirements and preferences. Here’s a step-by-step guide on how to choose a lathe:

Define Your Machining Needs:

Determine the types of machining operations you’ll be performing with the lathe, such as turning, facing, drilling, threading, or tapering. Consider the size, material, and complexity of the workpieces you’ll be machining.
Consider Workpiece Size and Weight:

Evaluate the size and weight of the workpieces you’ll be machining to ensure they can be accommodated by the lathe. Consider factors such as swing over bed, distance between centers, and maximum workpiece diameter and length.
Choose the Right Lathe Type:

Select a lathe type that best suits your machining requirements. Common lathe types include:

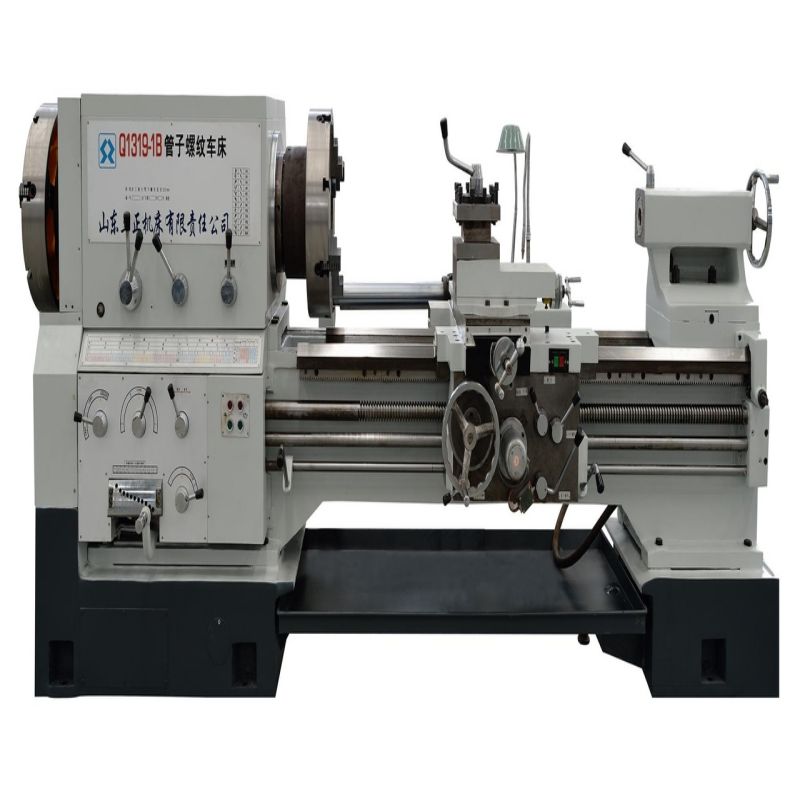

Engine Lathes: Versatile machines suitable for general-purpose turning operations.

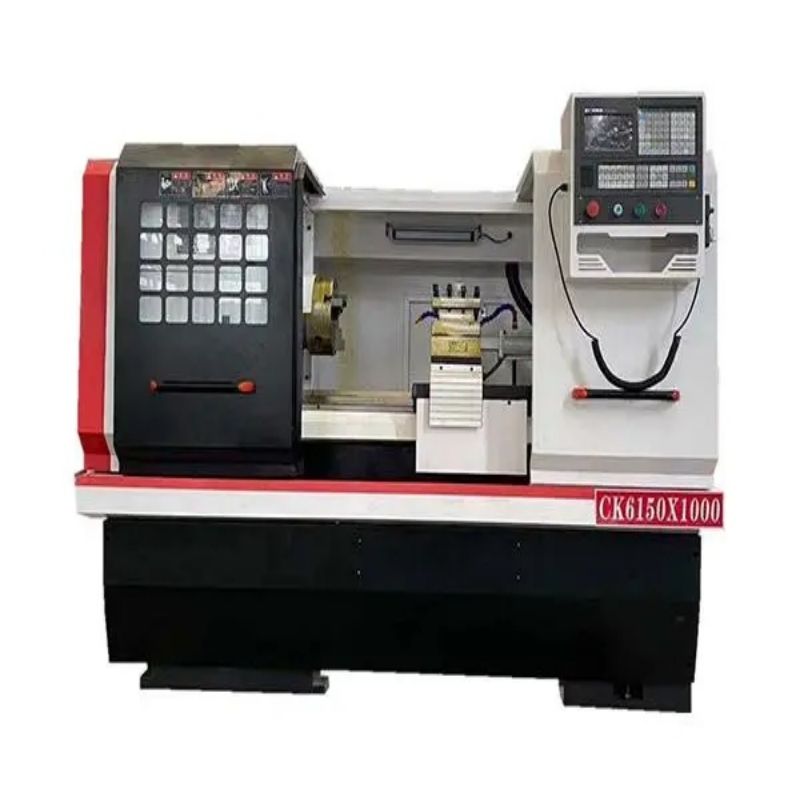

CNC Lathes: Computer-controlled lathes offering precision and automation capabilities for complex machining tasks.
Turret Lathes: Multi-tool lathes with a turret for rapid tool changes, ideal for high-volume production.

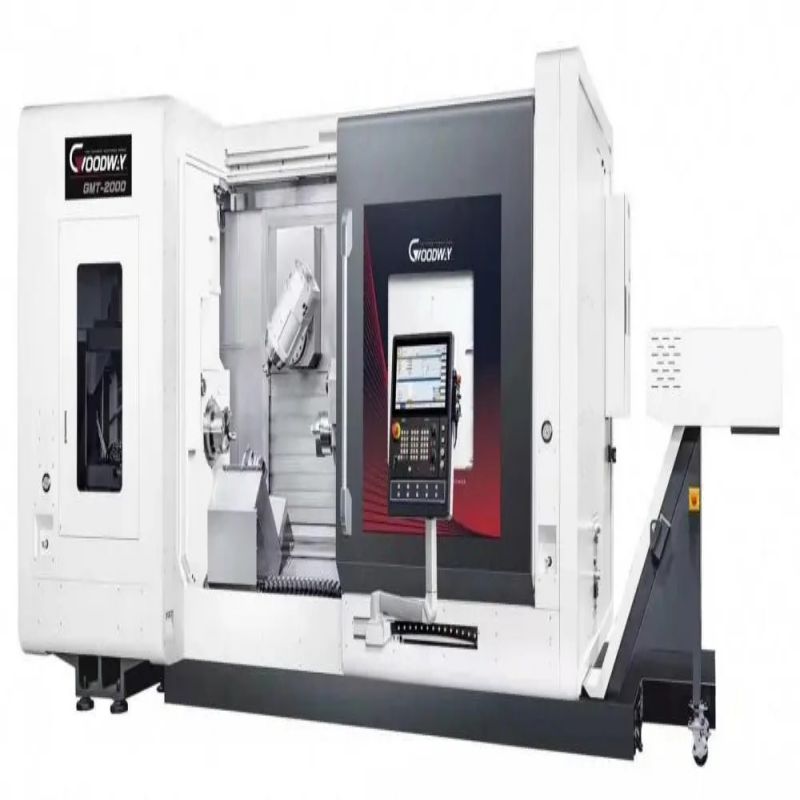

Combination Lathes: Lathes equipped with additional features such as milling, drilling, and grinding capabilities.
Evaluate Precision and Accuracy:

Assess the lathe’s precision and accuracy specifications, including spindle runout, positional accuracy, and repeatability. Choose a lathe with tight tolerances and minimal deviation for precise machining results.
Consider Speed and Feed Options:

Evaluate the lathe’s speed and feed capabilities to ensure they match your machining requirements. Consider factors such as spindle speed range, feed rates, and threading capabilities for optimal performance.
Review Machine Features and Options:

Look for additional features and options that enhance the lathe’s versatility and functionality. This may include:
Digital readouts (DROs) for accurate positioning and measurement.
Tooling options such as quick-change toolposts and indexable toolholders.
Coolant systems for chip removal and heat dissipation.
Thread-cutting capabilities for producing threads of various sizes and pitches.
Assess Machine Construction and Durability:

Evaluate the lathe’s construction, materials, and build quality to ensure durability and long-term reliability. Look for features such as cast iron construction, precision-ground beds, and robust components for stable and vibration-free operation.
Consider Budget and Cost of Ownership:

Determine your budget for purchasing and operating the lathe, taking into account initial purchase price, maintenance costs, tooling expenses, and energy consumption. Consider the total cost of ownership (TCO) over the machine’s lifespan to make an informed decision.
Seek Expert Advice and Reviews:

Consult with machining experts, experienced operators, and industry peers to gather insights and recommendations on choosing the right lathe. Read reviews, testimonials, and user feedback to learn about other users’ experiences with specific lathe models and brands.
By following these steps and considering your specific machining needs, preferences, and budget constraints, you can choose a lathe that meets your requirements and helps you achieve precision machining results efficiently.

A lathe works by rotating a workpiece on its axis while various cutting tools are applied to remove material and shape the workpiece to the desired dimensions and surface finish. Here’s an overview of how a lathe operates:

Workpiece Mounting: The workpiece is mounted securely between the lathe’s chuck or collet and tailstock, ensuring it is centered and aligned with the lathe’s axis of rotation. The chuck or collet grips the workpiece firmly to prevent slippage during machining.

Tool Setup: Cutting tools such as turning tools, boring bars, drills, and threading tools are mounted on the lathe’s toolpost or turret. The tools are selected based on the machining operation to be performed and positioned at the appropriate angles relative to the workpiece.

Rotational Motion: The lathe’s spindle rotates the workpiece at a controlled speed determined by the operator or CNC program. The rotational motion of the workpiece allows the cutting tools to engage with the material and remove material from the workpiece’s surface.

Feed Motion: The cutting tools are fed into the rotating workpiece to remove material and create desired shapes and features. Feed motion can be controlled manually by the operator using handwheels or automatically using CNC programming.

Cutting Operations: As the cutting tools engage with the workpiece, they remove material by shearing, scraping, or shaving it away. Turning tools create cylindrical shapes by removing material along the workpiece’s length, while other tools perform operations such as facing, drilling, boring, threading, and grooving.

Finish Passes: After rough machining the workpiece to near-final dimensions, finish passes are performed using finer cutting tools or by adjusting the cutting parameters to achieve the desired surface finish and dimensional accuracy.

Coolant and Chip Removal: Coolant may be applied to the cutting area to lubricate the cutting tools, dissipate heat, and flush away chips and debris generated during machining. Chip conveyors or chip trays collect the chips for disposal or recycling.

Measuring and Inspection: Periodic measurements and inspections may be performed using precision measuring tools such as calipers, micrometers, and dial indicators to ensure dimensional accuracy and quality control.

Finishing Operations: Once machining is complete, secondary finishing operations such as deburring, polishing, and surface treatment may be performed to improve the workpiece’s appearance and functionality.

Workpiece Removal: After machining is finished, the workpiece is removed from the lathe and inspected for quality before being used in further assembly or manufacturing processes.

Overall, a lathe operates by rotating a workpiece and applying cutting tools to shape and finish it according to precise specifications, enabling the production of a wide range of components and parts used in various industries.

There are several reputable brands that manufacture lathes, offering a wide range of models and solutions to meet various machining needs. Some of the prominent lathe brands include:

Haas Automation: Haas is a well-known manufacturer of CNC machine tools, including CNC lathes. They offer a range of high-quality and reliable lathe models for precision machining applications.

Mazak Corporation: Mazak is a global leader in the manufacturing of CNC machine tools, including CNC turning centers. Their lathe lineup includes advanced models with innovative features for maximum productivity and accuracy.

DMG MORI: DMG MORI is a leading provider of CNC machine tools and automation solutions, offering a diverse range of lathe models for various industries and applications. Their lathes are known for their precision, reliability, and advanced technology.

Okuma Corporation: Okuma manufactures CNC machine tools, including CNC lathes, with a focus on quality, performance, and innovation. Their lathe lineup includes versatile models designed for high-precision turning operations.

Doosan Machine Tools: Doosan offers a comprehensive range of CNC machine tools, including CNC lathes, known for their robust construction, advanced features, and user-friendly operation.

Hardinge Inc.: Hardinge manufactures a wide variety of precision lathes, including CNC turning centers and manual lathes, designed for high-precision machining applications in industries such as aerospace, automotive, and medical.

Victor Machinery: Victor Machinery specializes in the manufacturing of CNC lathes and manual lathes, offering a range of models with advanced features and capabilities for efficient and accurate machining.

Hwacheon Machinery: Hwacheon produces CNC lathes and turning centers renowned for their reliability, precision, and cutting-edge technology. Their lathe lineup includes models suitable for various machining tasks and industries.

Kent USA: Kent USA offers a variety of precision lathes, including CNC turning centers and manual lathes, designed for versatility, performance, and durability.

Samsung Machine Tools: Samsung manufactures CNC lathes and turning centers known for their high-performance capabilities, advanced features, and user-friendly interfaces.

These are just a few examples of the many reputable lathe brands available in the market. When choosing a lathe, it’s essential to consider factors such as machine specifications, features, reliability, and after-sales support provided by the manufacturer or distributor.
