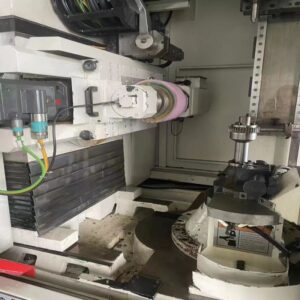

Used VIGERT Y7232CNC CNC Worm Wheel Gear Grinding Machine For Sale

A CNC Worm Wheel Gear Grinding Machine is a specialized machining tool used for the precision grinding of worm gears and worm wheels. Worm gears are used to transmit power and motion between non-intersecting, perpendicular shafts. Here’s a general description of a CNC Worm Wheel Gear Grinding Machine:

1. Gear Grinding Process: This machine is designed specifically for the grinding of worm gears and worm wheels. Worm gears have a unique helical shape that requires specialized equipment for precise machining.
2. Управление ЧПУ: The “CNC” designation indicates that the machine is equipped with a Computer Numerical Control system. CNC systems provide precise control over the grinding process, allowing for programmable and automated machining operations. It enables the creation of complex gear profiles with high precision.
3. Workpiece Handling: The machine is equipped with mechanisms for securely holding and rotating both the worm gear and the worm wheel during the grinding process. These workpieces are typically mounted on dedicated fixtures or chucks.
4. Шлифовальный круг: A specialized grinding wheel with a profile that matches the desired gear tooth shape is used in this machine. The CNC control system precisely controls the movement of the grinding wheel relative to the workpiece to achieve the desired gear geometry.
5. Высокая точность: CNC Worm Wheel Gear Grinding Machines are known for their high precision and the ability to produce worm gears with tight tolerances and excellent surface finishes. This precision is essential for ensuring the proper functioning of worm gears.
6. Feed Mechanism: The machine includes a feed mechanism that controls the movement of the grinding wheel and workpieces to achieve the correct depth of cut and gear profile.
7. Система охлаждения: Grinding generates heat, so a coolant system is often integrated to keep the workpiece and grinding wheel cool during the process. This helps prevent overheating and ensures consistent quality.
8. Приложения: CNC Worm Wheel Gear Grinding Machines are used in industries such as automotive, aerospace, and industrial machinery manufacturing, where worm gears are essential components in various mechanisms.
9. Automation Options: Depending on the manufacturer and model, these machines may offer automation options such as robotic loading and unloading systems to increase productivity and reduce manual labor.
10. Функции безопасности: Safety features, including guards, emergency stops, and interlocks, are incorporated to protect operators during machine operation.
11. Настройка: Manufacturers often provide customization options to tailor the machine’s capabilities to specific industry needs and requirements.
