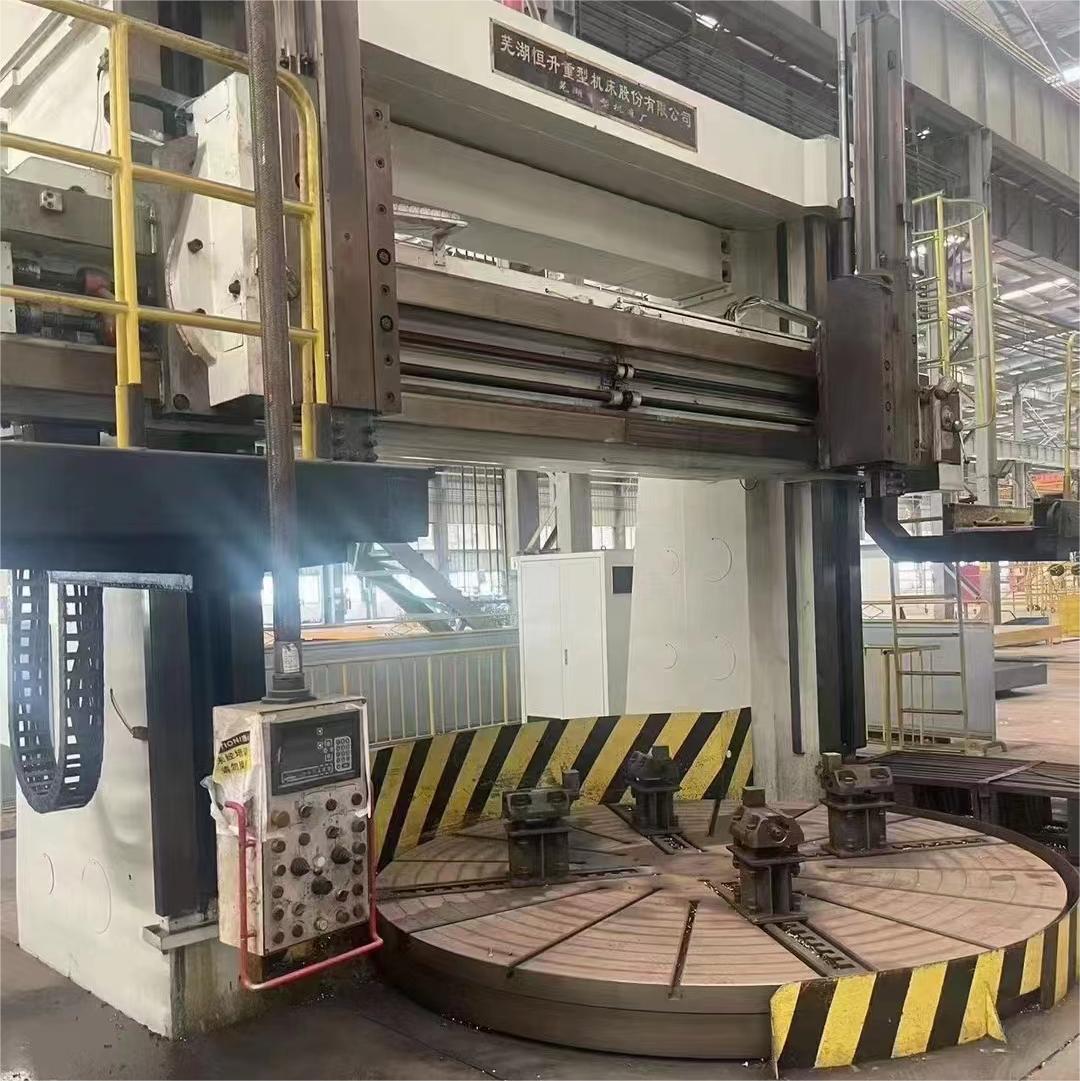

Used VIGERT CQX5240 Double Column Vertical Lathe For Professional Precision For Sale

A double column vertical lathe is a specialized and robust machine tool designed for machining large and heavy workpieces with precision and efficiency. This type of lathe features a unique double column structure that provides enhanced stability and rigidity, making it suitable for industries such as aerospace, energy, automotive, and heavy machinery manufacturing.

Key attributes and components of a double column vertical lathe include:

1. Double Column Structure: The defining feature of this lathe is its double column design, which consists of two vertical columns that support the cross rail and tooling assembly. This design ensures superior stability, minimizes vibrations, and enables the machining of large and heavy workpieces.
2. High Weight Capacity: Double column vertical lathes are engineered to handle substantial workpiece weights, making them ideal for components like turbine blades, large gears, and structural parts.
3. Large Turning Diameter: These lathes have a significant turning diameter capacity, allowing for the machining of large-diameter workpieces.
4. Cross Rail and Tooling Assembly: The cross rail spans between the two columns and holds the tooling assembly. It can move vertically, providing the necessary clearance for workpiece installation and tool changes.
5. Вертикальная ориентация шпинделя: The vertical spindle orientation is a common feature of double column vertical lathes. This design facilitates easy chip evacuation and reduces tool deflection during machining.
6. High-Power Spindle: The spindle holds the cutting tools and rotates at varying speeds. Given the large workpieces and demanding materials often encountered in this type of lathe, the spindle is equipped with a powerful motor and advanced cooling systems.
7. Tool Changer: Many double column vertical lathes incorporate automatic tool changers to facilitate efficient tool changes and reduce downtime during machining operations.
8. Precision Linear Guideways: Linear guideways are integrated into the design to ensure smooth and accurate movement of the cross rail and tooling assembly, contributing to precision and repeatability.
9. Управление ЧПУ: These lathes are equipped with advanced CNC control systems that provide precise control over the machining process. CNC capabilities allow for automated operations and complex tool paths.
10. Coolant and Chip Management: A comprehensive coolant system is essential for managing heat and prolonging tool life during heavy-duty machining. Effective chip removal solutions ensure uninterrupted machining operations.
11. Функции безопасности: Safety mechanisms, such as emergency stop buttons, protective enclosures, and interlocks, are implemented to ensure operator safety during operation.
12. Workholding Solutions: Double column vertical lathes often offer a range of workholding options, including chucks, fixtures, and specialized clamping systems, to securely position and machine workpieces.
