Gebrauchte VIGERT CK6150X1500 CNC-Drehmaschine zu verkaufen

CK6150X1500 CNC Lathe. The CK6150X1500 CNC Lathe is a specific model of computer numerical control (CNC) lathe used in machining and manufacturing processes. Let’s break down its key features and specifications:

1. Maschinentyp: The CK6150X1500 is a CNC lathe, a machine tool used for turning and shaping materials like metal or plastic. It can perform various operations such as facing, turning, drilling, threading, and more.
2. Größe und Kapazität:
   • Schwenkdurchmesser: CK6150X1500 CNC Lathe. Typically, the CK6150X1500 model has a specified maximum swing diameter over the bed, indicating the largest diameter of workpiece it can accommodate.
   • Turning Length: The “1500” in the model name suggests the maximum turning length, which is the maximum length of the workpiece that can be turned on this lathe (in this case, 1500 mm).

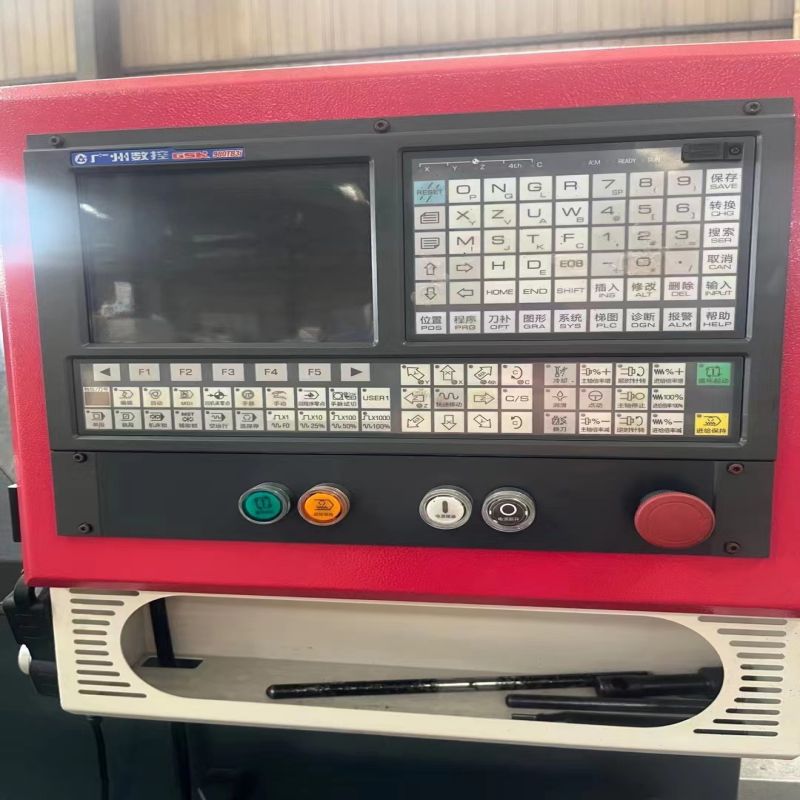

3. Kontrollsystem: The “CNC” in the model name signifies that the lathe is equipped with a computer numerical control system for precise and automated machining operations. The specific control system might vary based on the manufacturer and version.
4. Axis Configuration:
   • The CK6150X1500 likely features multiple axes for versatile machining. Commonly, these lathes have at least two main axes: X-axis for longitudinal movement and Z-axis for cross-slide movement.
   • Some models may have additional axes for enhanced functionality, such as C-axis for spindle rotation or live tooling capabilities.

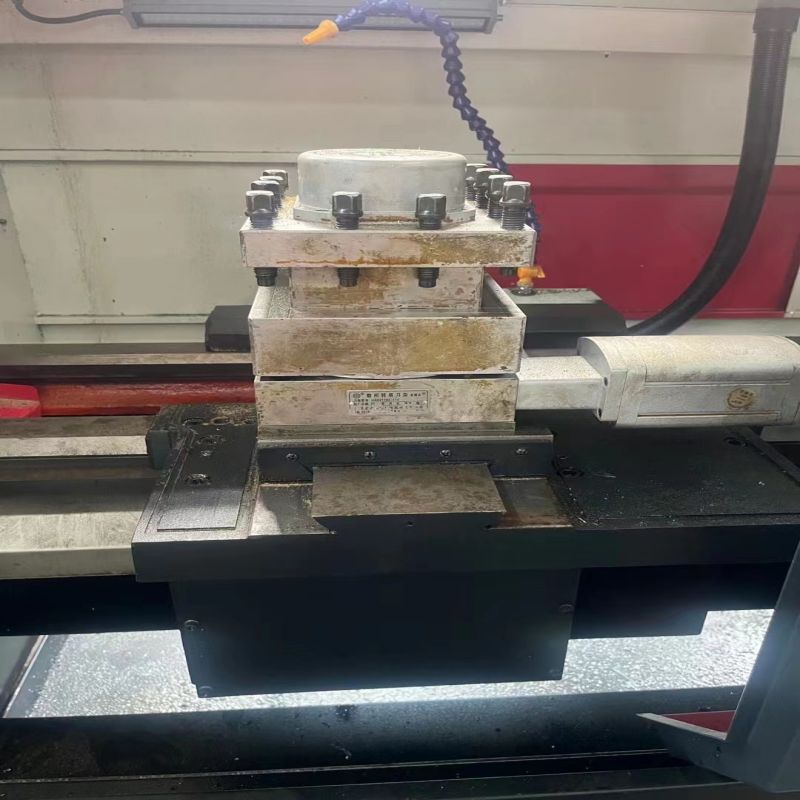

5. Tooling and Turret:
   • The lathe is equipped with a tool turret or toolpost that can hold various cutting tools. These tools can be automatically changed during the machining process using the CNC control.
   • Tooling includes turning tools, drills, and other cutting tools used for different machining operations.

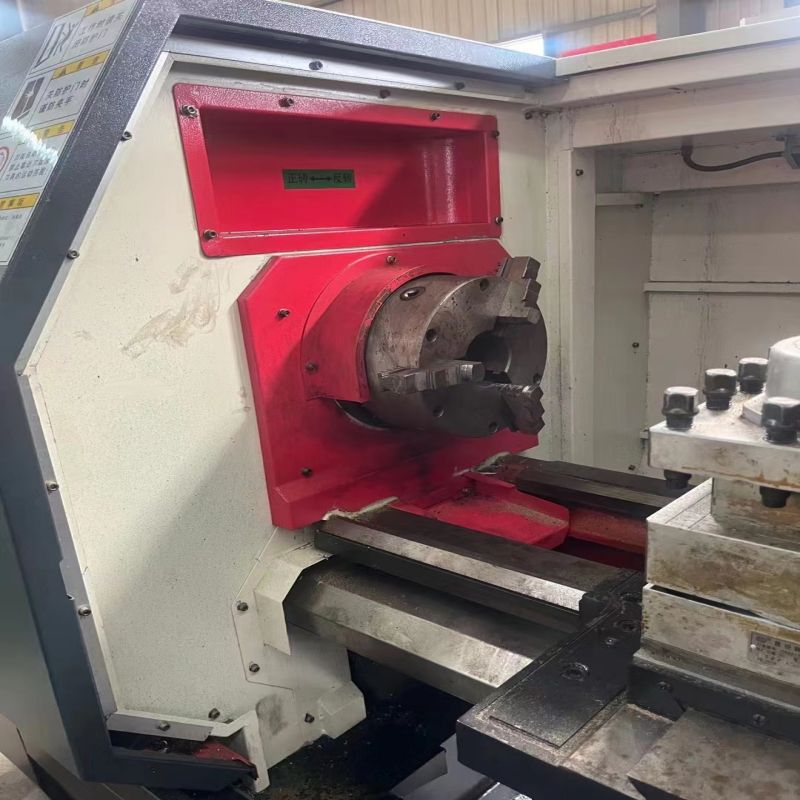

6. Spindle and Chuck:
   • The lathe features a spindle that rotates the workpiece. The spindle speed can often be controlled through the CNC system.
   • The chuck holds and secures the workpiece during the machining process. Depending on the model, it can be a three-jaw chuck or other types.
7. Reitstock:
   • The tailstock provides additional support for the workpiece and may have a quill that can be extended or retracted.
8. Materialkompatibilität:
   • The lathe is designed to work with various materials, including metals like steel, aluminum, and brass, as well as plastics.
9. Anwendungen:
   • The CK6150X1500 CNC lathe is used in manufacturing and machining processes to create a wide range of components, including shafts, gears, threaded parts, and more.
10. Genauigkeit und Präzision:
    • CNC lathes are known for their high precision and accuracy in producing components to tight tolerances.
