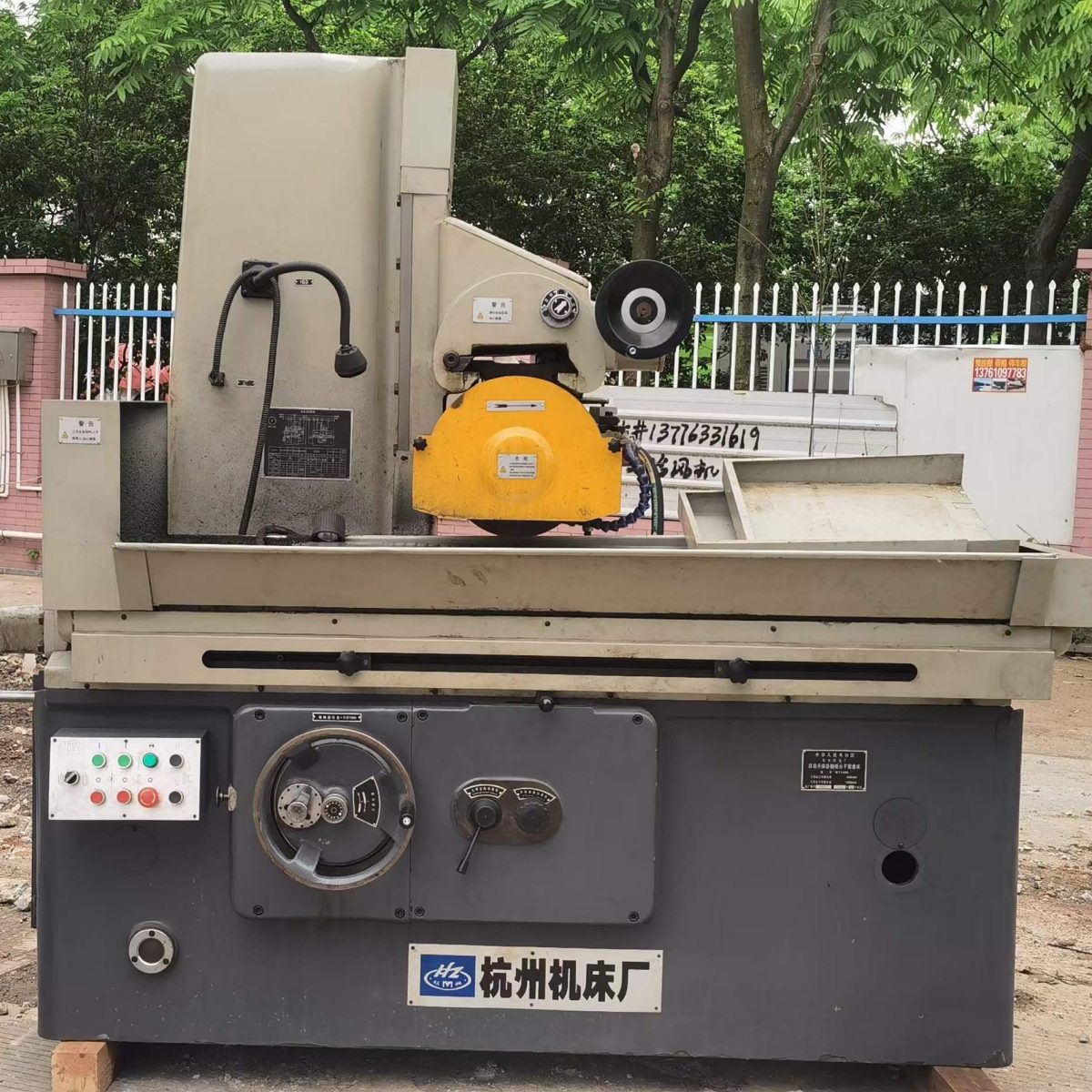

VIGERT Used Surface Grinder M7140H For Sale

The Used Surface Grinder M7140H is utilized for achieving a fine finish on flat surfaces. It’s particularly suitable for various processing applications in industries such as machinery, auto parts, and mold production.

Here are some detailed features and specifications of the Used Surface Grinder M7140H:

• Certifications: It is certified with ISO9001 and CE, ensuring compliance with international quality standards.
• Dimensiones: The grinder can accommodate workpieces up to 1000 mm in length and 400 mm in width.
• Table Movement: It features a maximum table longitudinal movement of 1100 mm, and the distance from the table surface to the spindle center is 570 mm.
• Grinding Capacity: The grinder has a lateral displacement of the grinding head of 450 mm and a vertical feed per revolution of 1 mm.
• Motor and Speed: Equipped with a 7.5 kW spindle motor, it operates at a speed of 1440 rpm.
• Construction: It is robustly constructed with hydraulic power driving the longitudinal movement of the table, providing stepless speed regulation for precise control.
• Surface Roughness: Capable of achieving a surface roughness of Ra 0.63 μm.
• Features: It includes features such as a fast-speed lifting motor for the grinding head, enhancing operational efficiency, and a PTFE soft belt on the vertical and horizontal railways for improved wear resistance and stability.
• Weight and Dimensions: The machine itself weighs between 4000 and 4600 kg and has packing dimensions of approximately 2800 x 1750 x 2350 mm.

These specifications highlight the Used Surface Grinder M7140H as a powerful tool for surface grinding, designed for efficiency, precision, and durability, suitable for heavy-duty grinding tasks in various industrial settings.
