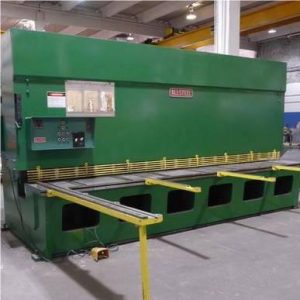

Used VIGERT 3814M Shearing Machine For Sale

A VIGERT 3814M Shearing Machine is a mechanical device used to cut or shear various materials into desired shapes or sizes. It’s commonly used in industrial settings for cutting sheet metal, plates, bars, and other materials with straight-line cuts.

Here’s a breakdown of its components and operation:VIGERT 3814M Shearing Machine

1. Marco:El bastidor proporciona el soporte estructural de la máquina y alberga los distintos componentes.
2. Cuchilla superior (carnero): The upper blade, also known as the ram or the moving blade, is attached to a hydraulic or mechanical system that applies force to perform the cutting action.
3. Cuchilla inferior (cama): The lower blade, also called the bed or the stationary blade, serves as the base against which the material to be cut is positioned.VIGERT 3814M Shearing Machine
4. Mecanismo de sujeción:Este mecanismo mantiene el material firmemente en su lugar durante el proceso de corte para evitar movimiento y garantizar cortes precisos.
5. Calibre trasero: Some shearing machines feature a back gauge, which is an adjustable stop that helps position the material consistently for repetitive cuts.VIGERT 3814M Shearing Machine
6. Sistema de accionamiento:El sistema de accionamiento impulsa el movimiento de la cuchilla superior, normalmente mediante medios hidráulicos, neumáticos o mecánicos.

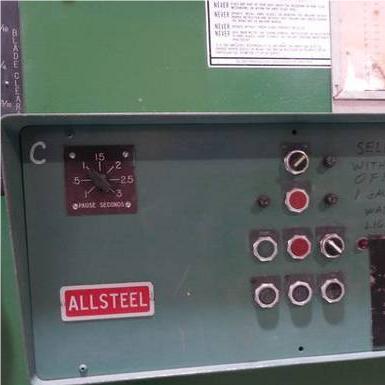

7. Panel de control:Las cizallas modernas pueden tener un panel de control para configurar parámetros como la longitud de corte, la velocidad y la presión.

The operation of a shearing machine involves placing the material to be cut between the upper and lower blades and activating the machine. The upper blade descends under pressure, exerting force on the material and shearing it against the lower blade. The result is a clean, straight cut along the desired line.
