Used DMG 1035V Machining Center For Sale

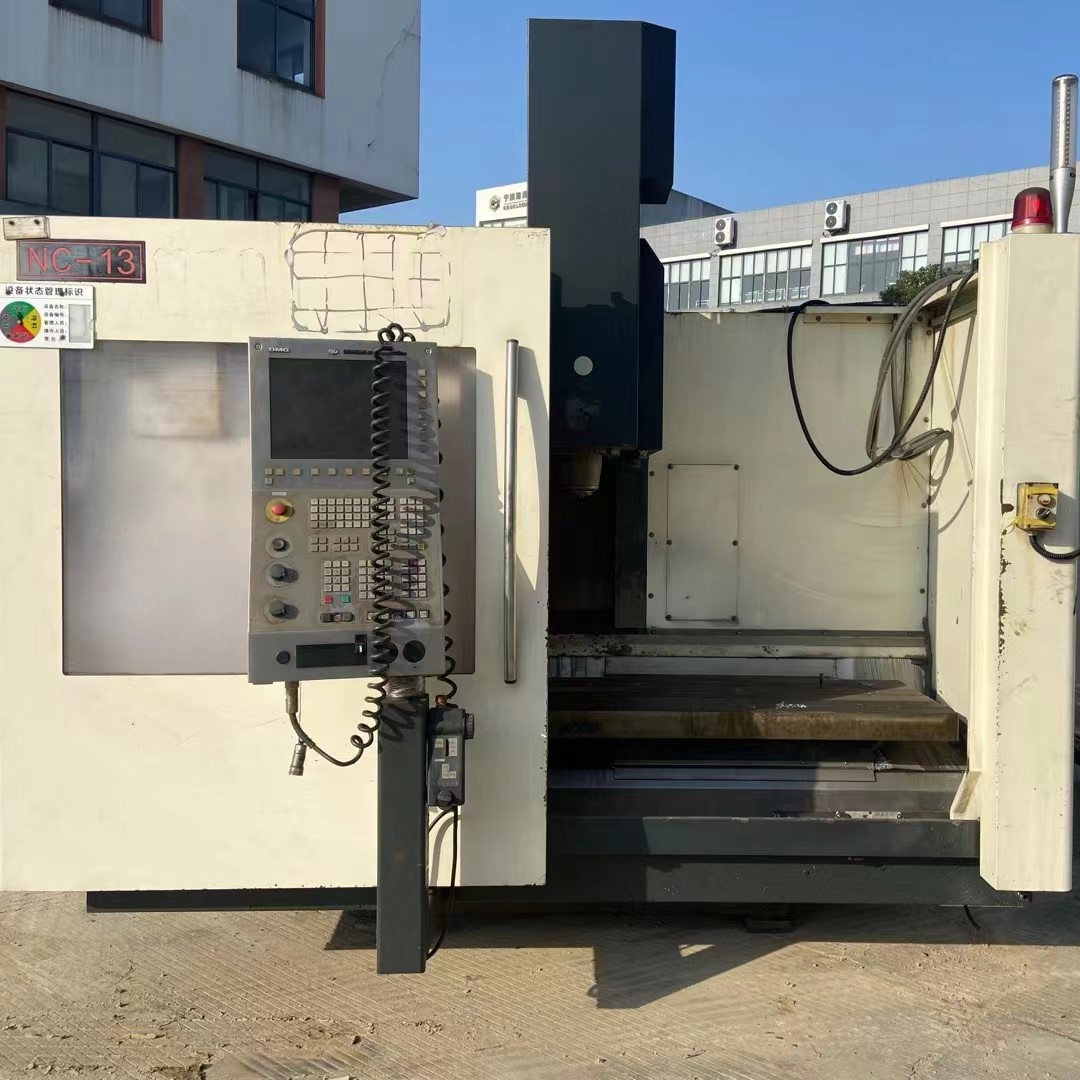

Used DMG 1035V Machining Center

A Used DMG 1035V Machining Center, often referred to as a CNC (Computer Numerical Control) machining center, is a computer-controlled manufacturing machine used for a wide range of machining operations. It represents a highly versatile and automated solution for precision machining in various industries. Machining centers combine the capabilities of a milling machine, drilling machine, lathe, and other tools into a single, multifunctional unit.

구성 요소 및 구조

A typical Used DMG 1035V Machining Center comprises several key components:

1. 머신 베드 및 프레임: The bed provides the foundational structure and support for all other components. It is designed to be rigid and stable to ensure precise machining operations.
2. 축: The spindle is responsible for rotating the cutting tool at high speeds. The speed and direction of the spindle are controlled by the CNC system.
3. 도구 교환기: Machining centers often have an automatic tool changer that allows for the swift and automated swapping of cutting tools during the machining process.
4. 작업대: The worktable is where the workpiece is secured for machining. It can move in multiple axes to facilitate complex machining operations.

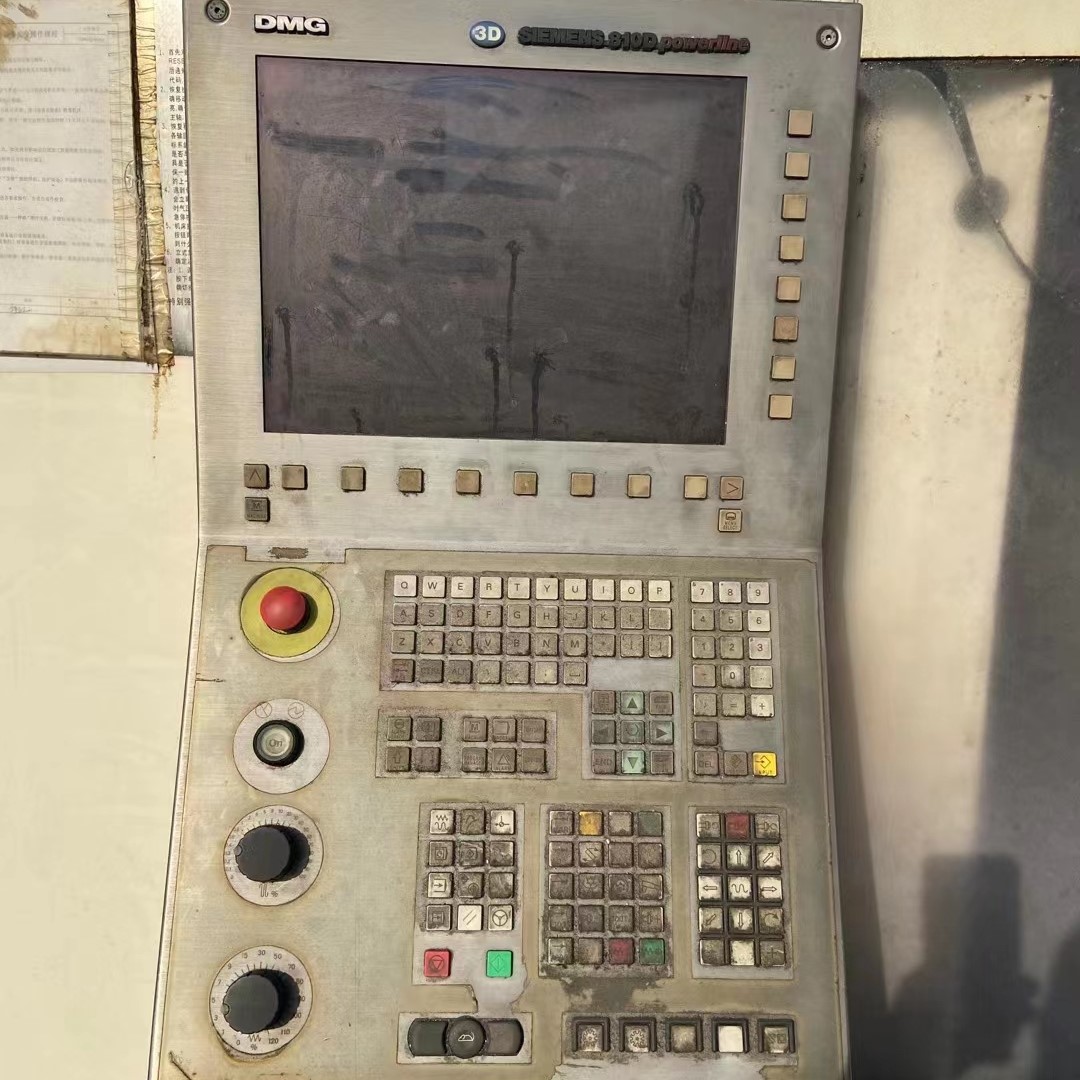

5. 제어판: The control panel is the interface where the operator inputs instructions, sets parameters, and monitors the machining process. It is essential for programming the CNC machine.
6. Axis Movement System: Machining centers have multiple axes of movement (typically three to five). Common configurations include X, Y, and Z axes for linear movement, and A and B axes for rotational movement.
7. 냉각수 시스템: Machining generates heat, so a coolant system is used to maintain proper temperatures and to clear away chips and debris, improving tool life and maintaining accuracy.

작동 원리

The operation of a Used DMG 1035V Machining Center involves the following steps:

1. 디자인 및 프로그래밍: The machining process begins with designing a part using computer-aided design (CAD) software. Once the design is complete, a CAM (computer-aided manufacturing) program is generated to control the machining operations.
2. 재료 설정: The workpiece is securely clamped to the worktable or held in a fixture.
3. 도구 설정: The appropriate cutting tools are loaded into the spindle and the tool changer.
4. CNC Operation: The CNC system reads the CAM program and translates the instructions into precise movements of the tool along the specified toolpath, controlling the spindle speed and feed rates.
5. Machining: The spindle rotates the cutting tool, and the tool moves along the programmed toolpath, removing material from the workpiece to create the desired shape and features.
6. Automated Tool Changes: If needed, the machine automatically changes tools during the machining process to perform different operations.
7. Coolant Application: Coolant is applied to the cutting area to dissipate heat and remove chips, ensuring tool longevity and maintaining accuracy.

장점

• 정도: Machining centers offer high precision and repeatability, crucial for industries that require tight tolerances and intricate parts.
• 다재: They can perform a wide range of machining operations, from milling and drilling to tapping and turning, reducing the need for multiple dedicated machines.
• 자동화 및 효율성: Automation of tool changes and the ability to run unattended for extended periods increase productivity and efficiency.
• Complex Part Machining: Used DMG 1035V Machining Centers excel at creating complex parts that would be challenging or impossible to manufacture manually.

응용

Used DMG 1035V Machining Centers find applications in various industries, including aerospace, automotive, electronics, medical device manufacturing, mold and die making, and general machining operations. They are used to create components, prototypes, molds, and parts with high precision and complexity.

In summary, a Used DMG 1035V Machining Center is a highly advanced and versatile machining solution that plays a vital role in modern manufacturing, allowing for precise, automated, and efficient production of complex components across a range of industries.
