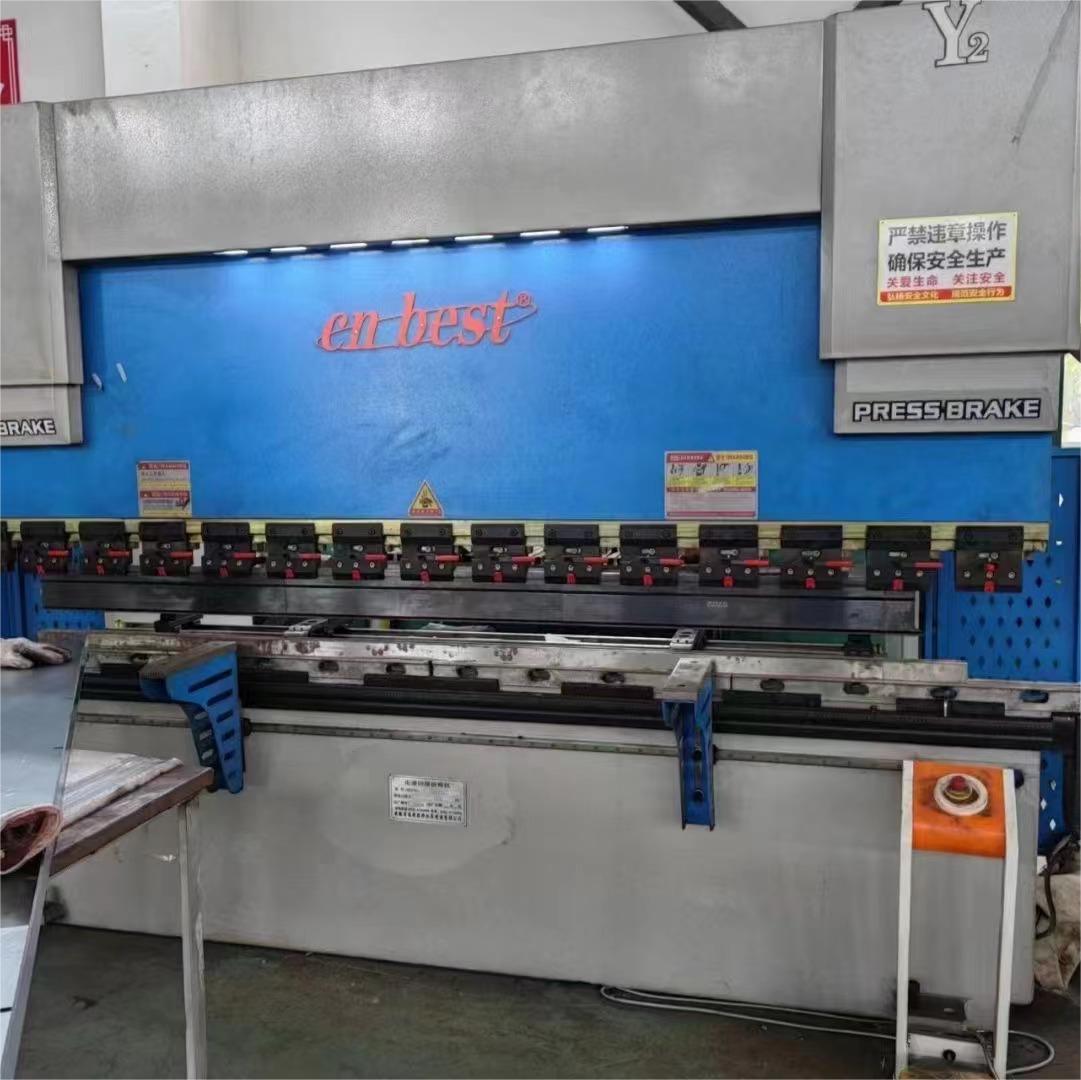

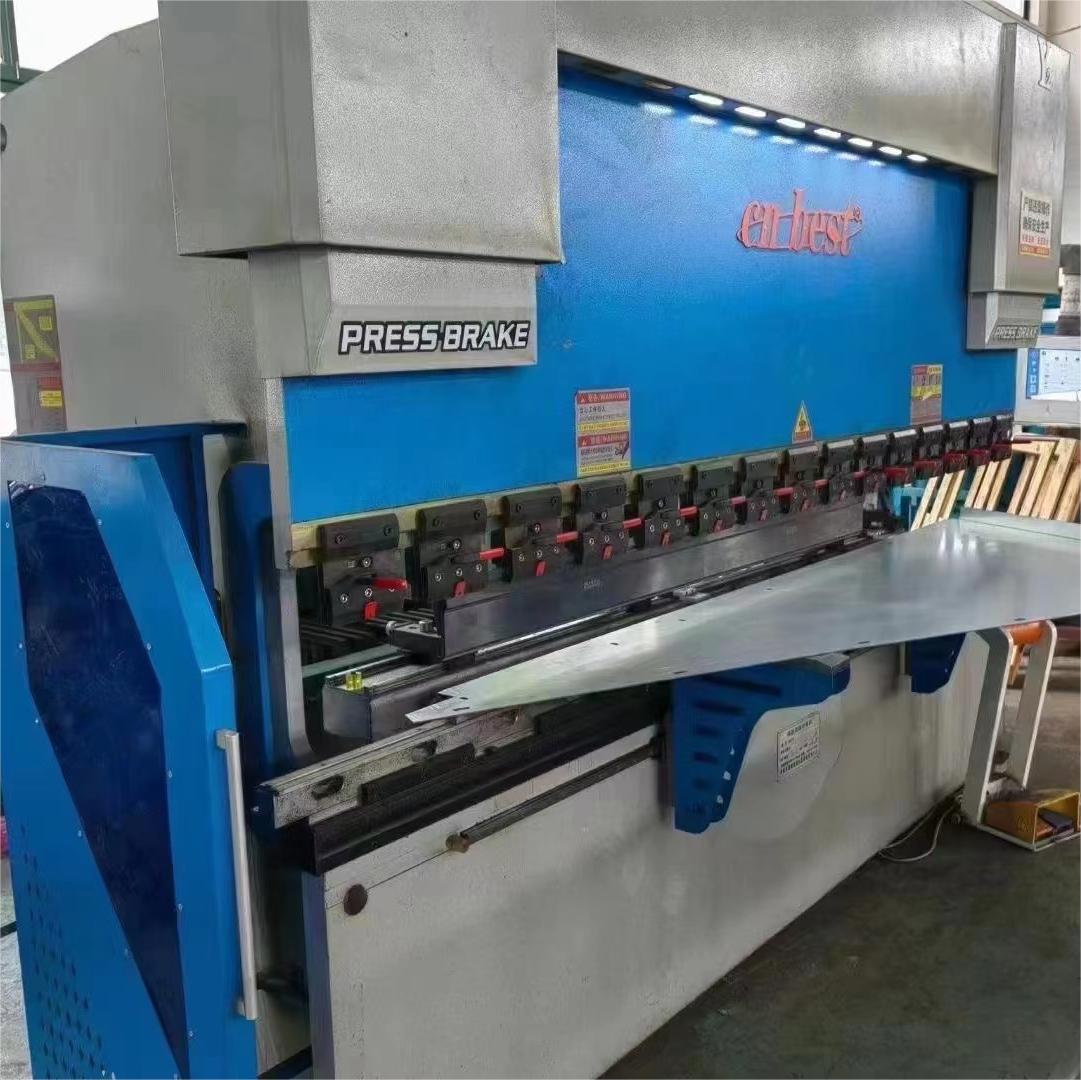

VIGERT Used WE67K-100TX3200 CNC Press Brake With Electrohydraulic For Sale

A CNC press brake with electrohydraulic 4+1 refers to a specialized type of press brake machine that combines advanced control systems with both hydraulic and electronic components to enhance its capabilities for bending and shaping sheet metal and other materials. Let’s break down the key elements of this description:

1. CNC (Controle Numérico Computadorizado): The press brake is equipped with a computerized control system that allows for precise programming and control of the bending process. This CNC technology enables automation, accuracy, and repeatability in bending operations.
2. Electrohydraulic System: Unlike traditional hydraulic systems, which rely solely on hydraulic mechanisms for force application, an electrohydraulic system incorporates both hydraulic and electronic elements. This combination provides more precise control over the bending process and allows for finer adjustments to force, speed, and positioning.
3. 4+1 Axes: The “4+1” refers to the number of axes that the machine can control for movement and positioning. The axes are directions along which the press brake can move its tools and material. The “+” signifies an additional rotational axis for enhanced flexibility in forming complex shapes. The specific axes typically include:
   • Y-Axis: Vertical movement of the ram (upper tool) for applying bending force.

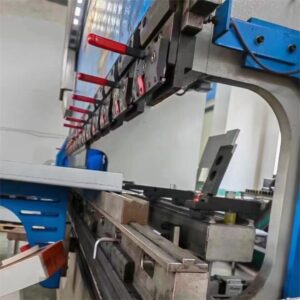

   • X-Axis: Horizontal movement of the back gauge to position the material accurately.
   • R-Axis: Back gauge depth adjustment to accommodate varying material thicknesses.
   • Z-Axis: Horizontal movement of the fingers on the back gauge for more accurate positioning.
   • C-Axis (Rotational): This additional axis allows rotation of a tool or the workpiece itself, enabling more intricate bending operations, such as multi-bend parts and conical bending.
4. Enhanced Precision and Versatility: CNC Press Brake With Electrohydraulic 4+1. The combination of CNC control, electrohydraulic technology, and the 4+1 axes system offers enhanced precision, versatility, and flexibility in the bending process. This is particularly important when dealing with complex shapes, multi-bend parts, and demanding material specifications.
5. Automation and Programming: CNC Press Brake With Electrohydraulic 4+1. With CNC control, operators can program the machine to perform a series of bends automatically, reducing manual intervention and increasing efficiency. The electronic control system allows for storing and recalling different bending sequences, which is especially useful for batch production.

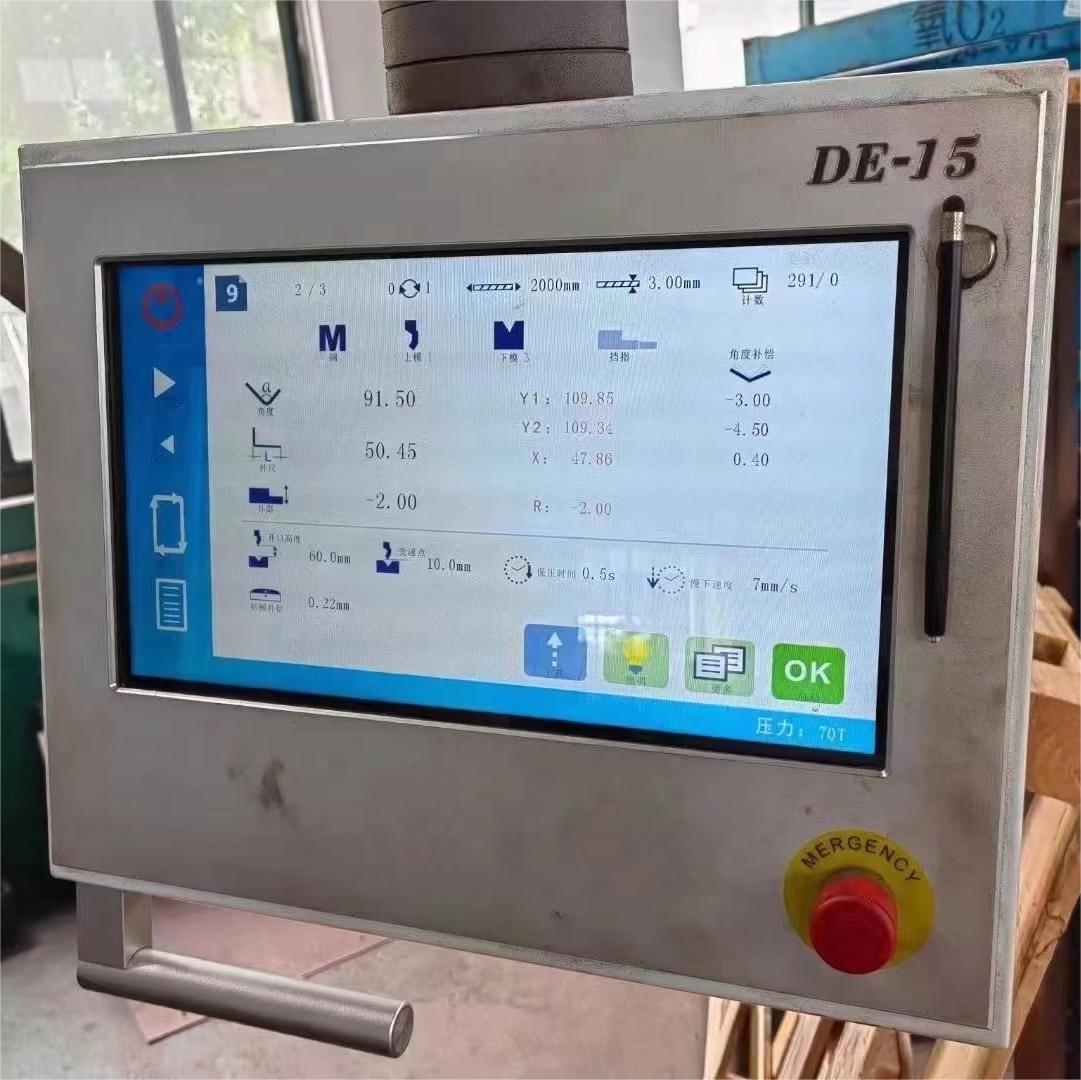

6. User Interface: CNC Press Brake With Electrohydraulic 4+1. The machine likely features a user-friendly interface, often displayed on a touchscreen, where operators can input bending parameters, program sequences, and monitor the bending process in real-time.
7. Material Handling: CNC Press Brake With Electrohydraulic 4+1. CNC press brakes often have integrated material handling systems that can automate the loading and unloading of sheets, further streamlining the production process.
