Used SMTCL CAK50135 MetalWorking CNC Lathe For Sale

A MetalWorking CNC Lathe is a precision machine tool designed specifically for shaping and machining metal workpieces with high accuracy and efficiency. It operates using computer numerical control (CNC) technology, which allows for automated and precise control of the machining process. Here’s an in-depth description of the components and features commonly found in a metalworking CNC lathe:

1. Bed and Frame: A MetalWorking CNC Lathe,The machine’s foundation consists of a heavy-duty bed and frame that provide stability and minimize vibrations during machining. The rigid structure ensures consistent and accurate results.
2. Headstock and Chuck: A MetalWorking CNC Lathe,The headstock contains the main spindle, which rotates the workpiece. A chuck is attached to the spindle and securely holds the workpiece in place. The headstock may feature variable speed controls for adjusting spindle rotation.
3. Tool Turret: A MetalWorking CNC Lathe,The tool turret holds a variety of cutting tools, allowing for automatic tool changes and the execution of complex machining operations without manual intervention. The turret is indexed to position different tools accurately.

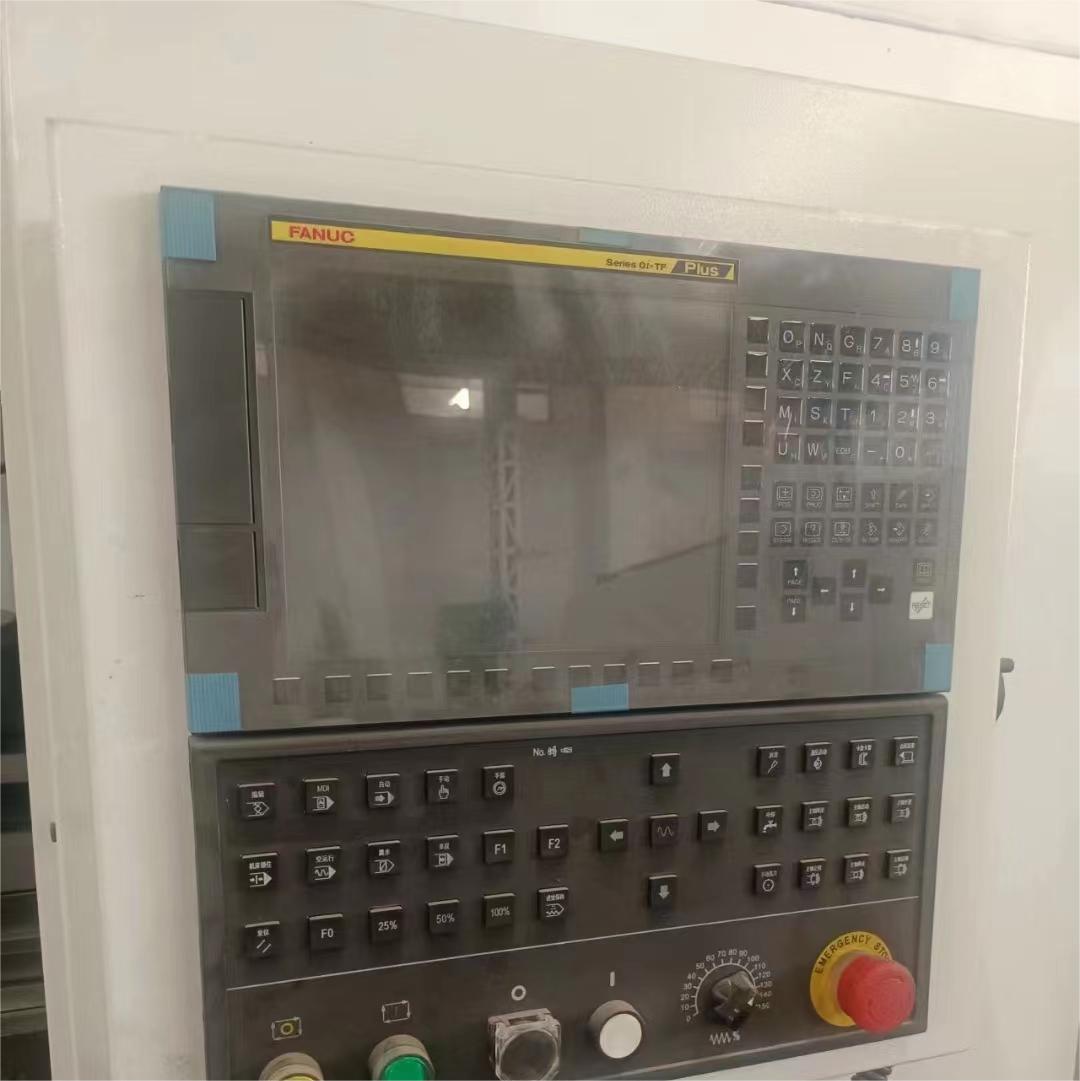

4. Sistema de controle CNC: A MetalWorking CNC Lath,The heart of the CNC lathe, the control system includes both hardware and software components. It interprets CAD/CAM files, generates tool movement instructions, and manages the machining process. Operators interact with the system through a user-friendly interface.
5. Linear Motion System: Linear guides and ball screws enable precise movement of the cutting tools along various axes (usually X and Z, and sometimes Y for more complex machining). This movement is crucial for achieving accurate dimensions and shapes.
6. Tailstock (Optional): Some CNC lathes are equipped with a tailstock, which provides additional support for longer workpieces. It might include features like a quill for drilling operations or live centers for enhanced stability.
7. Chip Management: Efficient chip evacuation systems, such as chip conveyors or augers, remove chips and coolant from the work area to maintain a clean and safe machining environment.
8. Sistema de refrigeração: A coolant system is essential for lubricating the cutting tools and workpiece, reducing friction and heat during machining, and prolonging tool life.

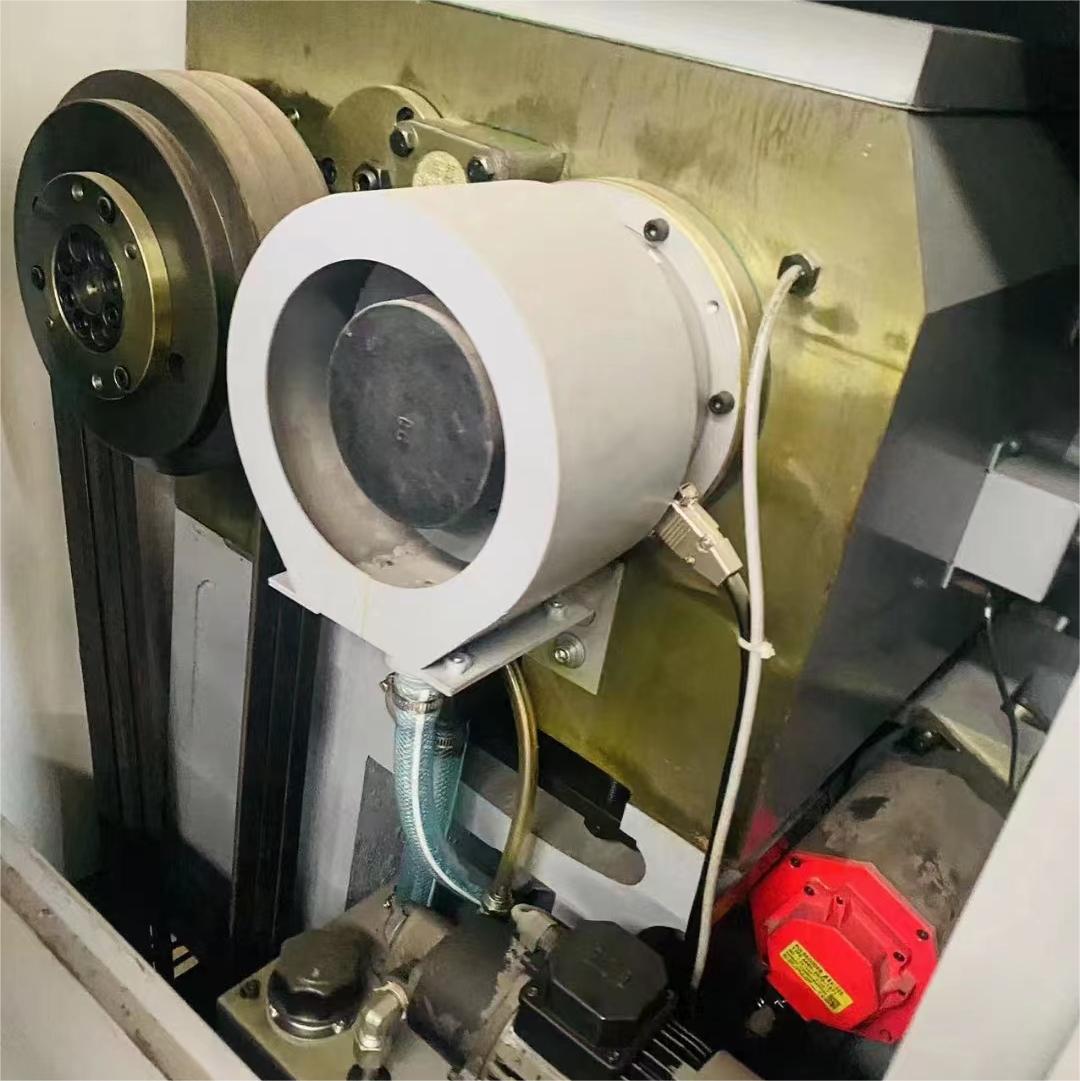

9. Spindle Motor: The spindle motor drives the main spindle’s rotation and can be adjusted to accommodate different speed ranges for various machining operations.
10. Tool Holders: Tool holders securely clamp and position cutting tools in the turret. They ensure accuracy and stability during machining.
11. Workpiece Clamping: CNC lathes use various mechanisms to clamp the workpiece onto the spindle or chuck, ensuring it remains securely in place during machining.
12. Características de segurança: To ensure operator safety, CNC lathes come with emergency stop buttons, protective enclosures, interlocks, and other safety measures.
13. Programming and Simulation: Many CNC lathes include programming software for creating, editing, and simulating machining programs before actual execution.
14. Connectivity: Connectivity options enable the transfer of design files, remote monitoring of machine performance, and receiving alerts for maintenance or operational issues.
15. Accuracy and Repeatability: Designed to meet tight tolerances and produce consistent results, CNC lathes offer high levels of accuracy and repeatability.
