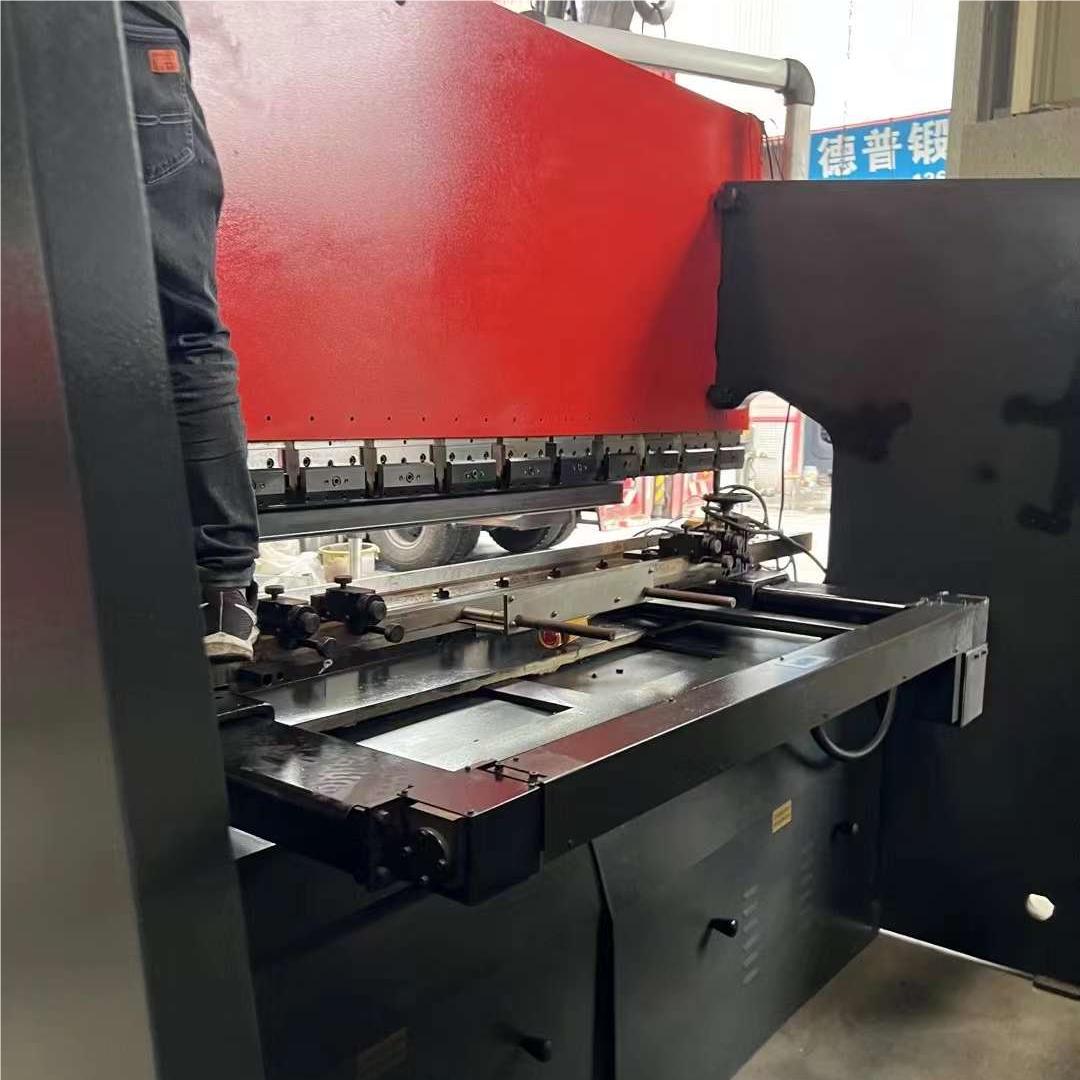

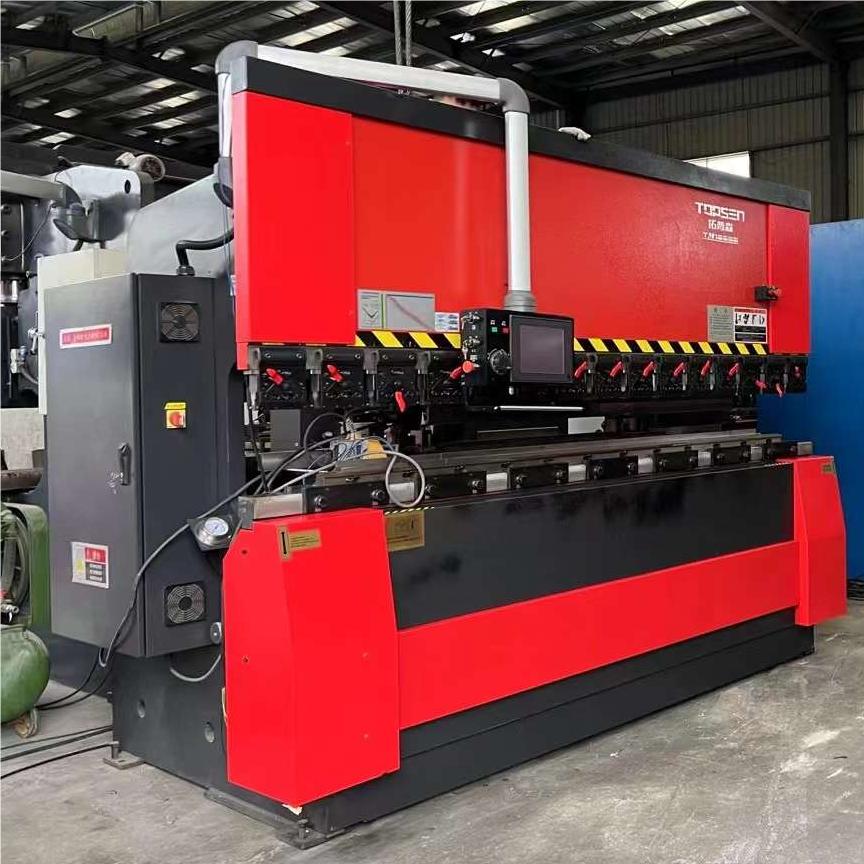

Used VIGERT TM10050 Press Brake For Sale

A press brake is a versatile machine tool used in metalworking and fabrication processes. It’s designed to bend sheet metal into various shapes and angles. Here’s a breakdown of its components and operation:VIGERT TM10050 Press Brake

1. Quadro: The frame provides the structural support for the press brake. It’s typically made of welded steel or cast iron to withstand the high forces generated during bending.VIGERT TM10050 Press Brake
2. Ram (viga superior): The ram is the upper part of the press brake that holds the punch. It moves vertically to apply force to the sheet metal, causing it to bend against the die.VIGERT TM10050 Press Brake
3. Cama (viga inferior): A base é a parte fixa da prensa dobradeira onde a matriz é montada. Ela fornece uma superfície plana contra a qual a chapa metálica é pressionada durante a dobra.
4. Soco: O punção é a ferramenta montada no carneiro que entra em contato com a chapa metálica. Ele aplica força ao metal, fazendo com que ele se deforme e dobre.
5. Morrer: A matriz é montada na base e fornece a força de contraposição ao punção. Ela determina a forma e o ângulo finais da dobra.
6. Batente traseiro: Algumas prensas dobradeiras são equipadas com um batente traseiro, um dispositivo que ajuda a posicionar a chapa metálica com precisão para a dobra. Ele pode ser ajustado manualmente ou controlado por CNC para um posicionamento preciso.
7. Sistema hidráulico: Press brakes often use hydraulic systems to generate the force needed for bending. Hydraulic cylinders apply pressure to the ram, allowing for controlled and precise bending operations.
8. Painel de controle: Modern press brakes are equipped with electronic control panels that allow operators to input bending parameters such as bend angle, bend length, and material thickness. CNC (Computer Numerical Control) press brakes offer advanced automation and programming capabilities for complex bending operations.

The operation of a press brake involves clamping the sheet metal between the punch and die and then activating the hydraulic system to apply force, gradually bending the metal to the desired angle. Skilled operators use a combination of experience and precision control to produce accurate bends according to engineering specifications.

VIGERT TM10050 Press Brake
