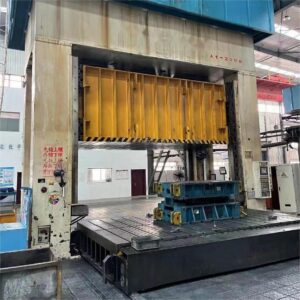

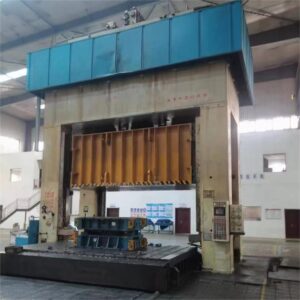

Used HARSLE Y27-2000T Deep Drawing Hydraulic Press For Sale

A 2000T deep drawing hydraulic press is a highly powerful and specialized industrial machine used in metal forming and manufacturing processes. This type of hydraulic press is designed to exert immense force – in this case, 2000 tons – to shape metal sheets or blanks into intricate and complex forms through a process known as deep drawing.

Parameter:

Main Force: 20,000kN

Return Force: 2,200kN

Cushion Force: 7,000kN

Hydraulic Pressure: 25MPa

Table Size: 5000*2700mm

Maximum Opening: 2,ooomm

Ram Stroke: 1,400mm

Cushion Stroke: 400mm

Cushion Size: 4100*2000mm

Down Speed: 300mm/s

Working Speed: 18-45mm/s

Return Speed: 250mm/s

Moving Table Loading Capacity: 50T

Total Power: 465KW

Here’s a detailed description of the press and its functionalities:

Press Capacity and Force: A 2000t deep drawing hydraulic press has a maximum force capacity of 2000 tons, which means it can apply a force of 4,000,000 pounds or around 17,792,000 newtons. This immense force is essential for shaping metal materials that have high tensile strength and require substantial pressure for deformation.

Гидравлическая система: The press operates using a hydraulic system, which consists of hydraulic pumps, cylinders, valves, and other components. Hydraulic fluid is used to transmit and amplify the force generated by the pumps to the press’s ram or slide. The hydraulic system allows for precise control of force and movement, making it suitable for deep drawing applications where accuracy is crucial.

Рама и конструкция: The press frame is constructed using heavy-duty materials, such as steel, to withstand the enormous forces involved in the deep drawing process. It is designed to provide stability and minimize deflection or distortion under heavy loads. The frame structure ensures that the press maintains its integrity during operation.

Die Space and Bed: The press’s die space, also known as the working area, is where the deep drawing process takes place. It consists of a flat and sturdy bed on which the metal blank is placed. The die set, which includes a die and a punch, is mounted in the press to shape the metal. The punch descends into the die, forming the blank into the desired shape.

Automation and Controls: Modern hydraulic presses often come equipped with advanced automation and control systems. These systems allow for precise control over various parameters, including force, speed, and stroke length. They can also include safety features such as emergency stop buttons, sensors, and interlocks to ensure operator safety and prevent accidents.

Приложения: Deep drawing hydraulic presses are commonly used in the automotive, aerospace, appliance, and manufacturing industries. They are essential for producing components with intricate shapes, such as automotive body panels, sinks, kitchen utensils, and various metal containers.

Преимущества:

• High force capacity enables shaping of high-strength materials.
• Precise control over force and movement.
• Capable of forming complex shapes with consistent accuracy.
• Versatile for various industries and applications.

Challenges:

• High initial cost and maintenance requirements.
• Specialized knowledge needed for operation and maintenance.
• Safety considerations due to the high forces involved.

In summary, a 2000t deep drawing  hydraulic press is a heavy-duty industrial machine that plays a vital role in shaping metal materials into intricate forms through deep drawing processes. Its immense force and precision make it an essential tool in various manufacturing sectors.
