Used YCM CV102A Machining Center With FANUC For Sale

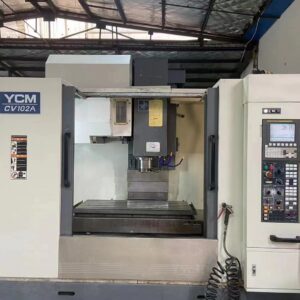

YCM CV102A Machining Center

A YCM CV102A Machining Center is a highly automated machine tool that performs various machining operations such as milling, drilling, tapping, and more in a single setup. It is designed to enhance efficiency, accuracy, and productivity in the manufacturing process. YCM CV102A Machining Centers come in different configurations and types, each optimized for specific tasks and industries. Here’s an overview of machining centers:

Key Features and Components:

1. Автоматический сменщик инструмента (АТС): One of the defining features of a machining center is its automatic tool changer. This system allows the machine to change cutting tools quickly without manual intervention, reducing downtime between operations.

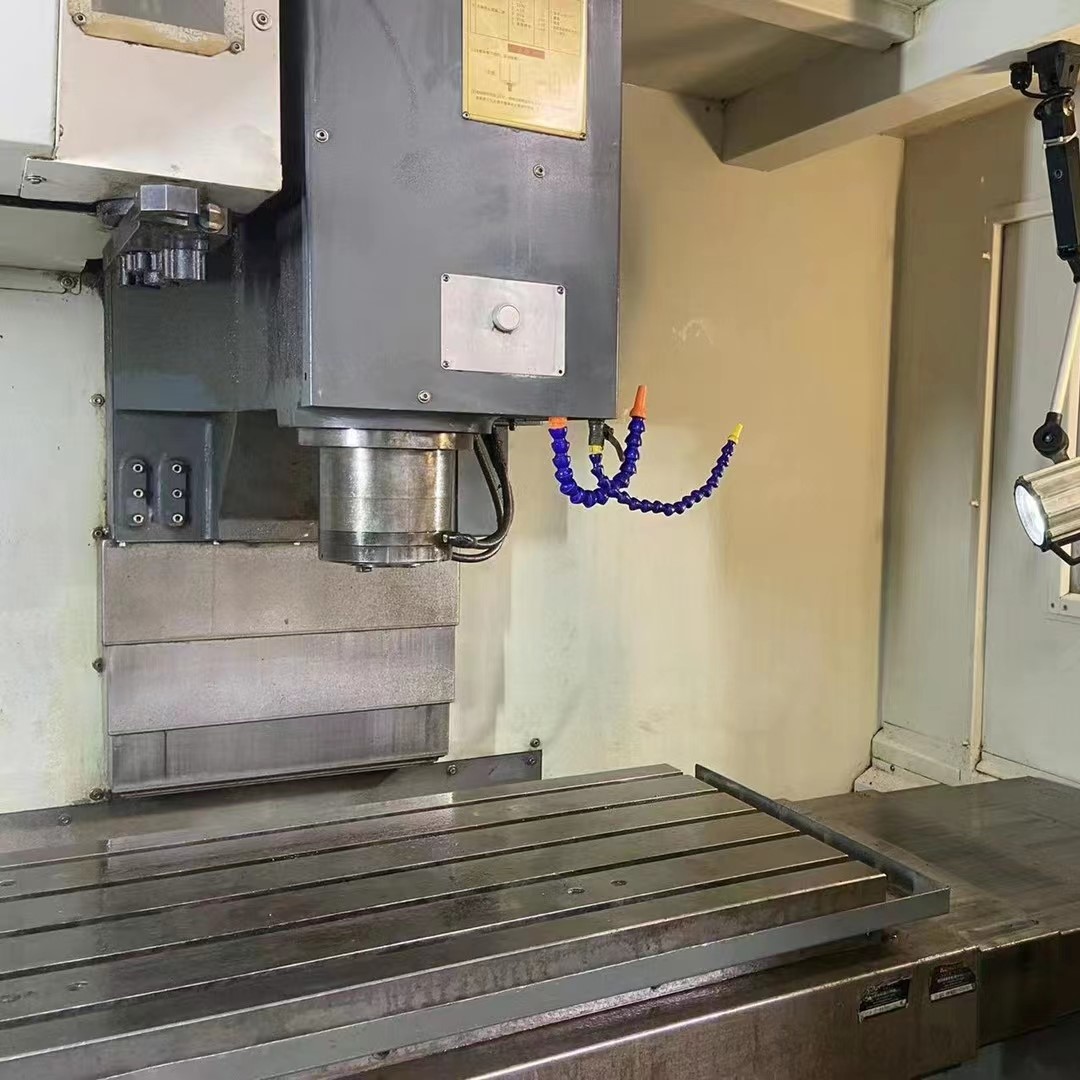

2. Рабочий стол: The worktable holds the workpiece and can move in multiple axes, enabling the machine to position the workpiece precisely for various machining operations.

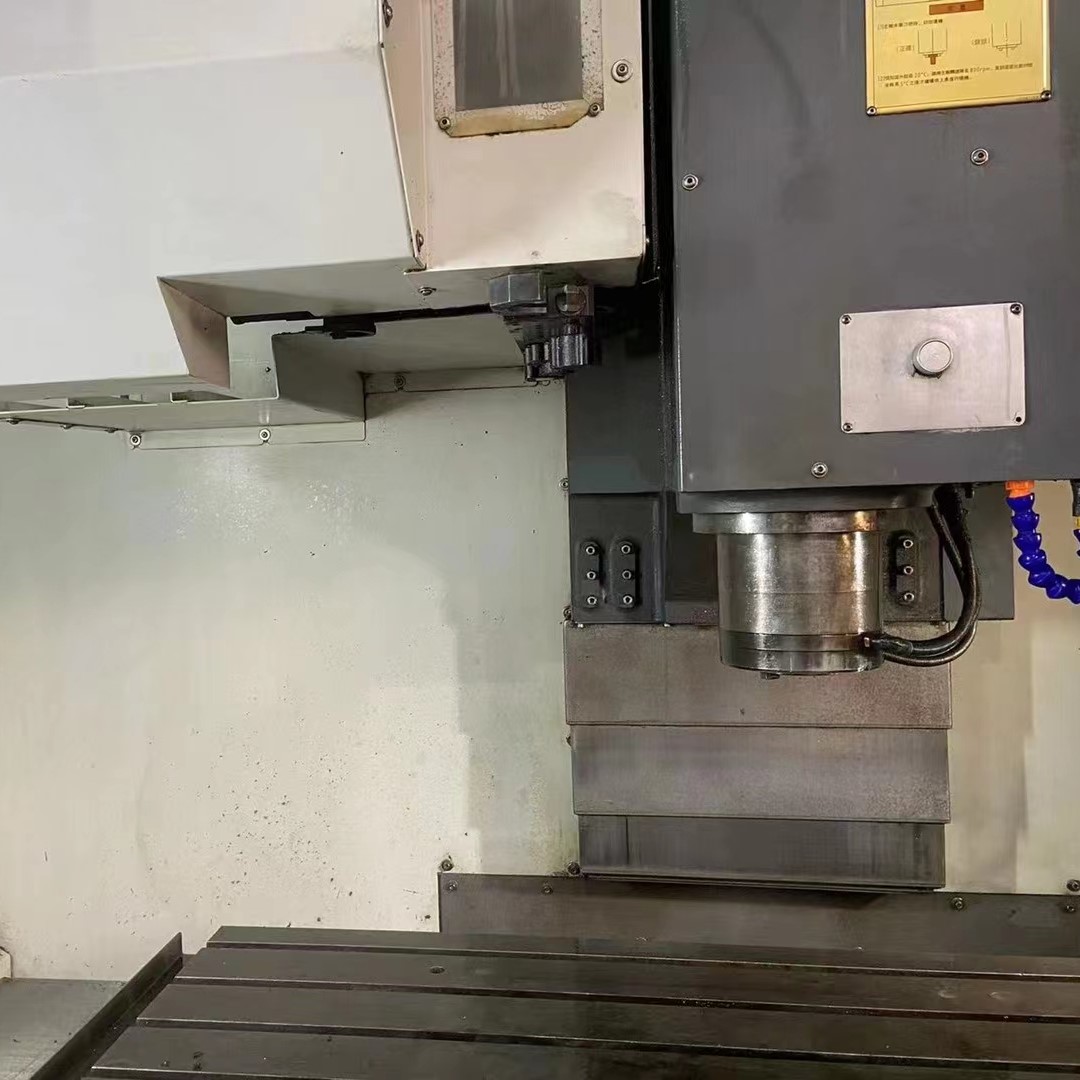

3. шпиндель: The spindle holds the cutting tool and rotates at high speeds to remove material from the workpiece. Different spindles may be equipped for various types of cutting tools and operations.
4. Axes of Movement: YCM CV102A Machining Centers can have three to five axes of movement, including X, Y, Z linear axes, and additional rotary axes. The number of axes determines the machine’s capability to approach the workpiece from different angles.

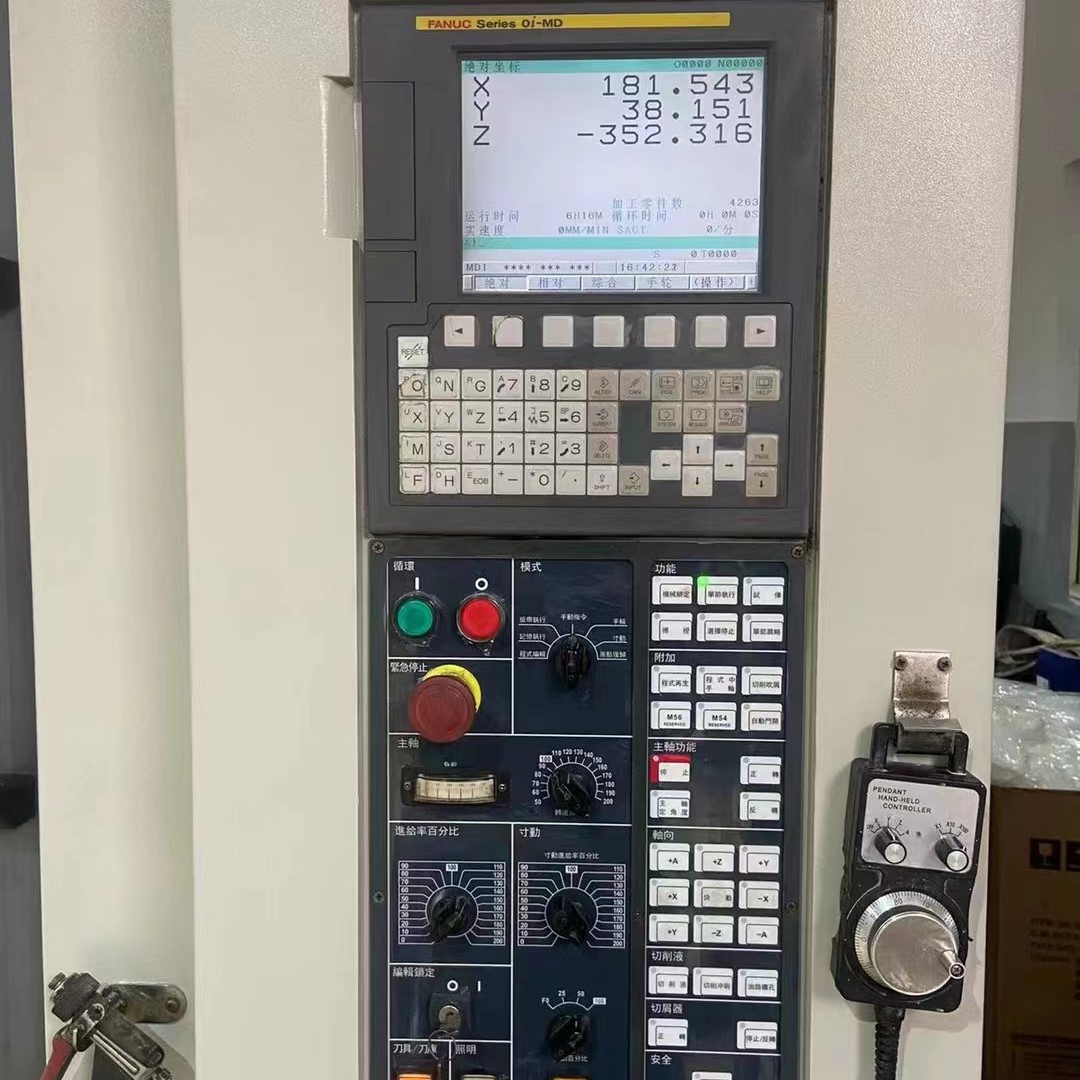

5. Система управления ЧПУ: A computer numerical control (CNC) system controls the machining center’s movements and operations. Operators program the machine using software to specify tool paths, cutting speeds, and other parameters.
6. Система охлаждения: A coolant system is used to lubricate and cool the cutting tool and workpiece during machining, reducing heat and preventing damage.
7. Enclosure: Many YCM CV102A Machining Centers have enclosures to contain coolant splatter, chips, and noise, providing a safer and cleaner working environment.

Types of Machining Centers:

1. Vertical Machining Center (VMC): In a VMC, the spindle is oriented vertically, and the workpiece is typically clamped on the table. VMCs are widely used for applications like 3-axis milling, drilling, and tapping.
2. Horizontal Machining Center (HMC): In an HMC, the spindle is oriented horizontally, and the workpiece is typically mounted on a rotary table. HMCs are suitable for multi-sided machining and are often used for larger workpieces.
3. 5-Axis Machining Center: This type of machining center has the ability to move the tool along five axes, enabling it to machine complex geometries and angles in a single setup.
4. Gantry Machining Center: Gantry machining centers have a gantry-like structure that spans the workspace, providing stability and support for heavy workpieces. They are often used for large and heavy components.
5. Pallet-Changing Machining Center: These machines have multiple workholding pallets that can be exchanged automatically, allowing for continuous machining while one pallet is loaded/unloaded.
