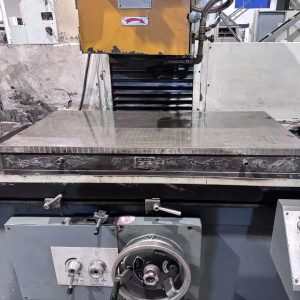

VIGERT Used Planar Grinder M7163 For Sale

Used Planar Grinder M7163 is capable of achieving high precision and smooth finishes, making it suitable for various industrial applications.

Here are some detailed specifications and features Used Planar Grinder M7163:

• Dimensions and Travel: It has a maximum grinding length of 1250 mm and width of 630 mm. The maximum vertical movement of the grinding head is 600 mm, which allows substantial depth adjustments during operations.
• Muela: The machine uses a grinding wheel with dimensions of 400x50x203 mm, rotating at a speed of 1440 revolutions per minute (r/min).
• Spindle and Motor Power: The total motor power is 13.5 kW, with a spindle motor power of 7.5 kW, ensuring robust grinding capabilities.
• Control and Feed: The longitudinal feed speed is variable and controlled hydraulically, offering smooth and consistent movement. The cross feed speed is also adjustable.
• Precision and Surface Quality: The surface grinder achieves a surface roughness of Ra 0.63 µm, and processing accuracy is maintained at 0.015 mm per 1000 mm, ensuring high-quality finishes.
• Construcción y diseño: The machine is designed with an integral bed rail structure for enhanced rigidity and stability. It also includes an electronic demagnetization device for ease of loading and unloading workpieces, which contributes to operational efficiency.
• Additional Features: It features a digital display for clear readouts, and it is equipped with an independent hydraulic station to minimize thermal deformation. The design also includes an automatic lubrication system for better maintenance and longevity.

Used Planar Grinder M7163 is particularly noted for its robust construction, reliable performance, and versatile applications across different metal grinding tasks​​​​​​​​​​.
