Used ADH WC67Y-160X3200 CNC Servo Bending Machine For Sale

WC67Y-160X3200 CNC Servo Bending Machine . The “160X3200” denotes the bending capacity of the machine, where “160” indicates the tonnage or bending force in metric tons, and “3200” indicates the maximum bending length in millimeters. This type of machine is commonly used in the manufacturing and fabrication industry for various sheet metal bending applications. Here’s a detailed description of the key features and components of a 160X3200 CNC Servo Bending Machine:

1. Progettazione e struttura: WC67Y-160X3200 CNC Servo Bending Machine . The CNC Servo Bending Machine is designed with a robust and rigid structure to support precise bending operations. It typically consists of a frame, bending beam, hydraulic system, control panel, backgauge system, and other components.

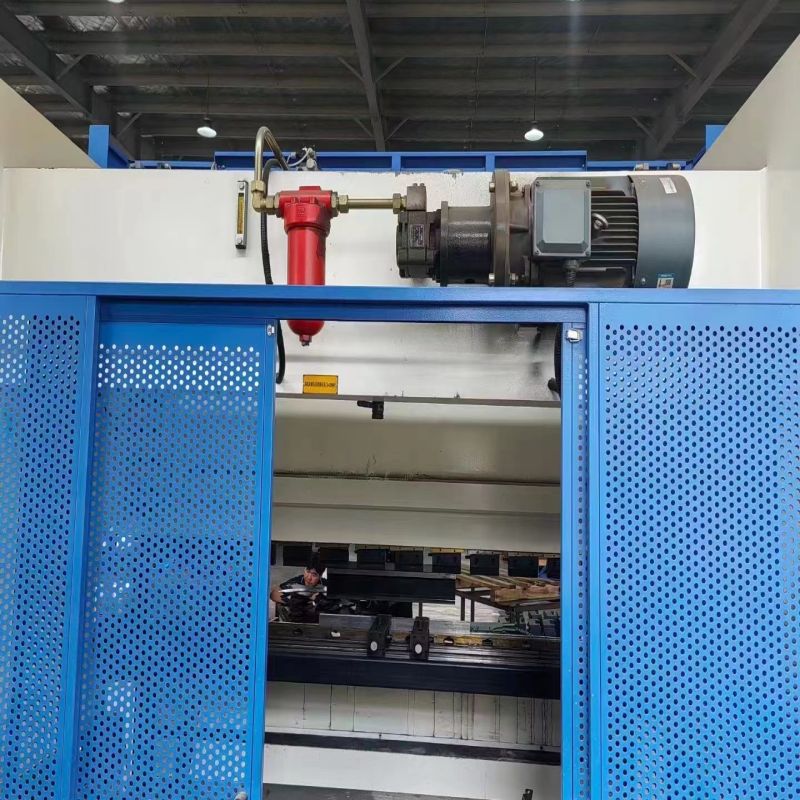

2. Sistema idraulico: WC67Y-160X3200 CNC Servo Bending Machine . The machine is powered by a hydraulic system that provides the necessary force to bend the metal sheet accurately. The hydraulic system includes hydraulic cylinders, pumps, valves, and other components.
3. Bending Beam and Tooling: WC67Y-160X3200 CNC Servo Bending Machine . The bending beam holds the bending tools or dies. The tooling includes upper and lower dies, which are matched and designed according to the specific bending requirements. The tooling shapes the metal sheet during the bending process.
4. Sistema di controllo CNC: WC67Y-160X3200 CNC Servo Bending Machine . The CNC control system is the central component that allows for precise control and coordination of the bending operations. It uses G-code programming to execute bending tasks with accuracy.

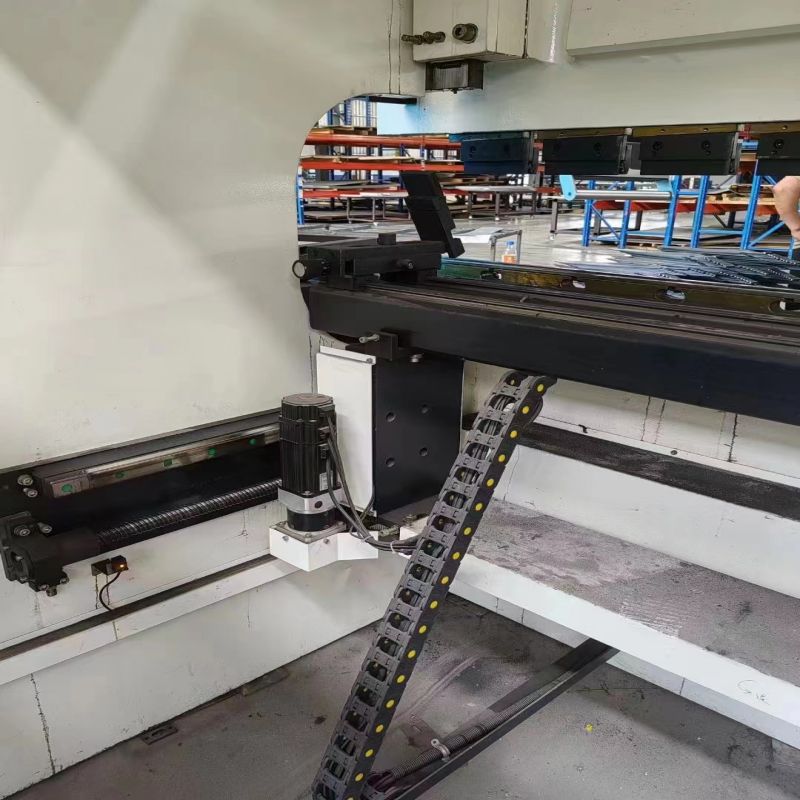

5. Backgauge System: The backgauge system is responsible for positioning and aligning the metal sheet accurately before the bending process. It ensures consistent and precise bending across the length of the sheet.
6. Material Support and Workholding: The machine is equipped with material support devices and workholding mechanisms to secure the metal sheet in place during bending, preventing any unwanted movement.
7. Foot Pedal or Control Panel: The operator can control the bending process using a foot pedal or a control panel. The control panel typically includes buttons and a touchscreen interface for setting bending parameters.
8. Caratteristiche di sicurezza: Safety features such as emergency stops, protective guards, interlocks, and safety sensors are integrated into the machine to ensure safe operation for the operator.
9. Capacità di piegatura: The “160” in the model number indicates a bending capacity of 160 metric tons, specifying the maximum force the machine can apply to bend the metal sheet.
10. Bending Length: The “3200” in the model number indicates a maximum bending length of 3200 millimeters, specifying the maximum length of the metal sheet that can be bent in a single operation.
11. Applicazioni: The 160X3200 CNC Servo Bending Machine is used for bending various types of metal sheets in industries such as automotive, aerospace, construction, manufacturing, and more.
