Used VIGERT 63T/2500 Serviceable Press Brake For Sale

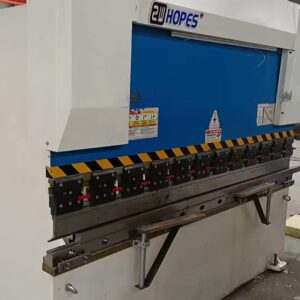

63T/2500 Serviceable Press Brake

A 63T/2500 Serviceable 63T/2500 Serviceable Press Brake is a machine tool used in metalworking and fabrication to bend sheet metal and plate materials into various shapes. It uses a mechanical or hydraulic mechanism to apply force on a workpiece, causing it to bend along a predetermined angle. Press brakes are commonly used in industries such as manufacturing, automotive, aerospace, and construction for forming metal components and parts with precision and consistency.

Key features and components of a press brake include:

Cadru: The frame provides the structural support for the press brake and houses the main components. It needs to be rigid and robust to withstand the forces generated during bending.

RAM: The ram is the moving upper part of the press brake that applies downward force on the workpiece to perform the bending operation.

Pat: The bed is the stationary lower part of the press brake, on which the workpiece rests during bending. It’s equipped with a V-shaped groove or die that matches the desired bend angle.

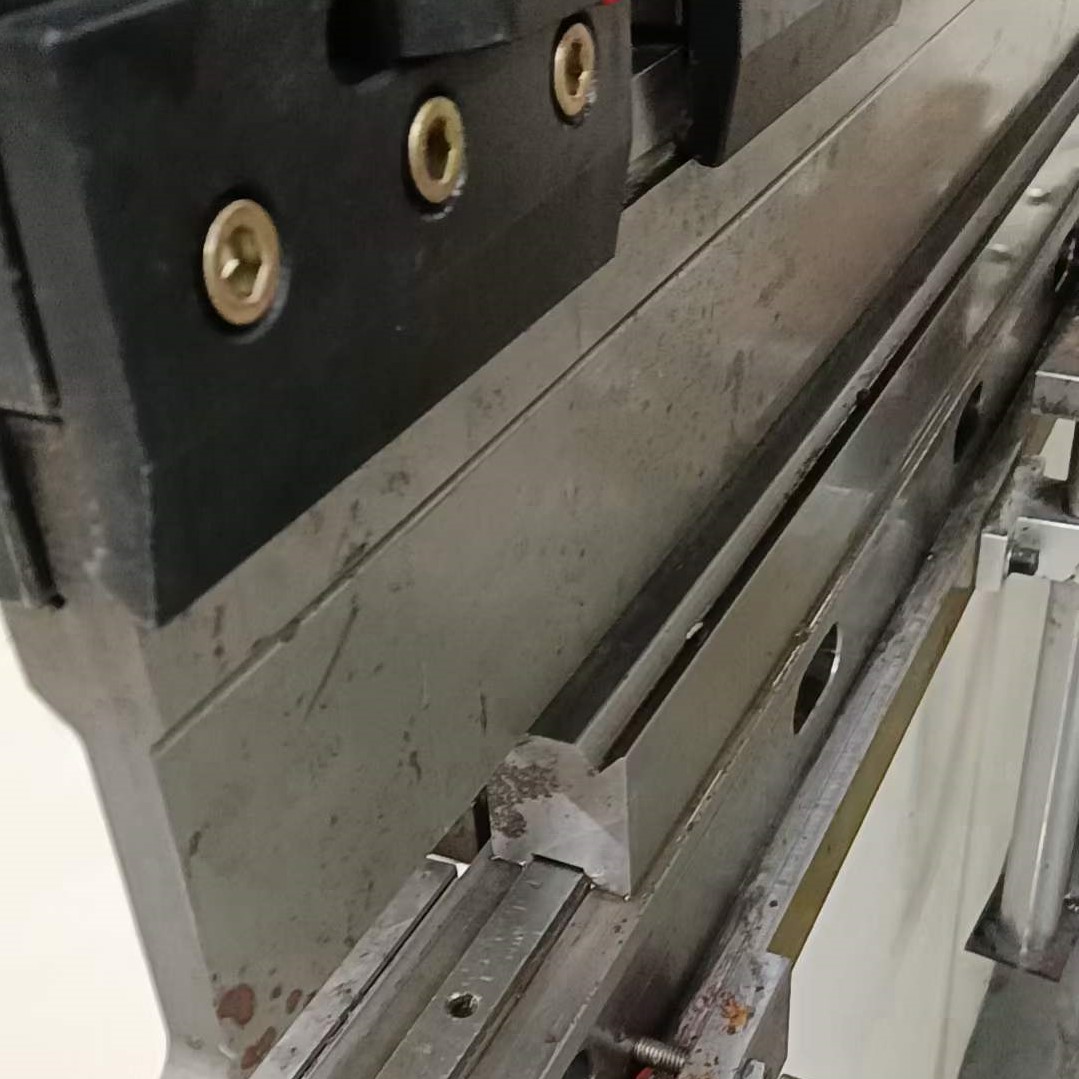

A muri: The die is a tool that provides the specific shape and angle into which the workpiece will be bent. The die is mounted on the bed of the press brake.

Lovi cu pumnul: The punch is the tool that comes into contact with the workpiece and applies the bending force. The punch is mounted on the ram and corresponds to the shape of the die.

Backgauge: The backgauge is a positioning system that helps to accurately position the workpiece for bending. It consists of adjustable fingers that can be set to the desired distance from the die to control the bend location.

Sistem de control: Modern 63T/2500 Serviceable Press Brakes are equipped with computer numerical control (CNC) systems that allow for precise programming of bending parameters, such as bend angle, bend length, and backgauge position.

Sistem hidraulic: Hydraulic 63T/2500 Serviceable Press Brakes use hydraulic cylinders to apply force to the ram, while mechanical press brakes use a mechanical linkage to generate force.

Foot Pedal or Dual Palm Buttons: These are safety controls that operators use to initiate the bending process, ensuring that their hands are clear of the bending area.
