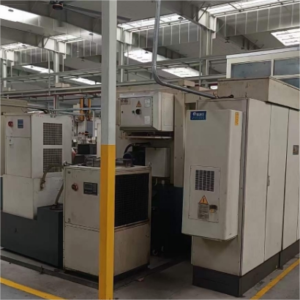

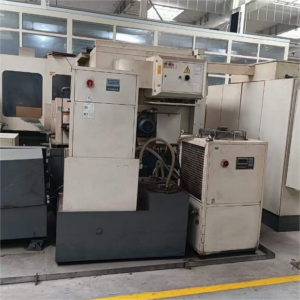

Used VIGERT YK7236A CNC Gear Grinding Machine For Sale

YK7236A CNC Gear Grinding Machine. The YYK7236A CNC Gear Grinding Machine is a specialized and precision machine tool designed for grinding the internal tooth profiles of gears. Gear grinding is a critical process used to produce highly accurate and tightly toleranced internal gears, often found in various industries such as automotive, aerospace, and manufacturing. Here’s a detailed description of the YK7236A CNC Gear Grinding Machine:

1. Giường và chân máy: The machine features a robust and rigid bed or base, typically made of high-quality cast iron or steel. This construction provides stability and minimizes vibrations during the gear grinding process, ensuring high precision.
2. Internal Gear Grinding: The machine is specifically designed for the precise grinding of internal gear teeth. It allows for the creation of accurate tooth profiles, involute shapes, and gear geometries within the internal bore of the workpiece.
3. Cơ chế giữ phôi: The machine is equipped with a workholding mechanism, such as a chuck or fixture, to securely hold the workpiece in place during grinding. The workpiece is typically mounted on a rotating spindle or fixture that can be adjusted for different workpiece sizes and types.
4. Đá mài: The machine is equipped with a specialized grinding wheel designed for internal gear grinding. These wheels are diamond or CBN (cubic boron nitride) abrasive wheels that can precisely shape the internal gear teeth.
5. Hệ thống điều khiển CNC: YK7236A CNC Gear Grinding Machine.The heart of the machine is its computer numerical control (CNC) system. The CNC system interprets G-code instructions and precisely controls the tool’s movement, workpiece rotation, and feed rates. It enables complex gear grinding operations and automation.
6. Chuyển động trục: The machine typically has multiple axes of movement, including axial (Z-axis) and radial (X and Y axes) movements. These axes control the grinding wheel’s position and orientation, allowing for precise grinding of the internal gear teeth.
7. Hệ thống làm mát: A coolant system is essential to dissipate heat generated during grinding and to flush away grinding swarf (metal particles). The coolant helps extend wheel life and improves surface finish.
8. Measurement and Probing: Some machines feature measurement and probing systems to inspect workpieces, measure dimensions, and ensure grinding accuracy.
9. Các tính năng an toàn: Internal gear grinding machines are equipped with safety features, including protective enclosures, interlocks, and emergency stop buttons to ensure operator safety.
10. Khả năng tương thích tự động hóa: These machines can often be integrated into automated manufacturing systems for continuous and unmanned operation.
