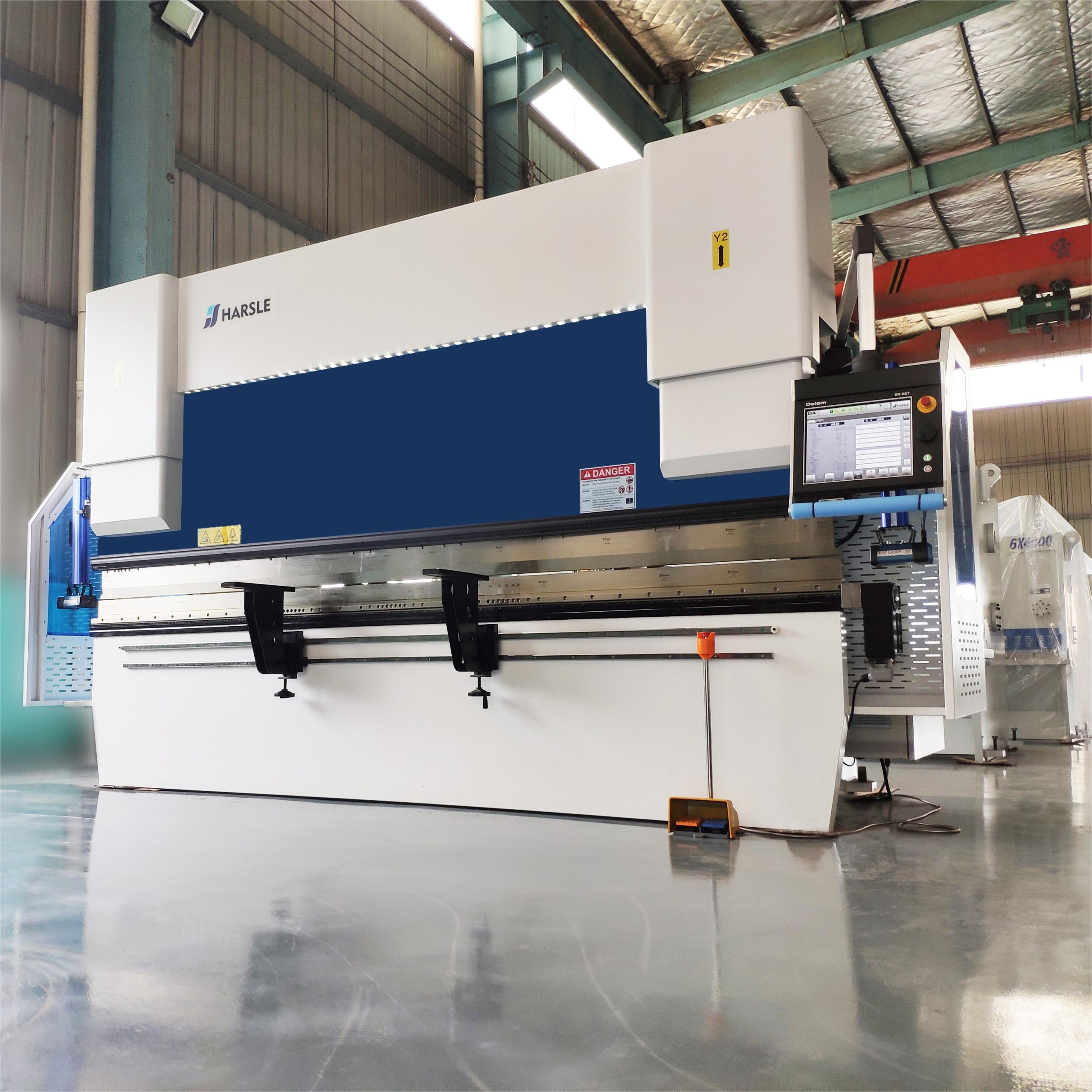

Used HARSLE 160T4000 Hybrid Bending Machine For Sale

A HARSLE 160T4000 Hybrid Bending Machine, also referred to as a press brake or simply a bender, is a versatile industrial tool used to bend and shape sheet metal and other thin materials. It employs mechanical or hydraulic force to apply pressure to a workpiece, causing it to deform and adopt a desired angle or curvature. Bending machines are widely utilized in various industries, including metal fabrication, automotive manufacturing, aerospace, construction, and electronics.HARSLE 160T4000 Hybrid Bending Machine

Here’s a detailed breakdown of the components and functionalities of a typical bending machine:HARSLE 160T4000 Hybrid Bending Machine

1. Rám: The frame provides the structural support and rigidity necessary to withstand the forces generated during the bending process. It is typically made of heavy-duty steel or other robust materials to ensure stability and precision.
2. Upper Beam (Ram): The upper beam, also known as the ram, is the moving part of the bending machine that applies force to the workpiece. It is usually hydraulically powered and equipped with a variety of tooling options to accommodate different bending requirements.
3. Lower Beam (Bed): The lower beam, or bed, serves as the stationary support for the workpiece during bending. It is often equipped with V-shaped grooves or other features to facilitate accurate positioning and alignment of the material.
4. Nástroje: Bending machines utilize a range of tooling options, including punches, dies, and V-blocks, to shape the workpiece according to the desired bend angle and radius. These tooling components are interchangeable and can be customized to suit specific bending applications.HARSLE 160T4000 Hybrid Bending Machine

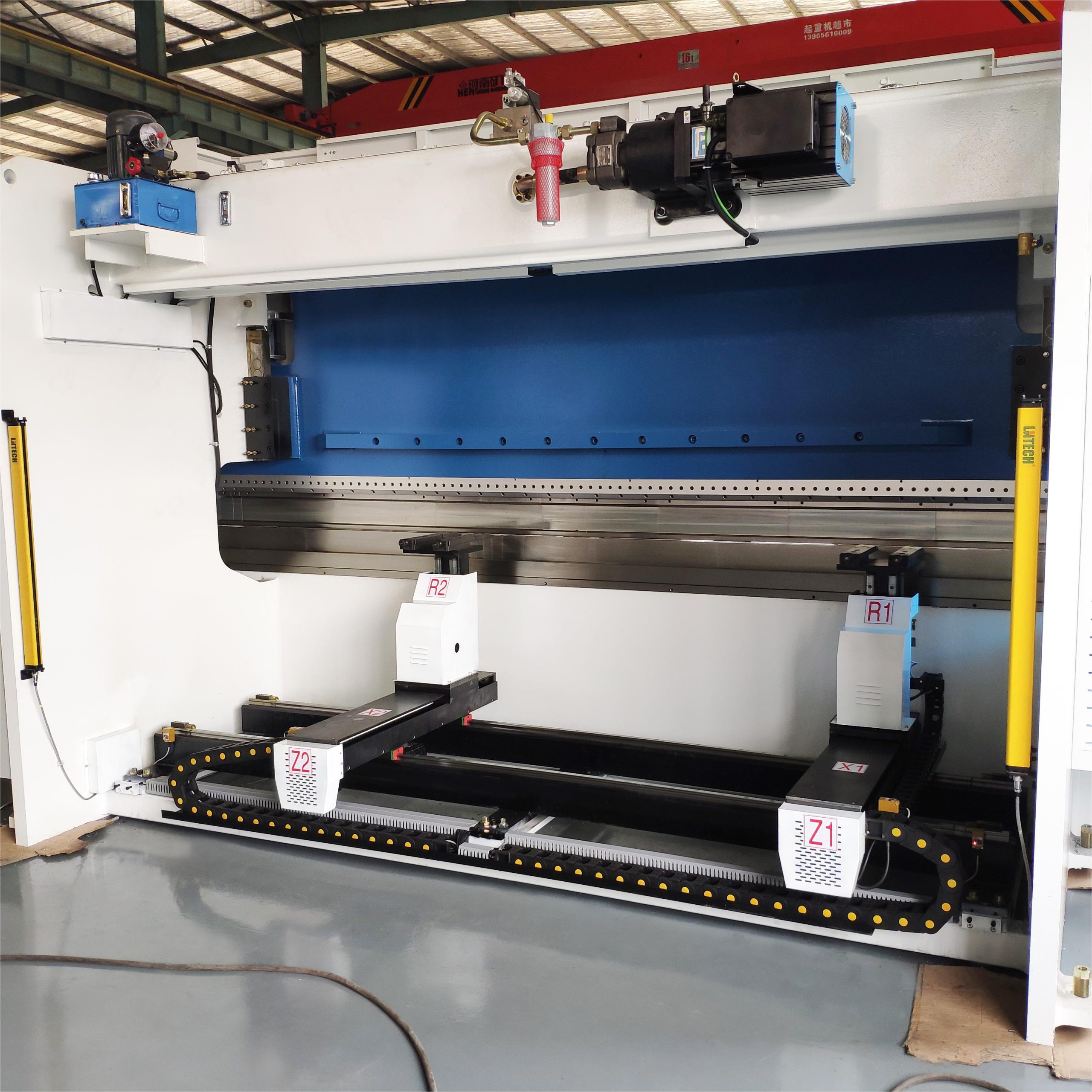

5. Zpětný rozchod: A back gauge is a positioning device located behind the bending area that helps ensure consistent bend accuracy and repeatability. It can be manually adjusted or controlled automatically via a digital interface, allowing precise positioning of the workpiece relative to the bending tool.HARSLE 160T4000 Hybrid Bending Machine
6. Kontrolní systém: Modern bending machines are equipped with advanced control systems that enable operators to program and adjust various parameters such as bending angle, depth, and speed. These systems may feature touchscreen interfaces, graphical displays, and automated bending sequences for enhanced productivity and ease of use.

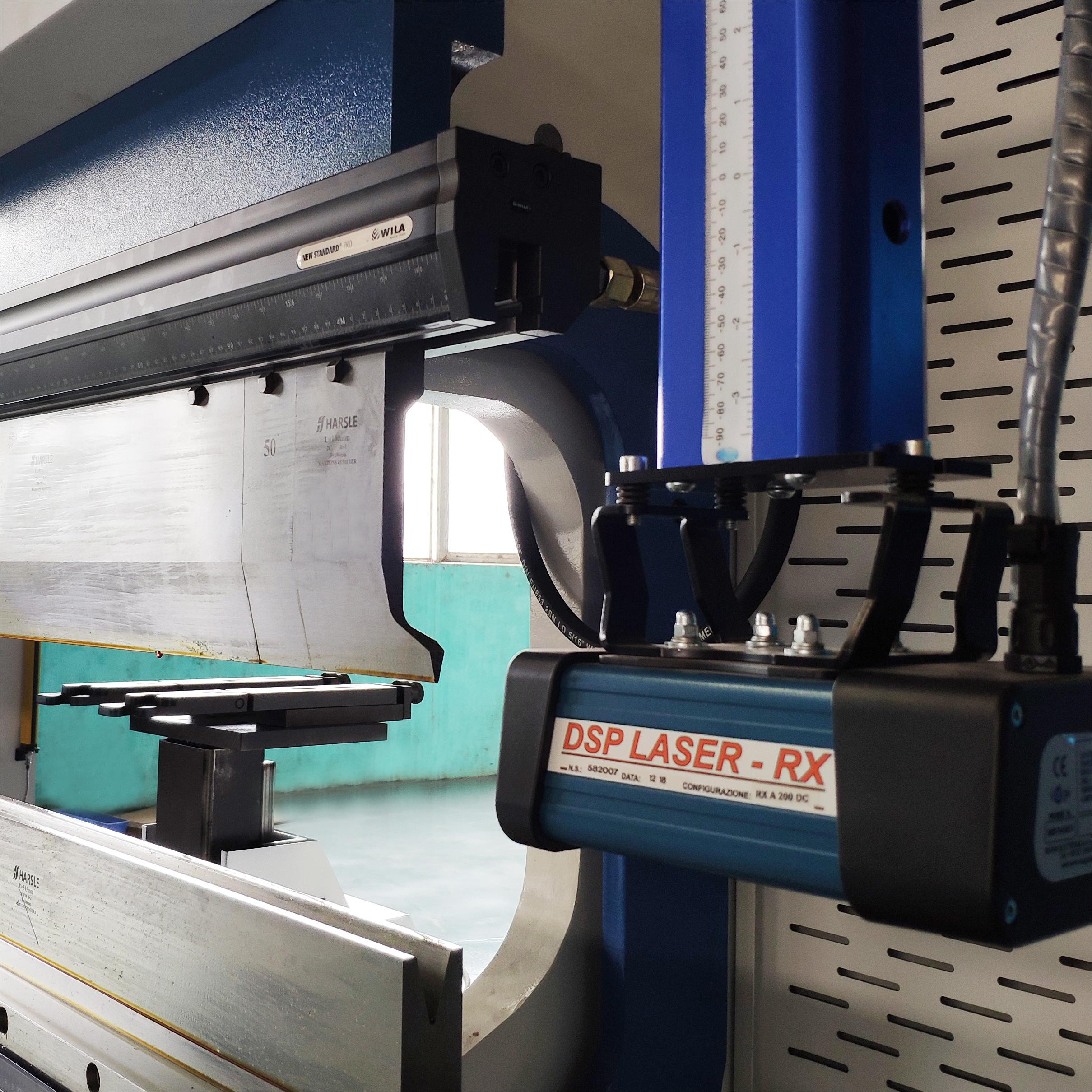

7. Bezpečnostní funkce: Bending machines are equipped with safety measures such as interlocking guards, light curtains, and emergency stop buttons to protect operators from potential hazards associated with the bending process.

Bending machines come in various configurations, including manual, semi-automatic, and fully automated models, catering to different production volumes and complexity of bending tasks. Whether it’s simple bends or intricate forming operations, bending machines offer precise control, efficiency, and versatility in shaping sheet metal and other materials to meet the demands of modern manufacturing processes.
