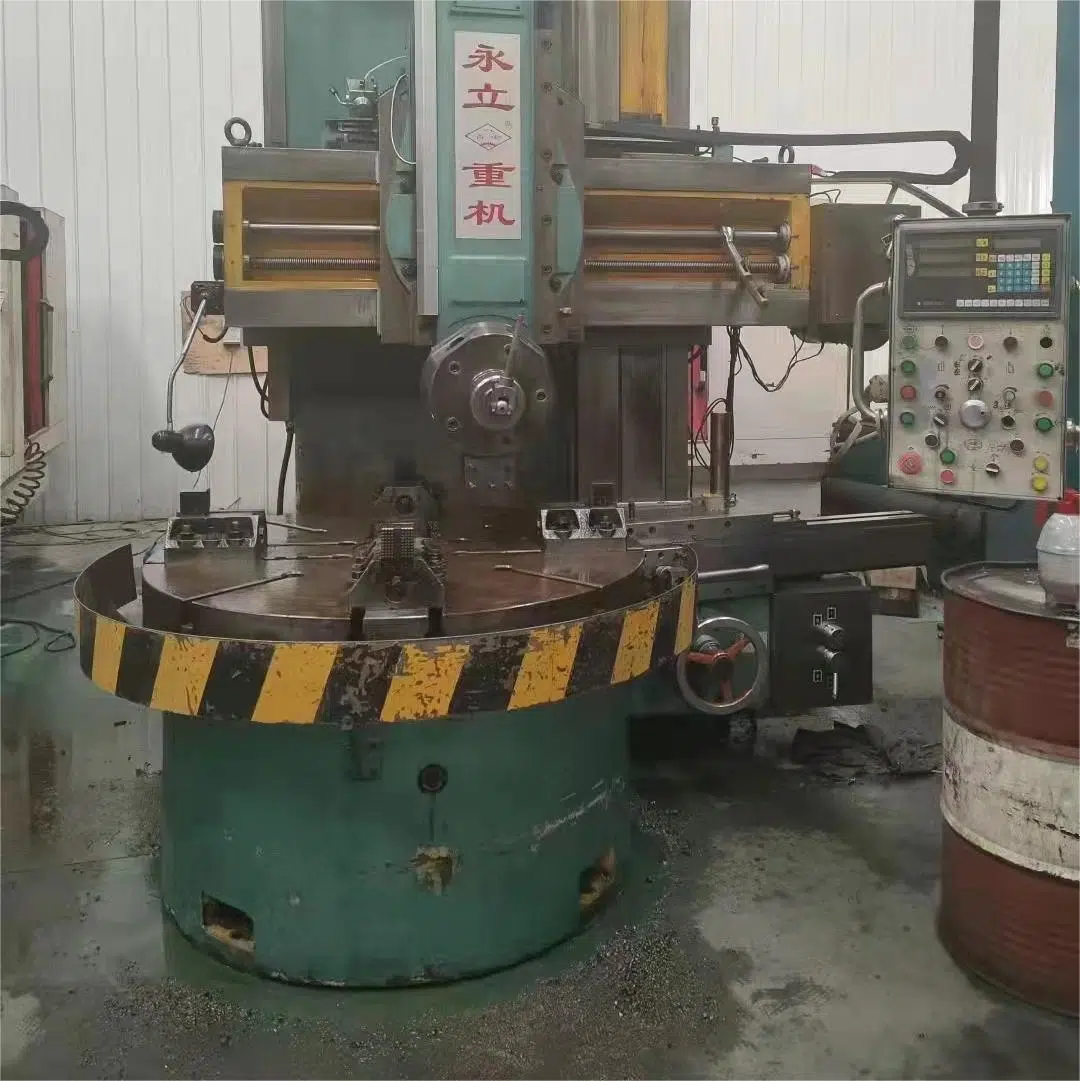

Použitý jednosloupový vertikální soustruh VIGERT C5116 na prodej

A Single Column Vertical Lathe, also known as a Vertical Turning Lathe (VTL) or Vertical Boring Mill (VBM), is a specialized type of machine tool used in machining operations. It is designed for the turning of large, heavy workpieces that have a relatively large diameter and are vertically oriented. This type of lathe is particularly useful for tasks such as creating symmetrical cylindrical shapes, facing surfaces, boring holes, and performing other precision operations on large and heavy components.

Key features and characteristics of a Single Column Vertical Lathe include:

1. Vertical Orientation: A Single Column Vertical Lathe,Unlike traditional horizontal lathes, where the workpiece is held horizontally and rotated, a vertical lathe holds the workpiece vertically and rotates it around a vertical axis.
2. Single Column Design: The machine features a single, sturdy column that provides the primary support for the tool head and workpiece. This design allows for easy access to the workpiece from various angles.
3. Large Workpieces: Single Column Vertical Lathes are capable of handling very large and heavy workpieces, often with diameters ranging from several inches to several feet.
4. Heavy-Duty Construction: Given the size and weight of the workpieces they handle, these lathes are constructed to be robust and durable, with the ability to withstand the forces generated during machining.
5. Tool Head: The tool head, which holds cutting tools and tool holders, is mounted on a crossrail that moves vertically along the column. This movement allows for different depths of cuts and machining operations.
6. Chuck or Faceplate: The workpiece is typically held in place by a chuck or a faceplate attached to the spindle. The spindle is driven by a motor and can rotate the workpiece at various speeds.
7. Řezné nástroje: Various cutting tools, such as turning tools, boring bars, and threading tools, can be mounted on the tool head. These tools are used to shape the workpiece according to the desired specifications.
8. Versatile Machining: Single Column Vertical Lathes can perform a wide range of machining operations, including turning, facing, tapering, threading, and grooving. They are often used in industries like aerospace, automotive, energy, and heavy machinery manufacturing.
9. Automatizace: Some modern versions of these lathes may be equipped with CNC (Computer Numerical Control) systems, allowing for precise and automated control of the machining process.
