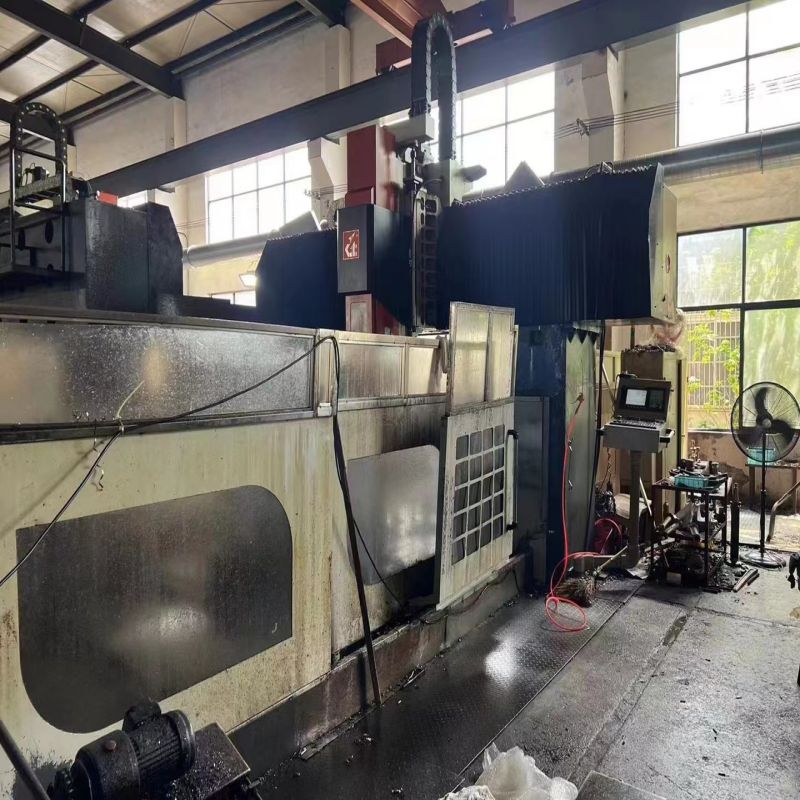

Ojeté Portálové obráběcí centrum VIGERT LM-3022 na prodej

The LM-3022 Gantry Machining Center is a precision machine tool designed for large-scale machining applications, typically used in industries such as aerospace, automotive, and heavy machinery manufacturing. This type of machining center is known for its ability to handle large workpieces and perform high-precision machining operations. Here’s a description of the LM-3022 Gantry Machining Center:

1. Machine Bed and Frame: The LM-3022 features a sturdy and rigid machine bed and frame made of high-quality materials such as cast iron or steel. This construction provides stability and minimizes vibrations during machining.
2. Design portálu: LM-3022 Gantry Machining Center. The distinctive feature of this machining center is its gantry design, where the crossbeam is supported by vertical columns at each end. This gantry structure provides exceptional rigidity and allows for the machining of large and heavy workpieces.
3. Pracovní stůl: LM-3022 Gantry Machining Center. The worktable is a large, flat surface on which the workpiece is secured. It can be customized to accommodate various workpiece sizes and shapes. The worktable may also have T-slots or other fixtures for clamping workpieces securely in place.
4. Měnič nástrojů: LM-3022 Gantry Machining Center. The LM-3022 typically comes equipped with an automatic tool changer. This tool changer can hold a variety of cutting tools, allowing for a wide range of machining operations without manual tool changes. The tool changer is controlled by the machine’s CNC system.
5. CNC řídicí systém: The heart of the machining center is its CNC control system. It interprets computer-generated G-code instructions to control the movement of the cutting tools and workpiece. The CNC system ensures precision and accuracy in machining.
6. Vřeteno: The machining center is equipped with a high-speed spindle motor. The spindle can rotate at various speeds and is capable of accommodating different tool holders and cutting tools.
7. Pohyby osy: The LM-3022 typically has multiple axes of movement, including X, Y, and Z axes. Some models may have additional rotary or tilting axes for complex machining tasks.
8. Chladicí systém: To maintain cutting tool efficiency and dissipate heat, the machining center is equipped with a coolant system that delivers cutting fluid to the machining area.
9. Dopravník třísek: A chip conveyor removes chips and waste material generated during the machining process, keeping the workspace clean and safe.
10. Bezpečnostní funkce: Machining centers like the LM-3022 are equipped with safety features such as emergency stop buttons, protective enclosures, and interlocks to ensure operator safety.
11. Vysoká přesnost: These machines are known for their high precision and repeatability, making them suitable for producing intricate and accurate parts with tight tolerances.
12. Large Workpiece Capacity: The “3022” in the model name suggests the machine’s maximum working area or travel dimensions in millimeters, which can be quite large, allowing for the machining of sizable workpieces.
13. Automation Compatibility: Some models of gantry machining centers can be integrated into automated manufacturing systems for continuous and unmanned operation.
