Used HARSLE WC67K-100T3200 Press Brake For Sale

HARSLE WC67K-100T3200 Press Brake s are machine tools used in metalworking and manufacturing processes to bend and shape sheet metal. They’re essential in various industries, including automotive, aerospace, construction, and electronics. Here’s a detailed overview:

1. Operation:

• Bending Process: HARSLE WC67K-100T3200 Press Brake s bend sheet metal by clamping it between a punch and die and applying force to deform the material. The metal is typically bent around a straight axis to achieve the desired angle.
• Types of Bends: HARSLE WC67K-100T3200 Press Brake s can perform various types of bends, including V-bending, U-bending, offset bending, and coining.

2. Types:

• Hydraulic Press Brakes: These use hydraulic cylinders to apply force for bending. They offer high force capabilities and precision control over the bending process.
• Mechanical Press Brakes: Mechanical press brakes use a mechanical lever or crank system to generate force for bending. They’re known for their high speed but may lack the precision of hydraulic brakes.
• Electric Press Brakes: These utilize electric servo motors for force generation, offering precise control, energy efficiency, and lower maintenance compared to hydraulic or mechanical brakes.

3. Components:

• Frame: The frame provides structural support for the press brake and houses other components.
• Ram: The ram applies force to the sheet metal through the punch, causing it to bend against the die.
• Bett: The bed supports the bottom of the sheet metal during bending and houses the lower die.
• Werkzeuge: Punches and dies are the tooling components that shape the sheet metal. They come in various sizes and shapes to accommodate different bending requirements.
• Backgauge: A backgauge system helps position the sheet metal accurately for bending, ensuring consistent results.

4. Control Systems:

• Manual Control: Basic HARSLE WC67K-100T3200 Press Brake s may have manual controls operated by hand or foot pedals.

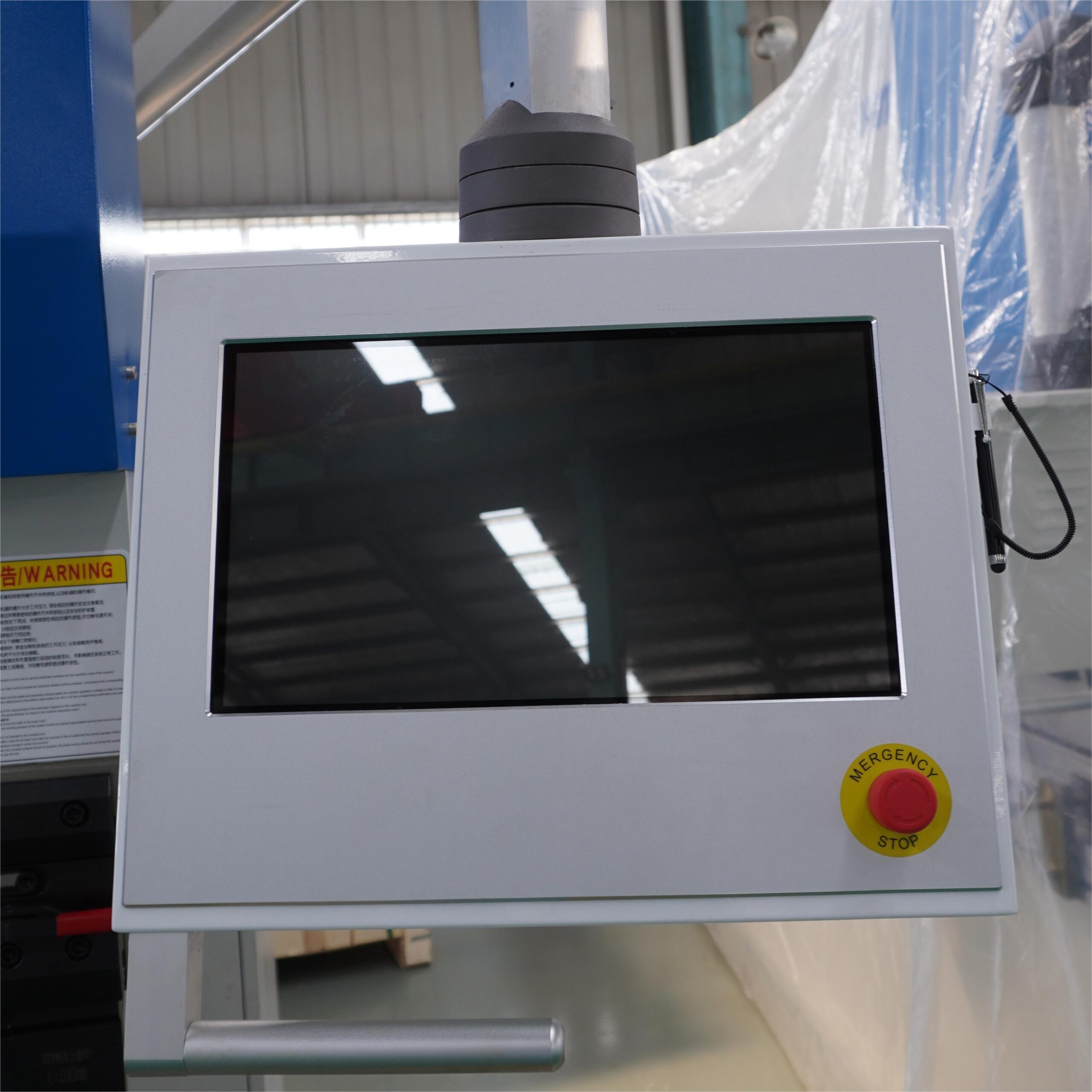

• CNC-Steuerung: Most modern press brakes feature computer numerical control (CNC) systems. These allow for precise programming of bending parameters, such as bend angle, depth, and backgauge position.

5. Safety Features:

• Light Curtains: These detect the presence of hands or objects near the point of operation and stop the machine to prevent accidents.
• Safety Interlocks: Interlocks ensure that certain safety measures, such as guarding, are in place before the machine can operate.
• Two-Hand Controls: Operators must use both hands to initiate the bending cycle, reducing the risk of accidental activation.

HARSLE WC67K-100T3200 Press Brakes are crucial for the efficient production of a wide range of metal components and structures. Their versatility, precision, and automation capabilities contribute significantly to modern manufacturing processes.
