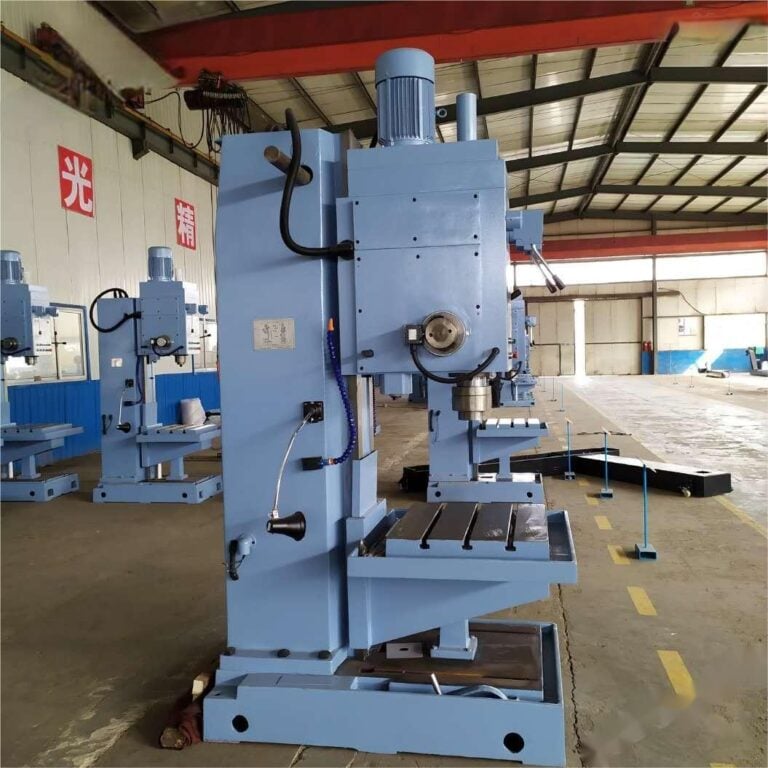

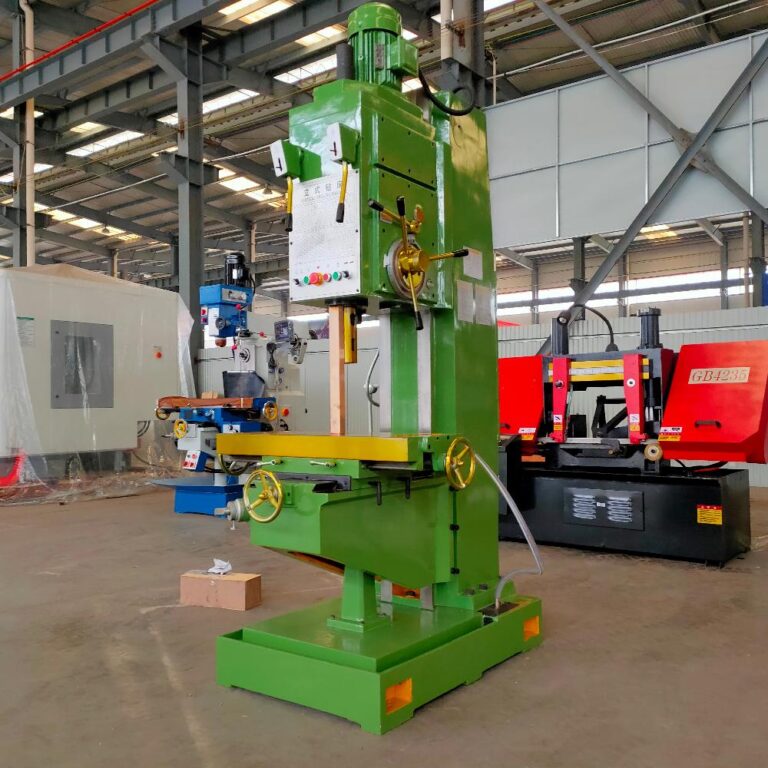

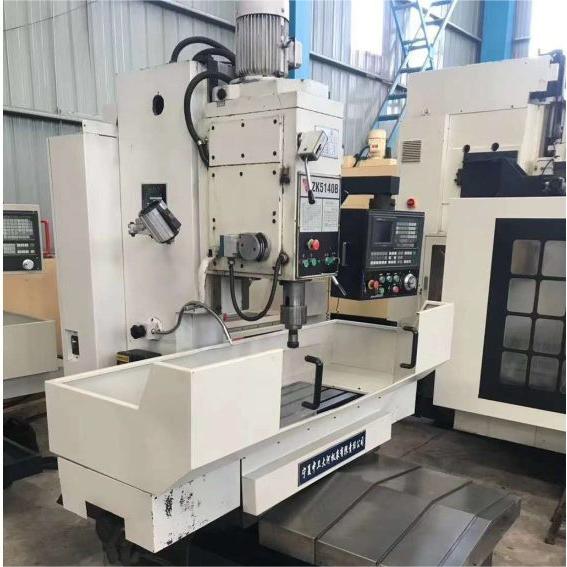

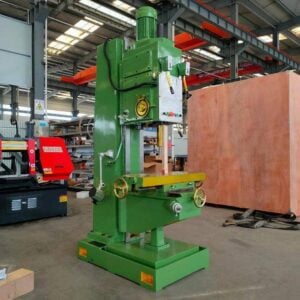

Vertical Drilling Machine

Using a vertical drilling machine involves several steps to ensure safe and efficient operation. Here’s a general guide on how to use a vertical drilling machine:

1. Preparation:

   • Wear appropriate personal protective equipment (PPE) such as safety glasses, gloves, and hearing protection.
   • Ensure the machine is properly grounded and in good working condition.
   • Secure the workpiece firmly on the machine table using clamps or a vise.

2. Adjustment:

   • Adjust the spindle speed and feed rate according to the material being drilled and the size of the drill bit.
   • Position the drill bit in the chuck and tighten it securely using the chuck key.
   • Adjust the table height and angle as needed to align the drill bit with the desired drilling location on the workpiece.

3. Drilling:

   • Turn on the machine and allow it to reach the desired speed.
   • Lower the drill bit towards the workpiece using the handwheel or lever until it makes contact.
   • Apply steady pressure on the feed handle to begin drilling.
   • Maintain a consistent feed rate and avoid forcing the drill bit to prevent overheating or breakage.
   • Use coolant or cutting fluid to lubricate the drill bit and reduce friction, especially when drilling metal.

A vertical drilling machine, also known as a drill press, is a stationary machining tool used to create holes in various materials such as metal, wood, plastic, and composites. Here’s how a typical vertical drilling machine works:

1. Workpiece Setup:

   • The operator secures the workpiece to the machine table using clamps, vises, or fixtures to ensure it remains stable during drilling.

2. Tool Selection:

   • The operator selects the appropriate drill bit based on the desired hole size, material, and cutting conditions. Drill bits come in various sizes and types to accommodate different drilling applications.

3. Tool Setup:

   • The selected drill bit is inserted into the chuck of the drill press spindle and tightened securely using a chuck key or keyless chuck mechanism. The drill bit should be properly aligned and centered to ensure accurate drilling.

4. Adjustment and Alignment:

   • The operator adjusts the height of the drill press table and positions the workpiece underneath the drill bit. The table can be raised or lowered using a crank or lever mechanism to accommodate different workpiece heights.

5. Spindle Speed and Feed Rate:

   • The operator selects the appropriate spindle speed and feed rate for the drilling operation based on factors such as material type, drill bit size, and cutting conditions. Most drill presses feature multiple speed settings that can be adjusted using a pulley system or electronic speed control.

Vertical drilling machines are produced by various manufacturers renowned for their precision engineering and reliability in the machining industry. Some notable brands that offer vertical drilling machines include:

1. Jet Tools
2. Clausing Industrial, Inc.
3. Baileigh Industrial
4. Wilton Tools
5. Knuth Machine Tools
6. Grizzly Industrial
7. Eisen Machinery
8. KENT USA
9. Hafco Metalmaster
10. Quantum Machinery Group
