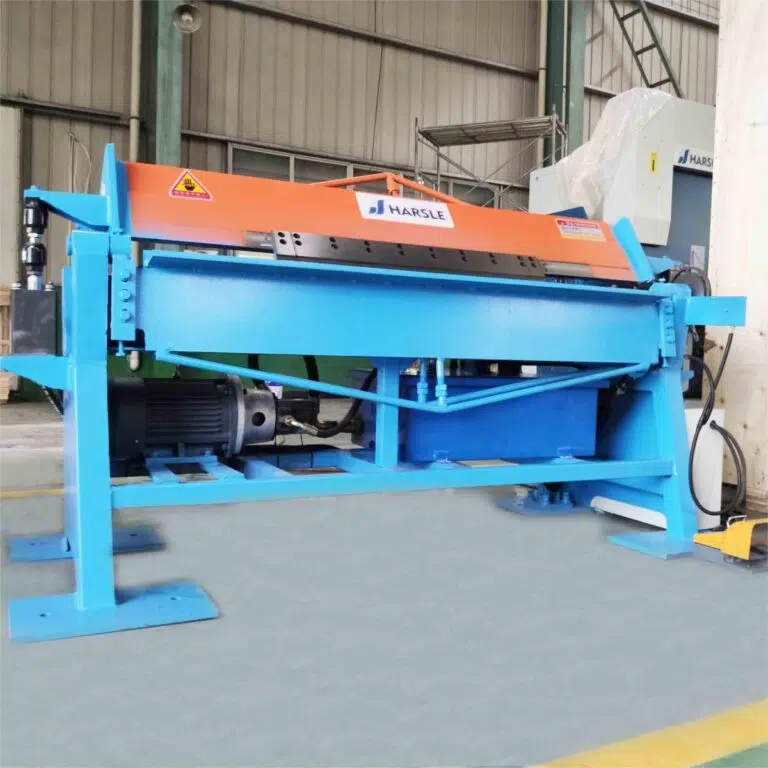

HARSLE PB1500 Folding Machine
HARSLE PB1500 Folding Machine
Compare
Quick view
Add to wishlist
ADD TO QUOTE

Used HARSLE PB1500 Folding Machine For Sale

-20%
HARSLE PB2500 Folding Machine
HARSLE PB2500 Folding Machine
Compare
Quick view
Add to wishlist
ADD TO QUOTE

Used HARSLE PB2500 Folding Machine For Sale

USED FOlDING MACHINE FOR SALE

Our folding machine is a state-of-the-art tool designed for precision bending and folding of sheet metal and other materials. Ideal for a wide range of industrial and commercial applications, this machine offers unparalleled accuracy, efficiency, and versatility. Whether you’re in HVAC, metal fabrication, or custom manufacturing, this folding machine is engineered to meet your needs with superior performance and ease of use.

FAQ

Folding machines are versatile equipment used to fold and bend sheet metal and other materials with precision. Ideal for manufacturing and metalworking, they improve productivity and accuracy in producing HVAC components, metal enclosures, and custom parts. Key benefits include high precision, user-friendly operation, and robust construction, making them essential for efficient and reliable metal fabrication.

A folding machine is an industrial tool used to bend, fold, and shape sheet metal or other flexible materials into desired forms. These machines are crucial in various manufacturing processes, particularly in metalworking industries where precise and efficient shaping of metal components is essential. Folding machines are designed to handle a range of materials, including aluminum, steel, and other alloys, making them versatile for different applications.

Key Functions of a Folding Machine

  1. Sheet Metal Bending:

    • The primary function is to create bends in sheet metal to form angles, channels, and complex shapes.
    • Used to produce components with specific dimensions and angles, such as panels, brackets, and enclosures.

  2. Material Folding:

    • In addition to bending, these machines can fold material to create seams and edges.
    • Commonly used in the production of ducts, boxes, and various metal parts.

  3. Custom Forming:

    • Capable of creating intricate and custom forms required for specific applications.
    • Ideal for producing parts with precise geometries and complex contours.

Types of Folding Machines

  1. Manual Folding Machines:

    • Operated by hand, suitable for small-scale production and simple bending tasks.
    • Used in workshops or for projects requiring a lower volume of production.

  2. CNC Folding Machines:

    • Controlled by computer numerical control (CNC), allowing for precise, automated bending and folding.
    • Ideal for high-volume production and applications requiring complex or repeatable bending patterns.

  3. Hydraulic Folding Machines:

    • Use hydraulic systems to apply significant force for bending thicker or harder materials.
    • Common in industries where heavy-duty and high-capacity folding is needed.

  4. Electric Folding Machines:

    • Operate using electric motors and are known for their energy efficiency and precision.
    • Suitable for a variety of materials and commonly used in both small and large manufacturing setups.

Key Components of a Folding Machine

  1. Clamping Beam:

    • Holds the sheet metal in place during the folding process.
    • Ensures stability and accuracy by preventing movement of the material.

  2. Folding Beam:

    • The part of the machine that moves to create the bend in the material.
    • Can be adjusted to achieve different angles and types of folds.

  3. Back Gauge:

    • A device that positions the material accurately to ensure consistent bends.
    • Helps maintain precise measurements and alignment for each fold.

  4. Control System:

    • Includes manual levers, hydraulic controls, or CNC interfaces for operating the machine.
    • Allows for precise control of the folding process and adjustment of parameters like angle and force.

Applications of Folding Machines

  1. HVAC Industry:

    • Used to produce ducts, fittings, and enclosures for heating, ventilation, and air conditioning systems.

  2. Automotive Manufacturing:

    • Essential for creating parts like body panels, brackets, and structural components.

  3. Aerospace Industry:

    • Produces precision parts and assemblies required for aircraft and aerospace applications.

  4. Metal Fabrication:

    • Employed in the creation of custom metal components for various industrial applications, including construction and machinery.

  5. Electrical Enclosures:

    • Used to fold and form metal boxes, panels, and enclosures for electrical equipment and devices.

Advantages of Using a Folding Machine

  1. High Precision:

    • Provides accurate and consistent bends, crucial for applications requiring precise dimensions.

  2. Versatility:

    • Capable of handling a wide range of materials and thicknesses, making them adaptable for various industries.

  3. Efficiency:

    • Speeds up the production process by allowing quick and accurate bending and folding operations.

  4. Reduced Material Waste:

    • Precision bending minimizes errors and reduces material wastage, leading to cost savings.

  5. Improved Safety:

    • Equipped with safety features to protect operators and ensure safe working conditions.

Conclusion

Folding machines are indispensable in modern manufacturing for their ability to efficiently shape and form metal components. Whether used in small workshops or large industrial settings, these machines enhance productivity, precision, and versatility in metalworking processes. Investing in the right folding machine can significantly impact the quality and efficiency of production, making it a vital tool for businesses in various sectors.

Using a folding machine involves several steps to ensure precise and efficient bending of sheet metal or other materials. Here’s a comprehensive guide on how to use a folding machine safely and effectively:

1. Preparation

  1. Read the Manual:

    • Familiarize yourself with the machine’s user manual to understand its features, controls, and safety precautions.

  2. Safety Gear:

    • Wear appropriate personal protective equipment (PPE), such as gloves, safety glasses, and ear protection, to protect against potential hazards.

  3. Inspect the Machine:

    • Check for any signs of damage or wear and ensure all components are in good working condition.

  4. Select the Material:

    • Choose the appropriate material and thickness for the folding process. Ensure the material is compatible with the machine’s capacity.

  5. Measure and Mark:

    • Measure the material and mark the bend lines accurately using a ruler or tape measure and a marker.

2. Setting Up the Machine

  1. Adjust the Clamping Beam:

    • Set the clamping beam to hold the material securely. The clamping force should be enough to prevent movement without damaging the material.

  2. Position the Back Gauge:

    • Adjust the back gauge to the desired position to ensure consistent and precise bends. The back gauge helps position the material accurately.

  3. Select the Bending Angle:

    • Set the folding beam to the desired bending angle. This can be adjusted manually or through a CNC interface, depending on the machine type.

  4. Install the Tools:

    • Choose the appropriate tooling and dies for the specific bend. Install them securely in the machine.

  5. Set the Folding Parameters:

    • Input the folding parameters, such as the bending angle and fold length, into the machine’s control panel or CNC system.

3. Loading the Material

  1. Place the Material:

    • Position the material on the machine’s worktable, aligning it with the marked bend line and the back gauge.

  2. Clamp the Material:

    • Activate the clamping beam to hold the material firmly in place. Ensure it is secure to avoid slipping during the folding process.

  3. Double-Check Alignments:

    • Verify that the material is aligned properly with the back gauge and the bend line before proceeding.

4. Operating the Machine

  1. Initiate the Folding Process:

    • Start the machine by pressing the appropriate control button or lever. For CNC machines, initiate the programmed sequence.

  2. Monitor the Bend:

    • Observe the folding process to ensure it is proceeding correctly. Make any necessary adjustments if the material is not bending as expected.

  3. Complete the Bend:

    • Allow the machine to complete the bending cycle fully. Ensure the fold is consistent with the desired angle and length.

  4. Release the Material:

    • Once the bend is complete, deactivate the clamping beam and carefully remove the material from the machine.

5. Inspecting and Adjusting

  1. Inspect the Fold:

    • Check the accuracy of the bend, ensuring it matches the required specifications. Use measuring tools to verify the angles and dimensions.

  2. Make Adjustments:

    • If necessary, make adjustments to the machine settings or reposition the material for additional folds or corrections.

  3. Repeat the Process:

    • For multiple bends, repeat the steps, repositioning the material as needed to achieve the desired shape and configuration.

6. Final Steps and Maintenance

  1. Clean the Machine:

    • Remove any debris or material scraps from the machine. Regular cleaning helps maintain the machine’s efficiency and longevity.

  2. Perform Maintenance:

    • Conduct routine maintenance, such as lubricating moving parts, checking for wear, and replacing worn components as needed.

  3. Store Tools Properly:

    • Safely store any tools or dies used during the folding process to prevent damage and ensure they are ready for future use.

  4. Turn Off the Machine:

    • Power down the machine and secure it according to the manufacturer’s recommendations.

Safety Tips

  • Never Operate Alone: Always work with a partner or ensure someone is aware of your operation for safety reasons.
  • Keep Hands Clear: Avoid placing hands near moving parts during operation to prevent injuries.
  • Follow Lockout Procedures: Use lockout/tagout procedures when performing maintenance to prevent accidental machine activation.

Conclusion

Using a folding machine effectively involves careful preparation, precise setup, and attentive operation. By following these steps and adhering to safety protocols, you can achieve accurate and consistent bends in your sheet metal projects, enhancing productivity and quality in your manufacturing processes. Regular maintenance and proper use of the machine will ensure its longevity and reliable performance.

Selecting the right folding machine for your needs involves considering various factors, including the type of materials you will work with, the complexity of the folds required, and the machine’s features. Here is a comprehensive guide to help you choose the most suitable folding machine for your applications.

1. Identify Your Needs

  1. Material Type and Thickness:

    • Determine the types of materials you will be folding (e.g., sheet metal, aluminum, stainless steel).
    • Consider the maximum and minimum thicknesses of the materials. Ensure the machine can handle the range of thicknesses you require.

  2. Folding Requirements:

    • Identify the types of folds you need, such as straight bends, complex shapes, or hems.
    • Consider the maximum folding length and angle requirements for your projects.

  3. Production Volume:

    • Assess the volume of folding tasks you will perform. High-volume production may require a machine with higher speed and automation capabilities.

2. Types of Folding Machines

  1. Manual Folding Machines:

    • Best for small-scale operations or simple folding tasks.
    • Lower initial cost but requires more manual effort and time.

  2. Hydraulic Folding Machines:

    • Provide high force and are suitable for thicker or tougher materials.
    • Ideal for medium to large-scale production with moderate complexity.

  3. CNC Folding Machines:

    • Controlled by computer numerical control, offering high precision and automation.
    • Suitable for complex, high-volume production with intricate folding requirements.

  4. Electric Folding Machines:

    • Use electric motors for precise and energy-efficient operation.
    • Good for versatile and medium-scale production with a focus on energy savings.

3. Key Features to Consider

  1. Machine Capacity:

    • Ensure the machine’s capacity matches the maximum material thickness and length you will be working with.
    • Check the machine’s maximum bending force to ensure it can handle the toughest materials in your projects.

  2. Precision and Accuracy:

    • Look for machines with high precision and repeatability for consistent fold quality.
    • CNC machines typically offer the highest precision, with programmable settings for exact bends.

  3. Ease of Use:

    • Consider the machine’s user interface and control system. Look for intuitive and easy-to-operate controls.
    • Machines with programmable settings and pre-set folding programs can save time and reduce errors.

  4. Speed and Efficiency:

    • Assess the machine’s folding speed and cycle time, especially for high-volume production.
    • Look for features that enhance efficiency, such as automated material handling and quick-change tooling.

  5. Versatility:

    • Ensure the machine can handle various materials and fold types required for your projects.
    • Look for machines with adjustable settings and interchangeable tooling for greater flexibility.

  6. Safety Features:

    • Check for safety mechanisms, such as emergency stop buttons, safety guards, and light curtains.
    • Ensure the machine complies with relevant safety standards and regulations.

4. Budget and Cost Considerations

  1. Initial Cost:

    • Compare the initial purchase cost of different machines. Manual machines are typically cheaper, while CNC machines are more expensive but offer greater capabilities.

  2. Operating Costs:

    • Consider the ongoing costs of operating the machine, including energy consumption, maintenance, and potential downtime.

  3. Value for Money:

    • Evaluate the machine’s features, capabilities, and durability relative to its cost. Invest in a machine that offers the best long-term value for your specific needs.

5. Brand and Supplier Considerations

  1. Reputation and Reliability:

    • Choose a reputable brand known for quality and reliability. Read reviews and ask for recommendations from industry peers.
    • Check the supplier’s reputation for customer service and support.

  2. Warranty and Support:

    • Look for machines with comprehensive warranties to cover repairs and replacements.
    • Ensure the supplier offers good after-sales support, including training, maintenance, and spare parts availability.

  3. Customization Options:

    • Consider whether the supplier offers customization options to tailor the machine to your specific requirements.

6. Space and Installation Requirements

  1. Machine Size and Footprint:

    • Ensure the machine fits within the available space in your workshop or production area.
    • Consider the layout and workflow to ensure efficient material handling and operator access.

  2. Installation Needs:

    • Check the installation requirements, such as electrical connections, foundation needs, and ventilation.
    • Plan for any modifications or preparations needed to accommodate the machine.

7. Future-Proofing and Scalability

  1. Future Expansion:

    • Choose a machine that can grow with your business. Consider potential future needs for increased capacity or new folding applications.
    • Look for machines with upgrade options or modular components that allow for future expansion.

  2. Technology and Innovation:

    • Opt for machines with the latest technology and features that can improve efficiency and quality.
    • Stay informed about advancements in folding machine technology to make an informed choice.

Conclusion

Selecting the right folding machine involves balancing your immediate needs with future requirements, considering factors such as material type, production volume, and budget. By carefully evaluating these aspects and choosing a machine that offers the right combination of features, capacity, and value, you can enhance your production capabilities and achieve consistent, high-quality results in your metalworking projects. Consulting with industry professionals and machine suppliers can also provide valuable insights and help you make the best decision for your specific needs.

A folding machine is a piece of equipment used in metalworking to bend or fold sheet metal and other materials into precise angles and shapes. It operates by clamping the material and then applying force to bend it along a predetermined line. Below is a detailed explanation of how a folding machine works, including its key components and the step-by-step process involved in folding.

Key Components of a Folding Machine

  1. Clamping Beam:

    • Holds the material securely in place during the folding process.
    • Prevents the material from slipping or moving, ensuring accurate bends.

  2. Folding Beam:

    • Moves upward to fold the material along the clamped line.
    • Adjustable to create various angles and types of folds.

  3. Back Gauge:

    • Positions the material accurately for the fold.
    • Ensures consistent bends by providing a reference point for material placement.

  4. Control System:

    • Can be manual, hydraulic, or CNC (Computer Numerical Control).
    • Controls the machine’s operations, including clamping, folding, and positioning.

  5. Tooling and Dies:

    • Tools that come into contact with the material to form specific shapes.
    • Can be changed to accommodate different folding requirements.

Step-by-Step Process of Folding

  1. Material Preparation:

    • Measure and mark the bend lines on the material using a ruler or tape measure.
    • Select the appropriate tools and dies for the type of fold you need to achieve.

  2. Machine Setup:

    • Adjust the clamping beam to hold the material securely.
    • Set the back gauge to the desired position to ensure the material is accurately placed.
    • Configure the folding beam to the required bending angle.

  3. Loading the Material:

    • Place the material on the worktable, aligning it with the back gauge and bend line.
    • Activate the clamping beam to hold the material in place firmly.

  4. Initiating the Fold:

    • Start the folding process by engaging the control system (manual lever, hydraulic pump, or CNC program).
    • The folding beam moves upward, bending the material along the clamped line to the desired angle.

  5. Monitoring the Process:

    • Observe the folding operation to ensure it is proceeding as expected.
    • Make adjustments if necessary to achieve the correct angle and precision.

  6. Completing the Fold:

    • Once the desired angle is reached, the folding beam returns to its starting position.
    • The material is unclamped, allowing you to remove it from the machine.

  7. Inspecting the Fold:

    • Check the accuracy of the bend using measuring tools to ensure it meets the required specifications.
    • Repeat the process if additional bends or adjustments are needed.

Types of Folds and Bends

  1. Simple Bends:

    • Creates a single bend at a specified angle.
    • Commonly used for forming angles and flanges.

  2. Complex Bends:

    • Involves multiple bends to create intricate shapes and profiles.
    • Used for producing parts with more complex geometries.

  3. Hems:

    • Folds the edge of the material back onto itself to create a smooth, finished edge.
    • Often used in sheet metal applications for added strength and safety.

  4. Seams:

    • Joins two pieces of material by folding their edges together.
    • Commonly used in ductwork and metal enclosures.

Advantages of Using a Folding Machine

  1. Precision and Accuracy:

    • Provides consistent and precise bends, essential for applications requiring exact dimensions.

  2. Versatility:

    • Capable of handling various materials and thicknesses, making it suitable for a wide range of applications.

  3. Efficiency:

    • Speeds up the production process, reducing the time required to create bends and folds.

  4. Reduced Material Waste:

    • Precise folding reduces errors and material waste, leading to cost savings.

  5. Enhanced Safety:

    • Equipped with safety features to protect operators and ensure safe operation.

Maintenance Tips

  1. Regular Cleaning:

    • Keep the machine clean from dust, debris, and material scraps to ensure smooth operation.

  2. Lubrication:

    • Regularly lubricate moving parts to prevent wear and ensure efficient operation.

  3. Inspection and Repairs:

    • Conduct regular inspections to identify and address wear or damage.
    • Replace worn tools and components to maintain the machine’s performance.

  4. Calibration:

    • Periodically calibrate the machine to ensure it maintains accuracy and precision.

Conclusion

A folding machine is an essential tool in metalworking that allows for precise and efficient bending of materials into desired shapes and angles. By understanding its components, setup, and operation, you can effectively use a folding machine to enhance your production capabilities and achieve high-quality results in various applications. Regular maintenance and proper use will ensure the longevity and reliability of your folding machine.

When it comes to choosing a folding machine, it’s important to consider brands that are known for their reliability, precision, and versatility. Here’s a list of some of the most reputable folding machine brands in the industry:

1. Ras

Overview: Ras is a leading manufacturer of metal folding machines known for their innovative design and high-quality construction.

Specialty: Offers a wide range of folding machines including manual, semi-automatic, and fully automatic models.

Key Features:

  • Advanced CNC control systems
  • High precision and versatility
  • Robust and durable construction

Applications: Suitable for various industries including HVAC, metal fabrication, and automotive.

2. Jorns

Overview: Jorns is renowned for its high-performance folding machines, particularly for the sheet metal industry.

Specialty: Focuses on long folding machines that can handle large sheet sizes.

Key Features:

  • Customizable length and folding capacity
  • Automated material handling options
  • High production efficiency

Applications: Ideal for large-scale sheet metal processing, roofing, and cladding.

3. Schechtl

Overview: Schechtl is a well-established brand in the sheet metal folding industry, known for its precise and durable machines.

Specialty: Provides a range of manual, semi-automatic, and fully automated folding machines.

Key Features:

  • Simple and intuitive operation
  • High precision and flexibility
  • Long service life

Applications: Commonly used in HVAC, roofing, and general metalworking industries.

4. CIDAN Machinery

Overview: CIDAN Machinery offers a comprehensive range of folding machines, focusing on innovation and ease of use.

Specialty: Known for versatile and user-friendly folding solutions.

Key Features:

  • User-friendly CNC controls
  • Compact and space-saving designs
  • High flexibility and adaptability

Applications: Perfect for light to medium-duty metal folding, roofing, and custom sheet metal fabrication.

5. Trumpf

Overview: Trumpf is a global leader in industrial machinery, including high-precision folding machines.

Specialty: Specializes in advanced technology and automation in folding machines.

Key Features:

  • High-precision bending technology
  • Integration with Industry 4.0
  • Robust and reliable construction

Applications: Suitable for aerospace, automotive, and heavy-duty industrial applications.

6. LVD

Overview: LVD offers a variety of folding machines that are known for their precision and robust construction.

Specialty: Provides both standard and custom folding solutions.

Key Features:

  • Advanced CNC control systems
  • High accuracy and repeatability
  • Customizable configurations

Applications: Ideal for industrial metalworking, custom fabrication, and large-scale production.

7. Muratec

Overview: Muratec, also known as Murata Machinery, is known for its high-quality and innovative metal folding machines.

Specialty: Focuses on automation and advanced technology in metal folding.

Key Features:

  • Integrated automation solutions
  • High-speed folding capabilities
  • Precision and durability

Applications: Commonly used in manufacturing, aerospace, and automotive industries.

8. Accurpress

Overview: Accurpress is a leading manufacturer of metal folding machines in North America, known for their reliability and efficiency.

Specialty: Provides a wide range of machines, from entry-level to advanced folding systems.

Key Features:

  • User-friendly controls
  • High precision and efficiency
  • Strong and durable build

Applications: Suitable for general metal fabrication, HVAC, and custom metalwork.

9. Durma

Overview: Durma offers a comprehensive range of metal folding machines known for their quality and versatility.

Specialty: Focuses on cost-effective and efficient folding solutions.

Key Features:

  • Advanced technology and controls
  • High precision and performance
  • Durable and robust construction

Applications: Ideal for medium to heavy-duty metalworking, including construction and industrial manufacturing.

10. SafanDarley

Overview: SafanDarley is known for its advanced folding machines that incorporate the latest technology for precision and efficiency.

Specialty: Specializes in electric and hybrid folding machines.

Key Features:

  • Energy-efficient operation
  • High accuracy and consistency
  • Modern and ergonomic design

Applications: Suitable for aerospace, electronics, and precision metalworking.

11. MetalForming

Overview: MetalForming offers a range of high-quality folding machines tailored for the metalworking industry.

Specialty: Known for versatile and reliable folding solutions.

Key Features:

  • Flexible and customizable options
  • Advanced CNC control systems
  • Durable and high-performance

Applications: Used in HVAC, roofing, and custom metal fabrication.

12. Baileigh Industrial

Overview: Baileigh Industrial provides a wide range of metalworking machinery, including high-quality folding machines.

Specialty: Focuses on user-friendly and durable folding machines for various applications.

Key Features:

  • Easy-to-use controls
  • Sturdy construction and durability
  • Versatile and adaptable for different projects

Applications: Perfect for small to medium-sized metal fabrication shops and custom metalwork.

Conclusion

When selecting a folding machine, it’s important to consider the brand’s reputation, the machine’s features, and its suitability for your specific application. These brands are recognized for their quality, innovation, and reliability, making them excellent choices for a wide range of metal folding needs. Consulting with manufacturers or industry experts can also help you choose the best machine for your requirements.

The cost of a folding machine can vary significantly depending on several factors, including the type of machine, its features, capacity, and the brand. Below is a detailed overview of the typical price ranges for different types of folding machines and the factors that influence their cost.

1. Manual Folding Machines

Cost Range: $500 – $5,000

Factors Influencing Cost:

  • Capacity and Size: Smaller machines with lower folding capacities are generally cheaper, while larger models that can handle more substantial materials are more expensive.
  • Build Quality: Higher-quality materials and construction will increase the price.
  • Features: Basic models are less costly, whereas those with additional features like adjustable folding angles may cost more.

Applications: Ideal for small-scale operations, workshops, and DIY projects.

2. Hydraulic Folding Machines

Cost Range: $10,000 – $50,000

Factors Influencing Cost:

  • Tonnage and Capacity: Machines with higher tonnage for bending thicker materials cost more.
  • Automation Level: Machines with more automation, such as programmable settings and hydraulic adjustments, are more expensive.
  • Brand and Build Quality: Reputable brands with robust construction and advanced technology typically cost more.

Applications: Suitable for medium to large-scale production in metal fabrication, automotive, and construction industries.

3. CNC Folding Machines

Cost Range: $50,000 – $200,000+

Factors Influencing Cost:

  • Precision and Control: Machines with advanced CNC controls that offer high precision and repeatability are more expensive.
  • Customization and Options: Custom-built machines with specific features for particular applications will increase costs.
  • Capacity and Complexity: Higher capacity machines with complex folding capabilities for larger and thicker materials are at the higher end of the price range.

Applications: Ideal for high-volume, precise, and automated folding tasks in aerospace, automotive, and industrial manufacturing.

4. Electric Folding Machines

Cost Range: $5,000 – $30,000

Factors Influencing Cost:

  • Efficiency and Features: Machines with energy-efficient designs and additional features like digital controls are pricier.
  • Capacity: Machines designed for folding thicker or larger materials will cost more.
  • Brand Reputation: Established brands that offer reliability and advanced technology typically command higher prices.

Applications: Suitable for medium-scale production, light industrial use, and applications requiring energy efficiency.

5. Portable Folding Machines

Cost Range: $1,000 – $10,000

Factors Influencing Cost:

  • Portability and Size: Smaller, lightweight machines designed for ease of transport are generally cheaper.
  • Versatility: Machines that offer a range of folding capabilities and easy adjustments may cost more.
  • Build Quality: Durable materials and construction will increase the price.

Applications: Ideal for on-site work, small workshops, and applications requiring frequent machine movement.

6. Industrial Folding Machines

Cost Range: $100,000 – $500,000+

Factors Influencing Cost:

  • Capacity and Size: Large machines capable of handling extensive and thick materials are more expensive.
  • Advanced Features: Machines with integrated automation, advanced control systems, and high-speed operation will cost more.
  • Custom Specifications: Tailored solutions for specific industrial applications increase the price.

Applications: Suitable for heavy-duty industrial applications, including large-scale metal fabrication, construction, and manufacturing.

Factors Influencing the Cost of Folding Machines

  1. Machine Capacity:

    • Higher capacity machines that can handle larger and thicker materials are generally more expensive.
    • Machines designed for specific applications, such as large-format folding, will have higher costs.

  2. Precision and Control:

    • CNC machines with advanced control systems and high precision command higher prices due to their sophisticated technology and accuracy.

  3. Automation Level:

    • Machines with more automation, such as programmable controls and automated material handling, cost more due to the added convenience and efficiency.

  4. Brand and Build Quality:

    • Established brands known for quality and reliability typically cost more.
    • Higher build quality with durable materials and robust construction increases the price.

  5. Features and Options:

    • Additional features such as multi-axis control, quick-change tooling, and integrated safety systems can raise the price.
    • Customization options tailored to specific needs also add to the cost.

  6. Energy Efficiency:

    • Machines designed for energy efficiency may have higher upfront costs but offer long-term savings on operating expenses.

  7. Market Demand and Supply:

    • Prices can fluctuate based on market demand, availability of materials, and economic conditions.

Additional Costs to Consider

  1. Installation and Setup:

    • Some machines require professional installation, which can add to the overall cost.

  2. Maintenance and Service:

    • Regular maintenance, service contracts, and potential repairs should be factored into the total cost of ownership.

  3. Training and Support:

    • Training for operators and ongoing support services may also incur additional expenses.

  4. Shipping and Handling:

    • Transportation costs, especially for large or heavy machines, can add significantly to the final price.

Conclusion

The cost of a folding machine varies widely based on the type, capacity, and features of the machine. By assessing your specific needs and budget, you can choose a machine that provides the best value for your applications. Consulting with manufacturers and industry experts can help you make an informed decision and ensure you select a folding machine that meets your production requirements effectively.

Folding machines are used in various industries to bend and fold sheet metal and other materials with precision and efficiency. Here’s an overview of the most common types of folding machines, including their features, applications, and advantages.

1. Manual Folding Machines

Overview:

  • Operated by hand and typically used for smaller-scale projects or in situations where only occasional folding is needed.

Key Features:

  • Simple design with manual levers or cranks.
  • No power source required, making them portable and easy to use.
  • Suitable for light materials and low-volume production.

Applications:

  • Small workshops, DIY projects, and light metalworking tasks.

Advantages:

  • Low cost and easy to operate.
  • Portable and versatile for different locations and tasks.

2. Hydraulic Folding Machines

Overview:

  • Utilize hydraulic pressure to apply significant force for folding thicker or tougher materials.

Key Features:

  • Powerful hydraulic system for high force application.
  • Capable of handling a wide range of material thicknesses and types.
  • Often equipped with advanced controls for precise folding.

Applications:

  • Medium to large-scale metalworking, automotive, and construction industries.

Advantages:

  • High folding capacity and precision.
  • Suitable for heavy-duty applications and high-volume production.

3. CNC Folding Machines

Overview:

  • Controlled by Computer Numerical Control (CNC) systems, providing automated and precise folding operations.

Key Features:

  • Programmable settings for complex and repeatable folding patterns.
  • High precision and accuracy with advanced control systems.
  • Capable of handling a wide range of materials and thicknesses.

Applications:

  • High-volume production, aerospace, automotive, and industrial manufacturing.

Advantages:

  • High efficiency and repeatability.
  • Ideal for complex and intricate folding tasks.

4. Electric Folding Machines

Overview:

  • Use electric motors to perform folding operations, offering precise and energy-efficient performance.

Key Features:

  • Electric-driven folding beam for smooth and controlled folding.
  • Often features programmable settings for different folds.
  • Energy-efficient and quiet operation.

Applications:

  • Medium-scale production, light industrial use, and environments requiring energy efficiency.

Advantages:

  • Low energy consumption and high precision.
  • Easy to integrate with other automation systems.

5. Portable Folding Machines

Overview:

  • Compact and lightweight machines designed for portability and ease of use on-site or in small workshops.

Key Features:

  • Small footprint and easy to transport.
  • Suitable for light materials and straightforward folding tasks.
  • Often manually operated or with simple electric drives.

Applications:

  • On-site metalwork, small workshops, and DIY projects.

Advantages:

  • Portable and versatile for various locations.
  • Easy to set up and use with minimal space requirements.

6. Industrial Folding Machines

Overview:

  • Large machines designed for heavy-duty and high-capacity folding in industrial applications.

Key Features:

  • High tonnage capacity for folding thick and large materials.
  • Advanced automation and control systems.
  • Customizable configurations for specific industrial needs.

Applications:

  • Heavy-duty industrial applications, construction, and large-scale metal fabrication.

Advantages:

  • Capable of handling large volumes and heavy materials.
  • Robust and durable for continuous industrial use.

7. Panel Benders

Overview:

  • Specialized folding machines designed to bend large sheet metal panels accurately and efficiently.

Key Features:

  • Automated panel handling and folding processes.
  • High precision and consistency for large panels.
  • Suitable for a wide range of panel sizes and thicknesses.

Applications:

  • HVAC, appliance manufacturing, and large sheet metal fabrication.

Advantages:

  • Efficient handling of large panels.
  • High-speed folding with consistent quality.

8. Profile Folding Machines

Overview:

  • Designed for folding specific profiles or sections of sheet metal, such as edges and hems.

Key Features:

  • Specialized tooling for creating specific profiles.
  • High precision for detailed and complex folds.
  • Often equipped with CNC controls for precise profile creation.

Applications:

  • Roofing, cladding, and custom sheet metal fabrication.

Advantages:

  • Ideal for creating detailed profiles and edges.
  • High accuracy and repeatability for specialized tasks.

9. Box and Pan Folding Machines

Overview:

  • Designed to create boxes, pans, and other three-dimensional shapes from sheet metal.

Key Features:

  • Adjustable fingers to create various shapes and depths.
  • Capable of bending multiple sides of a box or pan.
  • Manual or powered operation for flexibility.

Applications:

  • Custom metal fabrication, HVAC ductwork, and general sheet metalwork.

Advantages:

  • Versatile for creating complex shapes and bends.
  • Suitable for low to medium volume production.

Factors to Consider When Choosing a Folding Machine

  1. Material Type and Thickness:

    • Ensure the machine can handle the types and thicknesses of materials you will work with.

  2. Production Volume:

    • Choose a machine that matches your production needs, from low-volume manual machines to high-volume CNC models.

  3. Complexity of Folds:

    • For intricate and detailed folds, consider CNC or profile folding machines.

  4. Space and Portability:

    • Consider the available space and whether you need a portable machine for on-site work.

  5. Budget and Cost:

    • Factor in the initial cost, operating expenses, and potential return on investment.

  6. Automation and Efficiency:

    • Evaluate the level of automation needed for your processes and the machine’s efficiency.

Conclusion

Selecting the right type of folding machine depends on your specific needs, including the material you will be working with, the complexity of the folds required, and your production volume. Each type of machine offers unique advantages and is suited for different applications, ensuring that you can find a folding machine that meets your exact requirements for precision, efficiency, and flexibility.

Testing folding machines is essential to ensure they perform accurately, reliably, and safely. Various testing machines and tools are used to evaluate the performance, precision, and durability of folding machines. Below are some key types of machines and equipment commonly used for testing folding machines:

1. Tensile and Compression Testing Machines

Purpose: Evaluate the material strength and the machine’s ability to fold materials without failure.

Key Features:

  • Measures tensile strength, compressive strength, and material deformation.
  • Provides data on how materials behave under stress and strain during folding.
  • Ensures the machine can handle the specified materials without causing damage or deformation.

Applications:

  • Testing the maximum load the folding machine can handle.
  • Ensuring the folded material meets strength requirements for its intended use.

2. Laser Measuring Systems

Purpose: Measure the accuracy and precision of bends and folds.

Key Features:

  • Provides high-precision measurements of angles, lengths, and positions.
  • Uses lasers to detect deviations and ensure folds meet exact specifications.
  • Capable of capturing real-time data for immediate analysis.

Applications:

  • Verifying the accuracy of folds and bends against design specifications.
  • Ensuring consistency and repeatability in high-precision folding tasks.

3. Coordinate Measuring Machines (CMM)

Purpose: Perform detailed measurements of folded parts to ensure they meet design tolerances.

Key Features:

  • Uses a probe to measure the geometry of folded parts accurately.
  • Provides 3D measurements and geometric dimensioning and tolerancing (GD&T).
  • Offers high accuracy for verifying complex shapes and folds.

Applications:

  • Inspecting folded parts for dimensional accuracy.
  • Ensuring compliance with precise design specifications in aerospace, automotive, and other industries.

4. Digital Micrometers and Calipers

Purpose: Measure the thickness and dimensions of folded materials.

Key Features:

  • Provides precise measurements of thickness, width, and depth.
  • Easy to use for quick checks and adjustments.
  • Digital readouts for accurate and repeatable measurements.

Applications:

  • Checking material thickness before and after folding.
  • Verifying that folded parts meet required dimensions.

5. Pressure and Force Sensors

Purpose: Measure the force applied during the folding process.

Key Features:

  • Monitors pressure and force to ensure the machine operates within safe and specified limits.
  • Can be integrated with the folding machine to provide real-time data.
  • Ensures consistent force application for uniform folds.

Applications:

  • Ensuring the folding machine applies the correct force to avoid damaging the material.
  • Calibrating the machine to maintain consistent folding pressure.

6. Material Hardness Testers

Purpose: Evaluate the hardness of materials before and after folding.

Key Features:

  • Measures material hardness using various scales (e.g., Rockwell, Brinell, Vickers).
  • Provides data on material resistance to deformation and wear.
  • Helps ensure materials maintain their properties after folding.

Applications:

  • Testing material hardness to ensure it is suitable for folding.
  • Verifying that folding does not adversely affect material properties.

7. Optical Profilers and Scanners

Purpose: Analyze the surface profile and geometry of folded parts.

Key Features:

  • Uses optical methods to create detailed surface maps.
  • Measures surface roughness, contour, and 3D profiles.
  • Non-contact method for detailed inspection of folds.

Applications:

  • Ensuring the surface quality of folded parts meets specifications.
  • Detecting surface defects and irregularities in folded materials.

8. Strain Gauges

Purpose: Measure the strain on materials during the folding process.

Key Features:

  • Attaches to the material to monitor strain and deformation.
  • Provides data on how materials respond to folding stress.
  • Helps identify potential weak points and areas of excessive strain.

Applications:

  • Monitoring material behavior during folding.
  • Ensuring materials can withstand the folding process without failure.

9. Dynamic Load Testing Machines

Purpose: Evaluate the folding machine’s performance under dynamic loading conditions.

Key Features:

  • Simulates real-world loading scenarios on the folding machine.
  • Tests the machine’s response to varying loads and stresses.
  • Ensures the machine can handle dynamic and fluctuating loads during operation.

Applications:

  • Testing the machine’s durability and reliability under operational conditions.
  • Verifying that the machine can maintain performance under varying loads.

10. Thermal Cameras

Purpose: Monitor the temperature distribution on the folding machine and materials.

Key Features:

  • Uses infrared technology to detect temperature changes.
  • Identifies hot spots and areas of heat buildup.
  • Ensures the machine operates within safe temperature ranges.

Applications:

  • Monitoring heat generation during folding to prevent overheating.
  • Ensuring materials are not subjected to excessive heat that could affect their properties.

11. Sound Level Meters

Purpose: Measure the noise levels generated by the folding machine.

Key Features:

  • Provides accurate readings of sound pressure levels.
  • Helps identify sources of noise and potential mechanical issues.
  • Ensures the machine operates within acceptable noise levels for safety and comfort.

Applications:

  • Ensuring the folding machine complies with noise regulations.
  • Identifying and addressing mechanical issues that cause excessive noise.

12. Automation and Control System Testers

Purpose: Evaluate the performance of the folding machine’s automation and control systems.

Key Features:

  • Tests the accuracy and reliability of CNC and other automated controls.
  • Verifies the integration of sensors, actuators, and control software.
  • Ensures the machine’s automation system performs as expected.

Applications:

  • Testing the reliability and precision of automated folding sequences.
  • Verifying the functionality of safety and control systems.

Conclusion

Testing folding machines involves a variety of specialized equipment to ensure they perform accurately, safely, and reliably. By using these machines and tools, manufacturers can verify the quality of their folding machines, optimize their performance, and ensure they meet the necessary standards and specifications. Regular testing and maintenance help maintain the machine’s efficiency and extend its operational life, providing reliable and high-quality folding for various applications.

Folding machines offer numerous benefits that make them invaluable in various manufacturing and metalworking industries. Here’s a detailed look at the key advantages of using folding machines:

1. High Precision and Accuracy

  • Consistent Quality: Folding machines ensure uniform and accurate bends, resulting in high-quality finished products.
  • Precise Control: Advanced machines, particularly CNC models, provide exact control over the folding process, maintaining tight tolerances and repeatability.

2. Increased Efficiency and Productivity

  • Faster Production: Automated and CNC folding machines can perform complex folds quickly, significantly reducing production times.
  • Reduced Setup Time: Machines with programmable settings and quick-change tooling minimize downtime between different folding tasks.

3. Versatility and Flexibility

  • Multiple Applications: Folding machines can handle a variety of materials, including steel, aluminum, and other metals, making them suitable for diverse applications.
  • Adaptability: Many machines offer adjustable settings and interchangeable tooling to accommodate different folding requirements and materials.

4. Cost-Effective

  • Lower Labor Costs: Automation and ease of use reduce the need for manual labor, lowering overall production costs.
  • Reduced Material Waste: Precise folding reduces errors and material waste, leading to cost savings in materials and improved efficiency.

5. Improved Safety

  • Built-In Safety Features: Modern folding machines come with safety mechanisms such as emergency stop buttons, safety guards, and light curtains to protect operators.
  • Less Manual Handling: Automation reduces the need for manual material handling, lowering the risk of injury and accidents.

6. Enhanced Durability and Longevity

  • Robust Construction: High-quality folding machines are built to withstand heavy-duty use and offer long service life, providing reliable performance over time.
  • Low Maintenance: Many machines are designed for easy maintenance, reducing downtime and ensuring continuous operation.

7. Energy Efficiency

  • Lower Energy Consumption: Machines with efficient motors and power systems reduce energy usage, leading to lower operational costs.
  • Eco-Friendly Options: Some folding machines are designed to minimize environmental impact, using less energy and producing fewer emissions.

8. High Capacity and Capability

  • Handling Large Workpieces: Industrial folding machines can handle large sheets of metal, making them ideal for large-scale projects in industries like construction and automotive.
  • Heavy-Duty Folding: Capable of bending thick and tough materials, making them suitable for heavy-duty applications.

9. Ease of Use and Automation

  • User-Friendly Controls: Many machines feature intuitive interfaces and controls that simplify operation and reduce training time.
  • Programmable Settings: CNC folding machines allow for programmable folding sequences, enabling easy setup and execution of complex tasks.

10. Consistent Performance

  • Reliable Operation: High-quality folding machines provide consistent performance, ensuring reliability and minimizing the risk of production downtime.
  • Reduced Error Rates: Automated systems reduce human error, leading to fewer defects and higher product quality.

11. Customization and Specialization

  • Custom Tooling: Many machines offer the ability to use specialized tooling for specific tasks, enhancing their versatility for different applications.
  • Tailored Solutions: Machines can be customized to meet specific industry requirements, providing tailored solutions for unique folding needs.

12. Integration with Other Systems

  • Seamless Workflow: Folding machines can be integrated with other production equipment and systems, facilitating a smooth and efficient workflow.
  • Compatibility with CAD/CAM: Many machines support integration with CAD/CAM software, allowing for precise design and manufacturing.

13. Space Efficiency

  • Compact Designs: Some folding machines are designed to occupy minimal space, making them suitable for workshops with limited room.
  • Portable Options: Portable folding machines can be easily transported and used on-site, offering flexibility in various locations.

Applications of Folding Machines

  1. HVAC Industry:

    • Producing ducts, fittings, and enclosures for heating, ventilation, and air conditioning systems.

  2. Automotive Manufacturing:

    • Creating body panels, brackets, and other components for vehicles.

  3. Aerospace Industry:

    • Manufacturing precise parts and assemblies required for aircraft and aerospace applications.

  4. Construction and Metal Fabrication:

    • Fabricating custom metal components for construction and general metalworking.

  5. Electrical Enclosures:

    • Producing metal boxes, panels, and enclosures for electrical equipment.

Conclusion

Folding machines provide a multitude of advantages that enhance productivity, quality, and cost-effectiveness in metalworking and manufacturing processes. Their ability to deliver precise, efficient, and versatile folding solutions makes them essential for various industrial applications. Whether for small-scale workshops or large industrial operations, investing in a high-quality folding machine can lead to significant improvements in production capabilities and overall operational efficiency.

Using a folding machine can streamline many metalworking processes, but it can also present certain challenges. Understanding these common issues and their causes can help prevent problems and ensure efficient operation. Here are some of the most frequently encountered issues when using folding machines, along with potential solutions:

1. Material Slippage

Symptoms:

  • The material moves or shifts during folding, leading to inaccurate bends.
  • Inconsistent fold quality and dimensions.

Causes:

  • Insufficient Clamping Force: The clamping beam does not hold the material tightly enough.
  • Improper Material Placement: The material is not aligned properly before clamping.

Solutions:

  • Increase the clamping force to hold the material more securely.
  • Ensure that the material is correctly positioned and aligned with the back gauge before clamping.

2. Inaccurate Folds

Symptoms:

  • Folds are not at the correct angle or do not match specified dimensions.
  • Inconsistent results in repeated folds.

Causes:

  • Incorrect Machine Settings: The folding angle or back gauge settings are not properly configured.
  • Tool Wear: Worn-out tools or dies can affect the precision of the folds.

Solutions:

  • Double-check and adjust the machine settings for the correct angles and positions.
  • Regularly inspect and replace worn tools and dies to maintain accuracy.

3. Material Cracking or Breaking

Symptoms:

  • The material cracks or breaks during folding, especially along the bend lines.
  • Visible damage and weakened structural integrity in the folded parts.

Causes:

  • Material Fatigue: The material is too brittle or has been overworked.
  • Excessive Folding Force: The machine applies too much force, exceeding the material’s capacity to bend.

Solutions:

  • Use materials with suitable ductility for folding.
  • Adjust the folding force to an appropriate level for the material being used.

4. Inconsistent Bending Force

Symptoms:

  • Variations in the force applied during folding, leading to uneven folds.
  • Inconsistent fold quality across different parts.

Causes:

  • Hydraulic or Mechanical Issues: Problems with the hydraulic system or mechanical components can lead to fluctuations in force.
  • Uneven Tooling: Worn or uneven tools and dies can cause inconsistent force application.

Solutions:

  • Inspect and maintain hydraulic systems and mechanical components regularly.
  • Ensure tools and dies are evenly maintained and replaced when worn.

5. Machine Vibration and Noise

Symptoms:

  • Excessive vibration or noise during operation.
  • Reduced fold quality and potential damage to the machine or material.

Causes:

  • Loose Components: Parts of the machine are not securely fastened.
  • Mechanical Wear: Worn bearings, gears, or other components can cause noise and vibration.

Solutions:

  • Tighten any loose components and regularly check for secure connections.
  • Inspect and replace worn mechanical parts to reduce noise and vibration.

6. Electrical or Control System Issues

Symptoms:

  • The machine fails to start or operate correctly.
  • Erratic behavior in the control systems, such as unexpected stops or changes in settings.

Causes:

  • Faulty Electrical Components: Problems with wiring, switches, or motors.
  • Control System Errors: Issues with the CNC or programmable control system.

Solutions:

  • Conduct regular electrical inspections and replace faulty components.
  • Ensure the control systems are properly calibrated and free from software errors.

7. Tooling Misalignment

Symptoms:

  • Bends and folds are not straight or are uneven.
  • Difficulty in achieving accurate folds.

Causes:

  • Incorrect Tooling Setup: Tools and dies are not properly aligned.
  • Wear and Tear: Worn or damaged tooling can cause misalignment.

Solutions:

  • Properly align and secure all tools and dies before use.
  • Regularly inspect and maintain tooling to ensure proper alignment and condition.

8. Overheating

Symptoms:

  • The machine or materials become excessively hot during operation.
  • Reduced efficiency and potential damage to the machine or materials.

Causes:

  • Extended Operation: Prolonged use without adequate cooling.
  • Poor Ventilation: Lack of proper airflow around the machine.

Solutions:

  • Ensure the machine has adequate cooling and avoid extended continuous operation without breaks.
  • Improve ventilation around the machine to dissipate heat effectively.

9. Material Surface Damage

Symptoms:

  • Scratches, dents, or marks on the surface of the folded material.
  • Reduced aesthetic quality and potential weakening of the material.

Causes:

  • Improper Handling: Rough handling or incorrect material placement.
  • Tool Surface Issues: Rough or damaged tooling surfaces causing scratches.

Solutions:

  • Handle materials carefully and use protective padding if necessary.
  • Regularly inspect and maintain tooling surfaces to keep them smooth and free from damage.

10. Software and Programming Errors

Symptoms:

  • Incorrect fold sequences or angles in automated operations.
  • Unexpected machine behavior or folding errors.

Causes:

  • Incorrect Programming: Errors in the CNC or automated folding program.
  • Software Glitches: Bugs or issues in the machine’s control software.

Solutions:

  • Verify and correct the programming for accuracy.
  • Update and maintain control software to ensure it operates correctly.

11. Maintenance Neglect

Symptoms:

  • Increased machine downtime and frequent breakdowns.
  • Decreased folding accuracy and efficiency over time.

Causes:

  • Lack of Regular Maintenance: Skipping routine inspections and maintenance tasks.
  • Delayed Repairs: Postponing necessary repairs leads to compounding issues.

Solutions:

  • Follow a regular maintenance schedule, including inspections, cleaning, and lubrication.
  • Address repair needs promptly to prevent further damage and operational issues.

Conclusion

Understanding and addressing these common issues can help maintain the efficiency, precision, and longevity of your folding machine. Regular maintenance, proper operation, and timely repairs are crucial to ensuring that your folding machine performs reliably and produces high-quality results in various metalworking and manufacturing applications.
