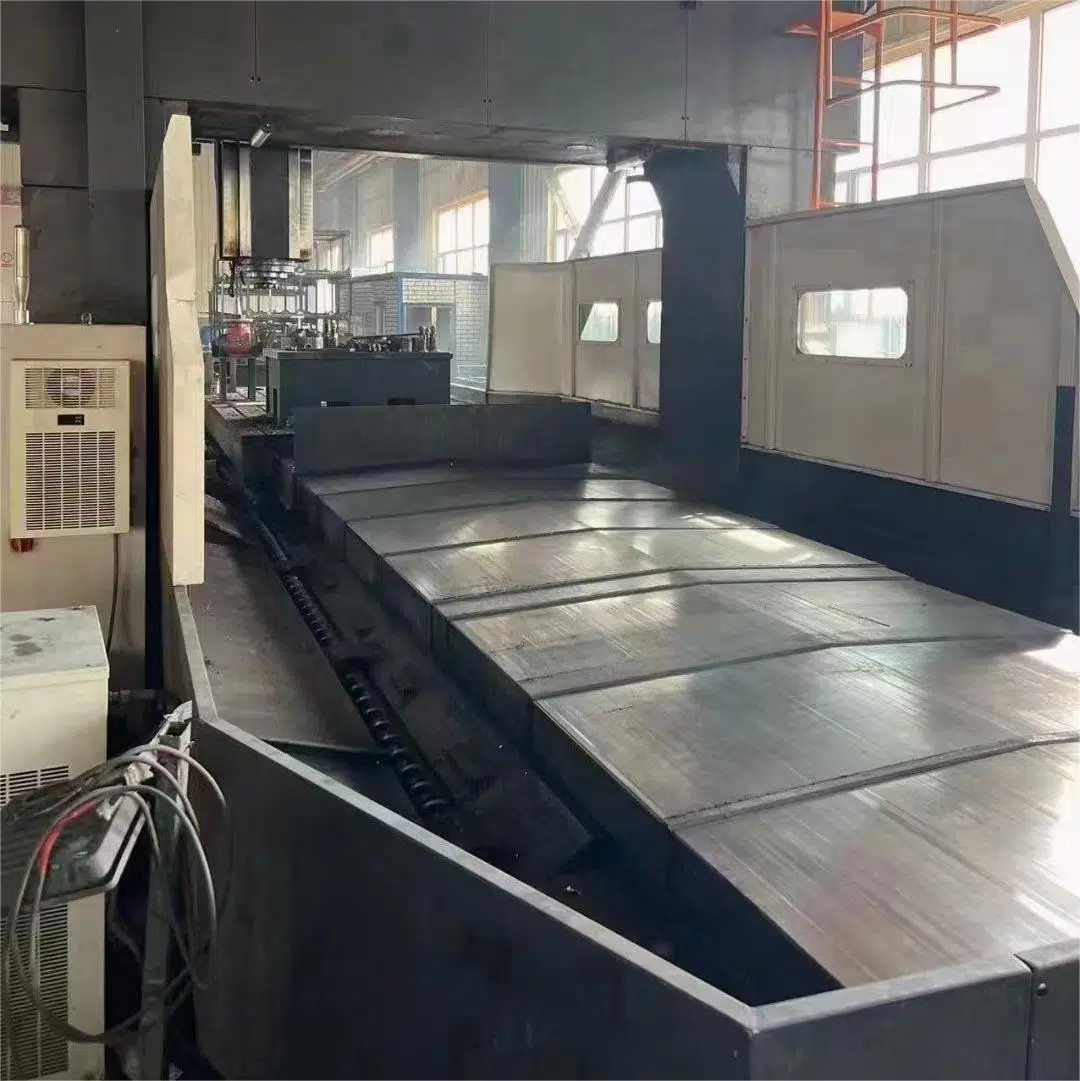

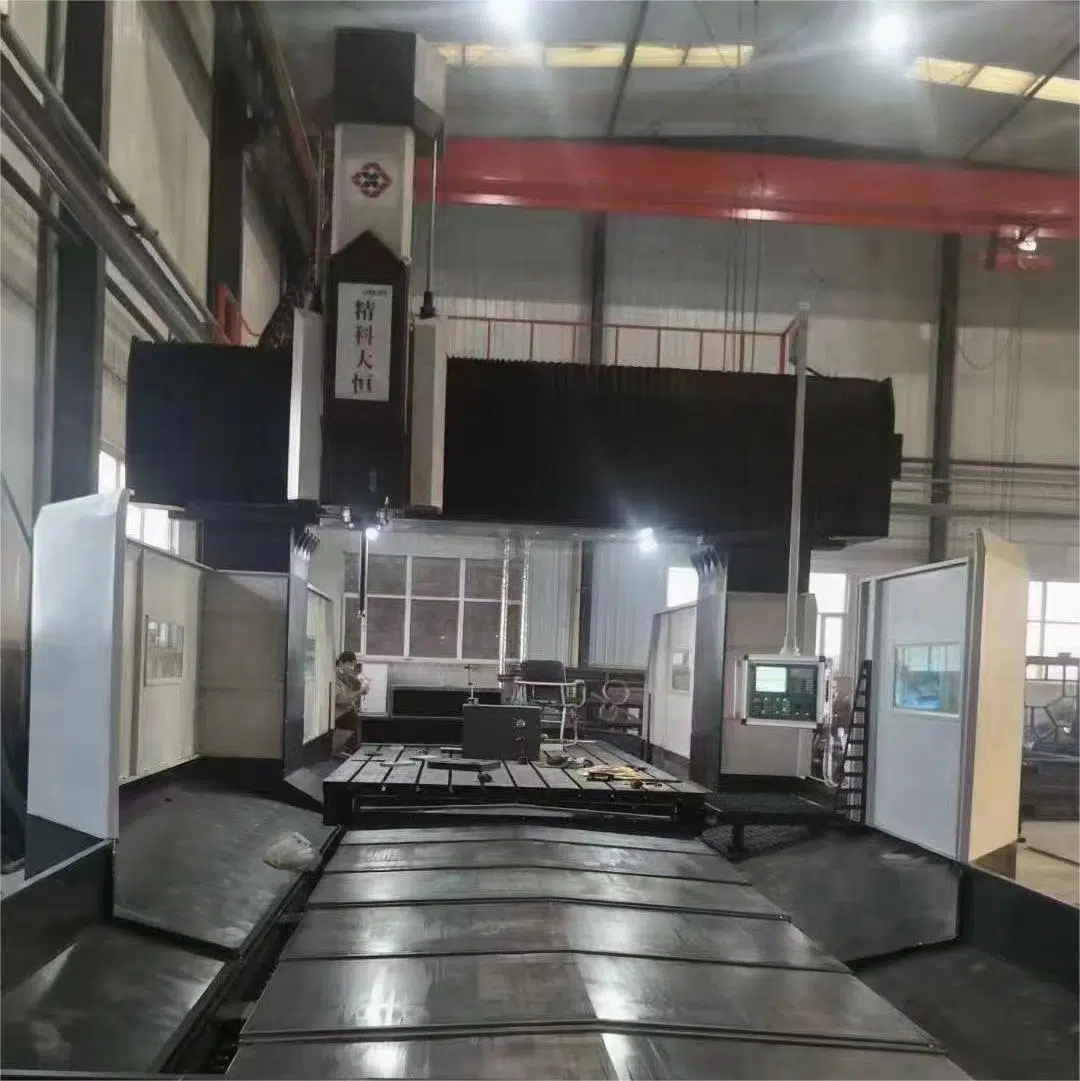

Używane wysokiej jakości centrum obróbcze bramowe VIGERT DHXK3205 na sprzedaż

A High-Quality Gantry Machining Center is a sophisticated industrial machine designed for precision machining of complex and large workpieces. It combines the attributes of a gantry structure, which provides stability and precision, with advanced CNC technology for accurate and efficient manufacturing processes. This type of machining center is used in industries such as aerospace, automotive, mold making, and high-precision parts production.

Here’s a detailed breakdown of the features and components commonly found in a High-Quality Precision Gantry Machining Center:

1. Struktura bramowa: High-Quality Gantry Machining Center,The gantry design features a bridge-like structure with moving X and Y axes. This design provides excellent stability and rigidity, enabling precise machining of large workpieces.
2. Stół do pracy: High-Quality Gantry Machining Center，The worktable is designed to support heavy workpieces and can move along the X and Y axes, allowing for the positioning of the workpiece under the cutting tool.
3. Zmieniacz narzędzi: A tool changer holds a range of cutting tools, such as end mills, drills, and inserts. It enables automatic tool changes based on the machining program, reducing downtime and increasing efficiency.
4. Wrzeciono: The spindle holds the cutting tool and provides rotational power for machining operations. It can operate at various speeds and can be equipped with features like high-speed capabilities or multiple attachments.
5. Ruch osi: The machine typically has at least three axes:
   • X-Axis: Horizontal movement along the gantry structure.
   • Y-Axis: Horizontal movement along the bridge or crossbeam of the gantry.
   • Z-Axis: Vertical movement of the spindle and cutting tool.
6. System sterowania CNC: The CNC control system is the brain of the machine. Operators input machining instructions, dimensions, and parameters through software. The control system translates these instructions into precise movements of the worktable and tools.
7. Accuracy and Repeatability: High-quality gantry machining centers are engineered for exceptional accuracy and repeatability. They incorporate features like linear scales, temperature compensation, and fine-tuned motion control to achieve tight tolerances.
8. Układ chłodzenia: A coolant system is used to keep the cutting area cool, lubricate the cutting process, and evacuate chips from the cutting zone.
9. Załącznik: An enclosed design contains coolant, chips, and noise, enhancing operator safety and maintaining a clean working environment.
10. Advanced Software: Some machines come with advanced software packages for CAD/CAM integration, simulation, and optimization of machining processes.
11. Measuring and Inspection: Some high-quality gantry machining centers include measuring and inspection systems for in-process quality control and adjustments.
