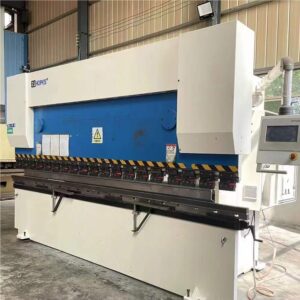

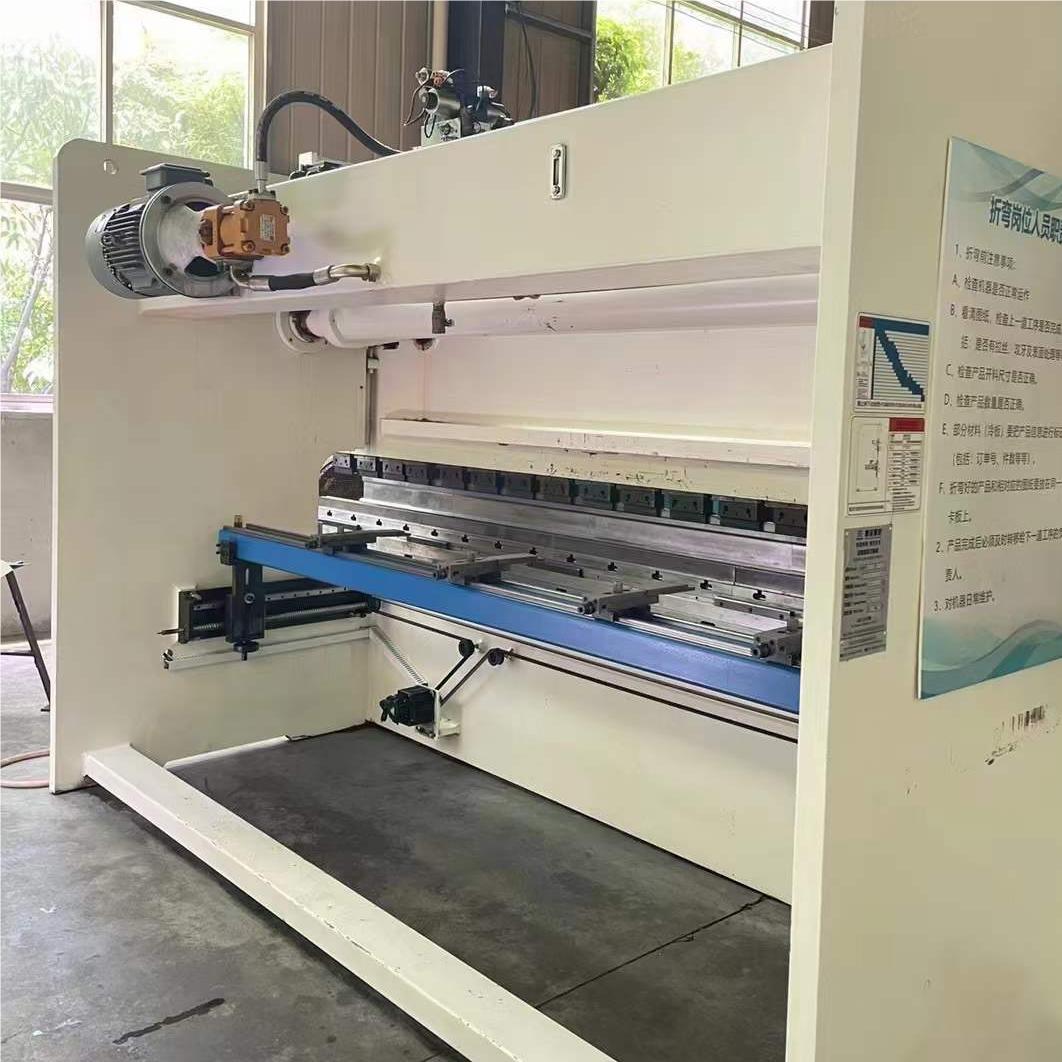

Used VIGERT 160T4000 TP10 Press Brake For Sale

A press brake is a versatile machine tool used in metalworking and fabrication processes. It’s designed to bend sheet metal into various shapes and angles. Here’s a breakdown of its components and operation:VIGERT 160T4000 TP10 Press Brake

1. Rama: The frame provides the structural support for the press brake. It’s typically made of welded steel or cast iron to withstand the high forces generated during bending.VIGERT 160T4000 TP10 Press Brake
2. Ram (górna belka): The ram is the upper part of the press brake that holds the punch. It moves vertically to apply force to the sheet metal, causing it to bend against the die.
3. Łóżko (dolna belka)Łoże to nieruchoma część prasy krawędziowej, na której zamontowana jest matryca. Zapewnia płaską powierzchnię, do której dociskana jest blacha podczas gięcia.
4. Dziurkacz: The punch is the tool mounted on the ram that comes into contact with the sheet metal. It applies force to the metal, causing it to deform and bend.VIGERT 160T4000 TP10 Press Brake
5. Umierać: The die is mounted on the bed and provides the counteracting force against the punch. It determines the final shape and angle of the bend.VIGERT 160T4000 TP10 Press Brake
6. Tylny ogranicznikNiektóre prasy krawędziowe są wyposażone w zderzak tylny, czyli urządzenie pomagające w precyzyjnym ustawieniu blachy do gięcia. Można go regulować ręcznie lub sterować CNC, aby uzyskać precyzyjne pozycjonowanie.
7. System hydrauliczny: Press brakes often use hydraulic systems to generate the force needed for bending. Hydraulic cylinders apply pressure to the ram, allowing for controlled and precise bending operations.

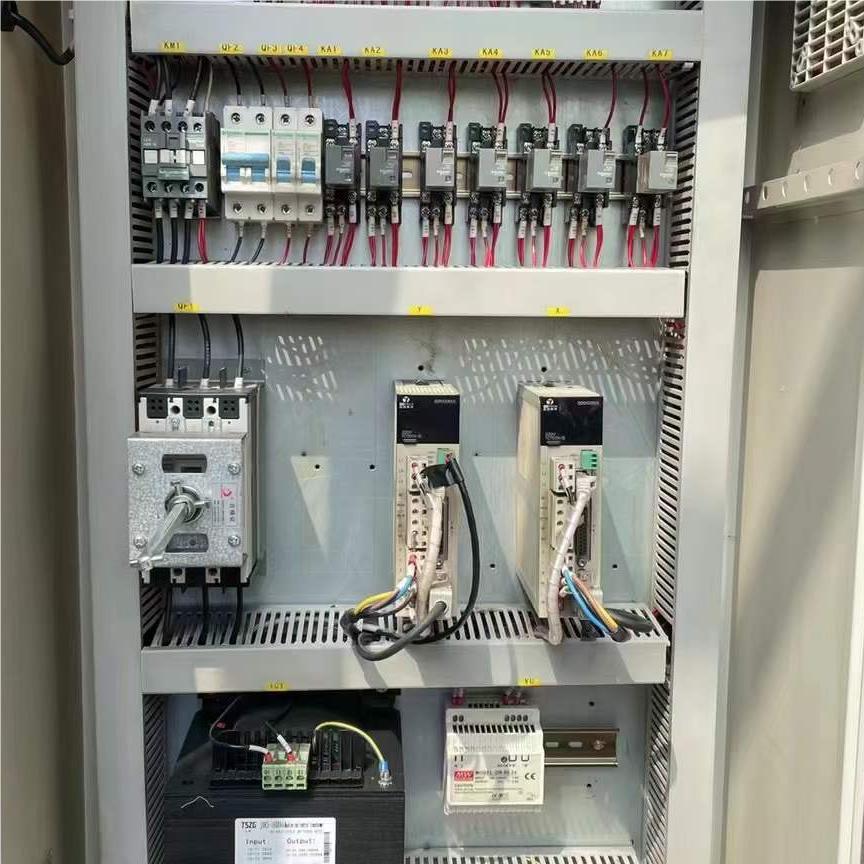

8. Panel sterowania: Modern press brakes are equipped with electronic control panels that allow operators to input bending parameters such as bend angle, bend length, and material thickness. CNC (Computer Numerical Control) press brakes offer advanced automation and programming capabilities for complex bending operations.

The operation of a press brake involves clamping the sheet metal between the punch and die and then activating the hydraulic system to apply force, gradually bending the metal to the desired angle. Skilled operators use a combination of experience and precision control to produce accurate bends according to engineering specifications.
