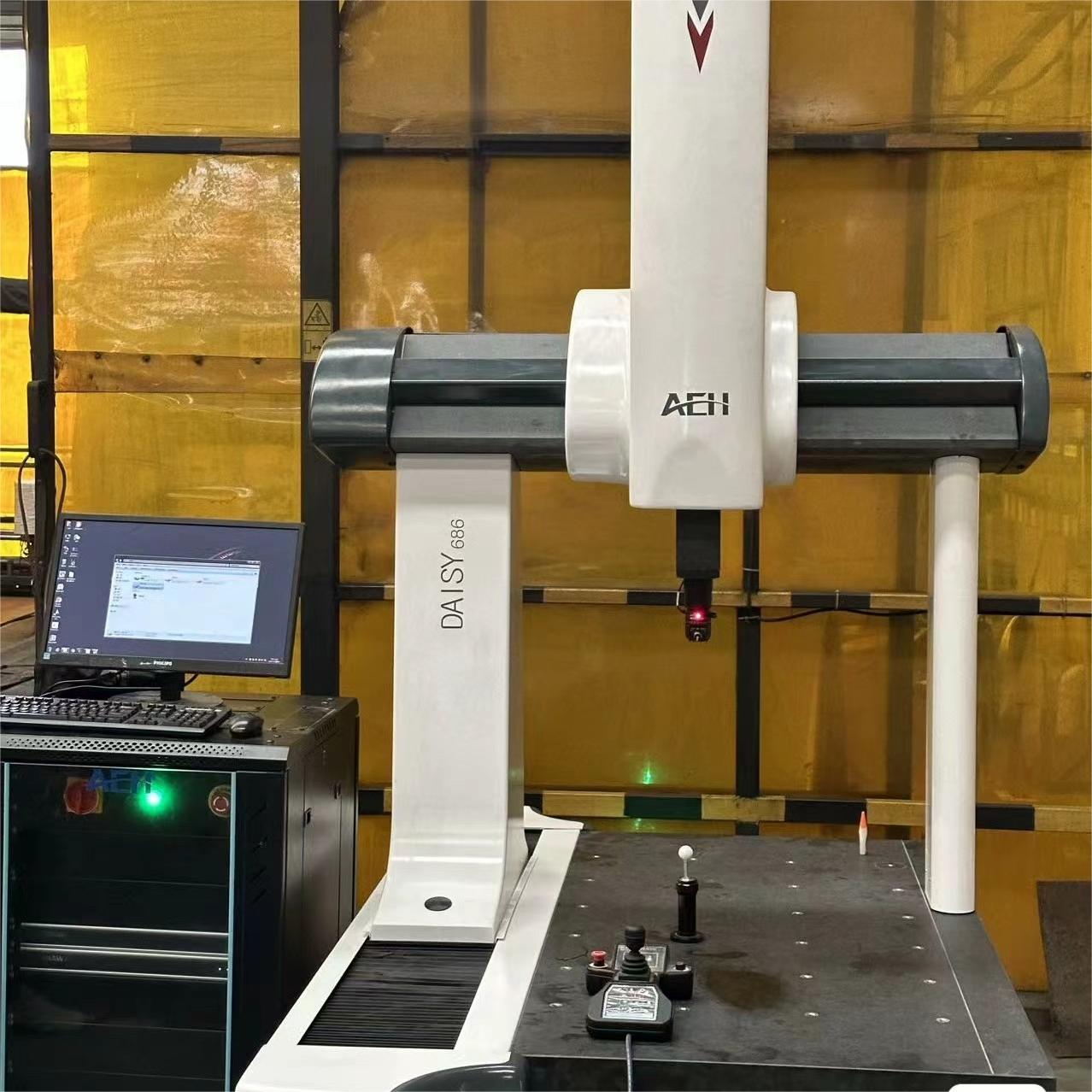

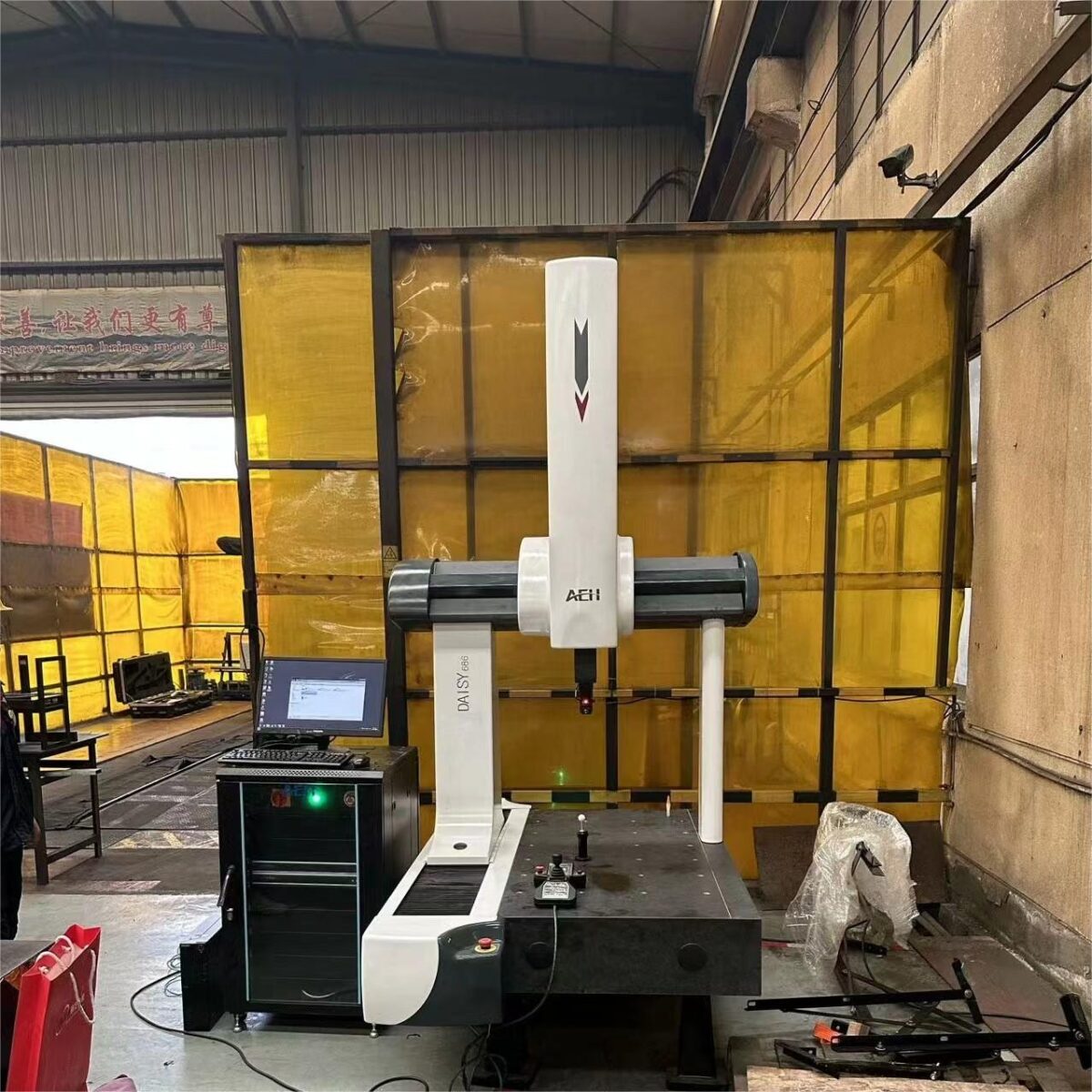

Used AEH Daisy686 Measuring Machine For Sale

The AEH Daisy686 coordinate measuring machine may be a precision instrument designed to measure the physical geometric characteristics of an object. It usually consists of the following components:

1. Frame: The sturdy base and frame of the AEH Daisy686 CMM provide stability and support for the measurement system.
2. Moving Bridge or Arm: This assembly moves along three axes (X, Y and Z) to precisely position the measurement probe on the surface of the object being measured.
3. Probe: A probe is a sensor that comes into contact with the surface of an object for measurement. There are many types of probes including mechanical contact probes, laser probes or optical probes.
4. Control System: The AEH Daisy686 CMM control system manages the movement of the measuring arm or measuring bridge and collects data from the probe. It may include software for programming measurement routines and analyzing data.
5. Software: The software allows the operator to program measurement routines, visualize measurement results and generate reports. It may also include CAD (computer-aided design) comparison and statistical analysis capabilities.
6. Measurement Table or Fixture: This is where the object being measured is safely placed during the measurement process. It may include fixtures or clamps that hold the object in the correct position.
7. Accuracy and Precision Specifications: CMMs are characterized by accuracy and precision, often specified in terms of measurement uncertainty and repeatability.
8. Optional Features: Some CMMs may include additional features such as automatic probe changing systems, temperature compensation, or scanning capabilities for capturing complex surface shapes.

It is important to note that since there are no specific details about the AEH Daisy686 CMM model, this description is based on general features common to most CMMs. If you have any additional questions or need help with other topics, please feel free to ask!
