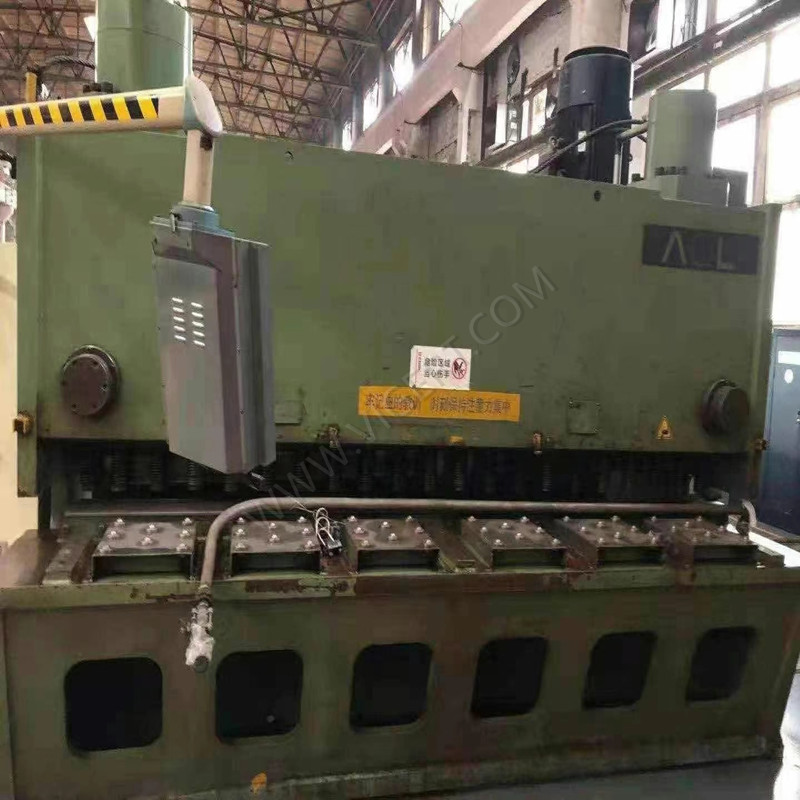

Used ACL 20×3200 Hydraulic Guillotine Shearing Machine For Sale

ACL Used Hydraulic Guillotine Shearing Machine 20×3200

Features for ACL Used Hydraulic Guillotine Shearing Machine

This machine adopts a full steel welding structure with enough hardness and rigidity. It also has been heated processed and highly frequently vibrated for Used Hydraulic Guillotine Shearing Machine.
Adopting floor boring-milling machine for German for guaranteeing the precision
Structure of machine: guillotine
Hydraulic system adopts integral logic loop controlled by order valve with stability, low noise, and easy maintenance and keep the normal oil-temperature and working by the fixed cooled unit.6.5 Protecting Function of Clamping.
Hydraulic system from famous brand in China controlling the blade’s moving
Two High rigidity rectangle blades with four available edges
Plate support table will roller bearing and front support for easy material feed in Pressing unit adopts integral loop and parallel pressing cylinder fit with rubber washer. When the plate is uneven, it can be adjusted to press the plate tightly. The pressure also can be adjusted according to the plate’s material and thickness by protecting the plate’s surface.
Handle wheel for adjusting the blade clearance in manual with easy operation and flexibility.
Timing relay controlling the stroke.
According to the width of the plate, the timing relay adjusts the stroke time for saving time and improving shearing efficiency.

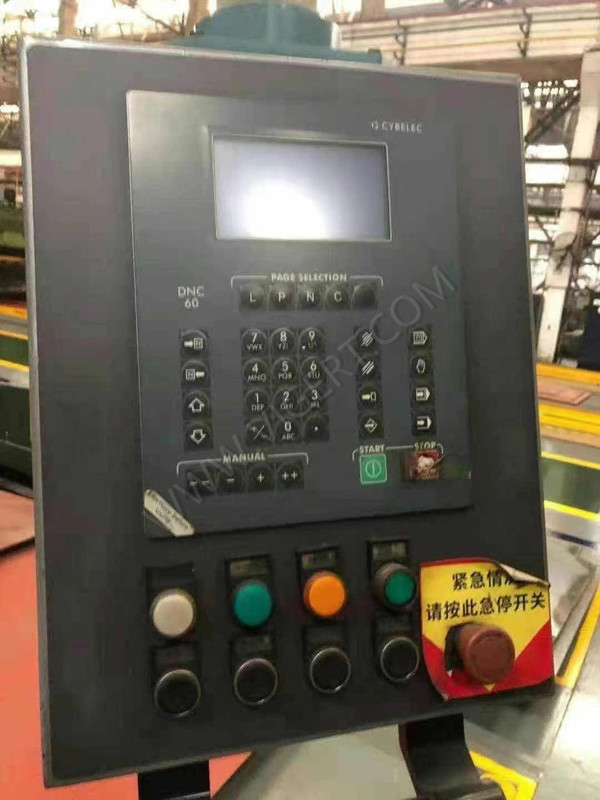

Counter controlling the amount of shearing with adjustment and memory functions, and forward, return, and fine-adjusting functions
Light beam shadow overlapping the drawn line no the plate
The shearing angle can be adjusted in a set scope by hydraulic electrical control. Angle adjustment can improve shearing quality when shearing thin plates or can increase the workable thickness. When shear plates are in narrow width, the shearing angle should be adjusted smaller to reduce the distortion of material.
Electric back gauge with manual fine adjustment and mechanical digital display.

Company information

VIGERT company mainly cooperates with large factories, fixed recovery of used bending machines, second-hand swing beam Used Hydraulic Guillotine Shearing Machine, used hydraulic presses and many other machinery and equipment, professional engineers to test and debug the machine, qualified and then maintenance and repair of the machine, and finally provide customers with high-quality used machines no less than brand new machines.

VIGERT company has a large business scope and wide coverage, advocating win-win cooperation, turning waste into treasure, and making idle assets move, is your and my eternal pursuit.

After Sales Service for Used Hydraulic Guillotine Shearing Machine

1. We will offer a one-year warranty for all VIGERT used machines so that customers will have no worry about the quality and maintenance.
2. VIGERT can offer the renewal service for all machines, it can help customers to remove the worry about the import procedures.
3. VIGERT has an experienced technical support team to help customers solve any machines’ issues in a short time.
4. VIGERT has been established for more than 15 years and served more than 10K customers all over the world. We have won the trust of all of them.
