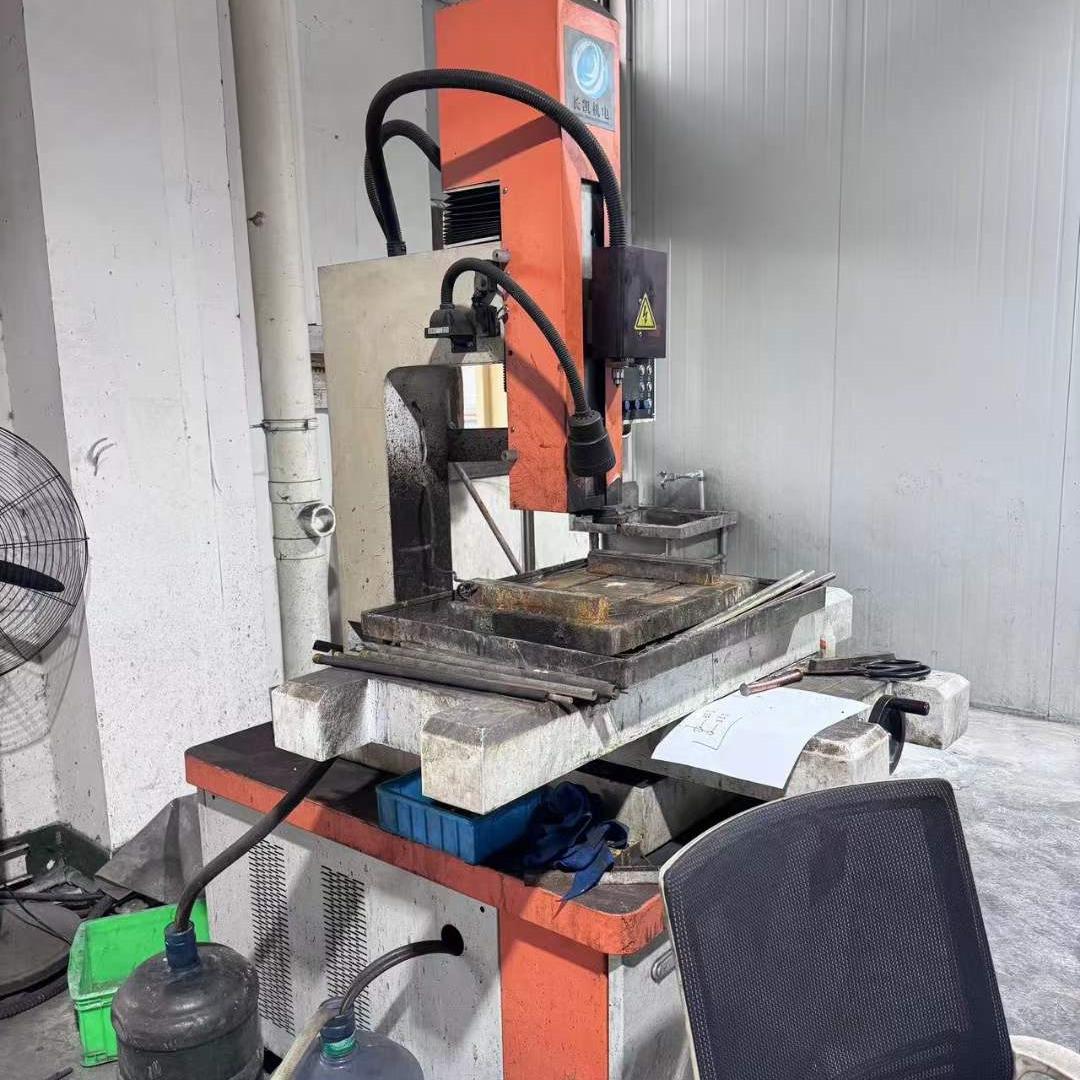

Used VIGERT Spark Erosion CK340 For Sale

Used VIGERT Spark Erosion CK340 is a non-traditional machining process used to shape and fabricate metal workpieces with high precision. Instead of relying on direct physical contact between the cutting tool and the workpiece, EDM utilizes electrical discharges to erode material from the workpiece.

Here’s a breakdown of the Used VIGERT Spark Erosion CK340 process:

1. Principle: Used VIGERT Spark Erosion CK340 works on the principle of electrical discharge between an electrode (tool) and the workpiece, immersed in a dielectric fluid (usually deionized water). When a voltage difference is applied between the electrode and the workpiece, an electrical spark jumps across the gap, creating intense heat that melts or vaporizes tiny portions of the workpiece material.
2. Types of Used VIGERT Spark Erosion CK340:
   • Wire EDM (WEDM): In wire EDM, a thin wire electrode is fed through the workpiece, creating the desired shape. It’s suitable for cutting intricate shapes with tight tolerances.
   • Sinker EDM (also known as Ram EDM): In sinker EDM, the electrode (often shaped like the desired cavity) is plunged into the workpiece, creating a cavity that mirrors the electrode shape.
   • Hole Drilling EDM: Used for creating small, precise holes in the workpiece, typically in hard or difficult-to-machine materials.
3. Advantages:
   • Ability to machine intricate shapes and contours with high precision.
   • Capable of machining very hard materials, including hardened steels and exotic alloys.
   • Minimal tool wear compared to traditional machining methods.
   • Suitable for small-scale production and prototyping.
4. Applications:
   • Aerospace and automotive industries for manufacturing precision components.
   • Tool and die making for creating molds, dies, and extrusion tools.
   • Medical device manufacturing for producing implants, surgical instruments, and intricate components.
   • Electronics industry for making fine features on circuit boards and microcomponents.
5. Considerations:
   • EDM is a slower process compared to conventional machining methods, so it’s often used for tasks requiring high precision rather than high volume.
   • The choice between wire EDM and sinker EDM depends on factors such as the desired geometry of the part, material type, and required surface finish.
   • EDM produces a heat-affected zone (HAZ) around the machined area, which may require additional post-processing steps to achieve the desired surface finish and dimensional accuracy.

Overall, Used VIGERT Spark Erosion CK340 is a versatile machining process widely used in industries where precision, complexity, and material hardness are critical factors.
